Summary of Contents for MICODUS MV740

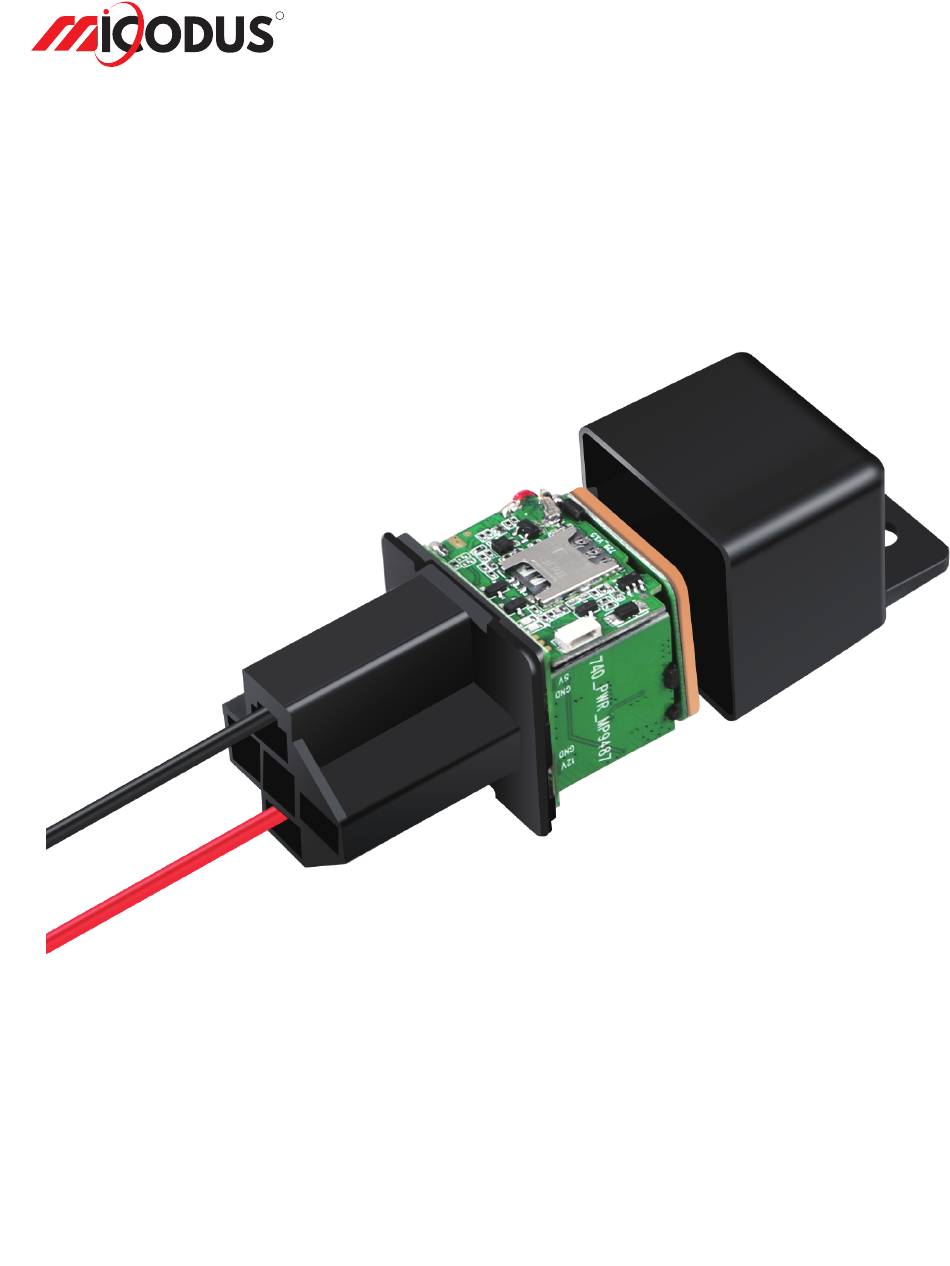

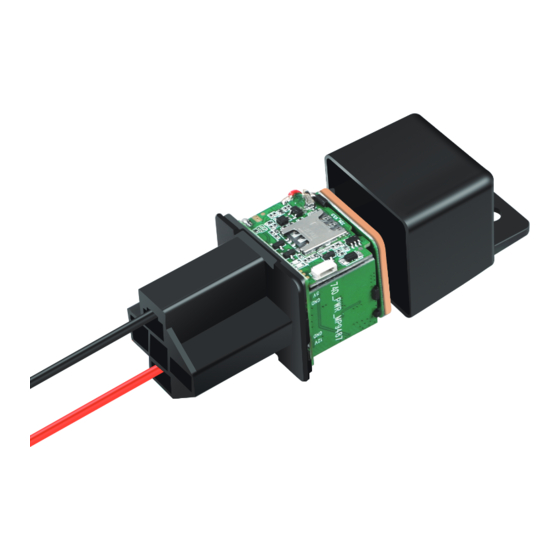

- Page 1 MV740 User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2022 MiCODUS | All Rights Reserved...
-
Page 2: Main Features
Alarm Playback Power Lifetime Free Overspeed Tow Alarm Geo-fence Disconnect Alarm Tracking Platform Alarm 2.Specifications Model MV740 Device Information Weight Dimensions 31mm(L) * 31mm(W) * 57mm(H) Working Voltage DC 9-90V Working Current <30 mA Sleep Current <15 uA Working Parameters Battery Capacity 3.7V 80mAh Lion Polymer battery... - Page 3 3.How to manage the tracker to get online? Step 1 Normal SIM Please get a suitable SIM card from your local place. The SIM card must meet below points: It must be compatible with the 2G GSM network Please enable SMS, call, internet data traffic of the SIM card Enable the caller ID display feature Remove the PIN code Use Nano size SIM card for the tracker...
- Page 4 Wiring Step 3 NOTE : After installed SIM card correctly , it is very important to connect the tracker with external power no Car Battery less than 12V for power supply before operation! 9-90V DC Configure APN Step 4 Please get the exact correct APN name from local SIM card provider.Take the tracker to a good signal place for operation and configure the APN for it as below: SMS Command Reply...
-
Page 5: Package Content
Indicator status description Step 5 State Event State Searching for network Solid GSM LED (GREEN) Network has been registered Flash every 1 second GPS is in fixing Solid GPS LED (Blue) GPS has fixed Flash every 1 second Device is working but stopped more than 5min ALL LED Device has not been turn on ALL LED TURN OFF... -
Page 6: Functions Explanation
Please follow with the quick user guide carefully! a. Vibration Alert: For example: This vibration alert function just work under stationary MV740 status. How to use this function: admin123456 0086134******** * Set admin number by this sms command: admin123456+space+mobile number with country code... -
Page 7: Troubleshooting
6. Installation Recomendation Under Front Dash Inside Door Pedal Inside the head light Inside the taillight component Inside the front cover or plastic Under the pedal 1) The decice should face up to the sky. 2) Metal therma barrier of heating layer of the windshield affects the signal. 7. - Page 8 Micodus tracking platform's IP: 47.254.77.28; IP&Port +space+port Port: 7700 SZCS,123456,DOMAIN=d.micodus. MiCODUS server domain: d.micodus.net, Port: 7700 Domain net:7700 V:A: Indicates the device has GPS signal; V:V: Indicates the device doesn't have GPS signal; 2019-11-26 10:17:01: Date and Time; S: 000km/h: Speed of the tracker Bat:5: Battery level of the backup battery of the tracker, it has 6 levels: "6"...
- Page 9 Functions Command Format Explanation param1 firmware version、ID、IP、port、domain、APN Parameter Query admin number, SOS number,move distance, overspeed, param2 auto arm time, auto disarm time, alarm interval BAT:10 GPRS: GSM: GPS:A/V ACC:on/off oil:on/off Status status power:on/off 111 or SF Disarm 000 or CF Movement Alarm move+alarm distance Movement alarm distance scope: 100-1000m...
-
Page 10: Any Questions
9. Any Questions? E-mail: support@micodus.com Skype: MiCODUS 10. Download the APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP: Download on the APP Store Download for...
Need help?
Do you have a question about the MV740 and is the answer not in the manual?
Questions and answers
Как перезагрузить устройство
To reset the MICODUS MV740 device to factory default settings, send the following SMS command:
begin123456
This command will clear all configurations and restore the device to its factory settings.
