Baumer CameraLink SXC20 v2 Quick Start Manual

Quick Start Guide
SXC v2 CameraLink ® cameras with Truesense Imaging
sensors
Latest software version and technical
documentation are available at:
www.baumer.com/vision/login
Safety
Conformity:
CE, FCC Part 15 Class B, RoHS
FCC – Class B device
N : This equipment has been tested and found to
ote
comply with the limits for a Class B digital device, pursu-
ant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interfer-
ence in a residential environment. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructios,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occure in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off an
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
▪ Reorient or relocate the receiving antenna.
▪ Increase the separation between the equipment and the
receiver.
▪ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
▪ Consult the dealer or an experienced radio/TV technician
for help.
Further Information
For further information on our products visit www.baumer.com
For technical issues, please contact our technical support:
support.cameras@baumer.com · Phone +49 (0)3528 4386-0 · Fax +49 (0)3528 4386-86
© Baumer Optronic GmbH · Badstrasse 30 · DE-01454 Radeberg, Germany
Technical data has been fully checked, but accuracy of printed matter not guaranteed.
Subject to change without notice. Printed in Germany 09/13. v1.1
Product Specification

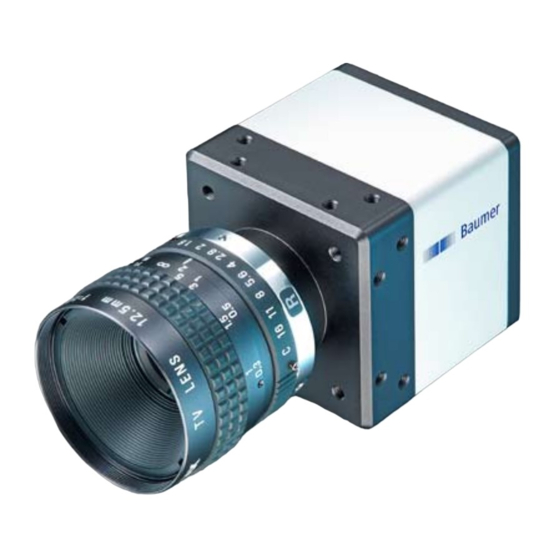

SXC v2 cameras – Maximum Performance with Truesense Imaging sensors
▪ Excellent image quality at high image rates
▪ Resolutions of 2 and 8 megapixel
▪ Frame rates up to 68 fps
▪ CameraLink ®
▪ Compact design (52 x 52 x 54 mm)
Camera Type
Monochrome
SXC20 v2
SXC80 v2
Color
SXC20c v2
SXC80c v2
Installation
Safety Precautions
Notice
▪ Connect the camera using
See User´s Guide for the com-
an appropriate cable to the
plete safety instructions!
framegrabber board on your
PC using the sdr-26 jack on
▪ Protect the sensor from dirt and
the camera side
moisture.
▪ If required, wire the digital
▪ Never open the camera housing.
▪ Avoid camera contamination by I/Os by using the 8 pin
foreign objects.
connector
▪ Connect the camera to
power supply
Environmental requirements:
Storage temp. -10°C ... +70°C
Operating temp. +5°C ... +60°C
Housing temp. max. +60°C
Humidity 10 % ... 90 %
Non-condensing
11099949
Base for high transmission rates
Sensor
Resolution
Size
2/3" 1600 x 1200
4/3" 3296 x 2472
2/3" 1600 x 1200
4/3" 3296 x 2472
Installation sample
1 - Framegrabber board; 2 - Camera Link
cable; 3 - Process interface cable; 4 - Power
cable
Dimensions
UNC 1/4-20
Full Frames
[max. fps]
16 x M3 depth 6
68
16
68
16
52
Dimensions
52
®
36
54
UNC 1/4-20
16 x M3 depth 6
54
