Autel OTOFIX D1 Pro Quick Reference Manual

Powered by
Web: www.otofixtech.com
Thank you for purchasing OTOFIX D1 Pro diagnostic tool. This tool is manufactured to a high standard and will provide years of trouble-free perfor-
mance when used in accordance to these instructions and properly maintained.

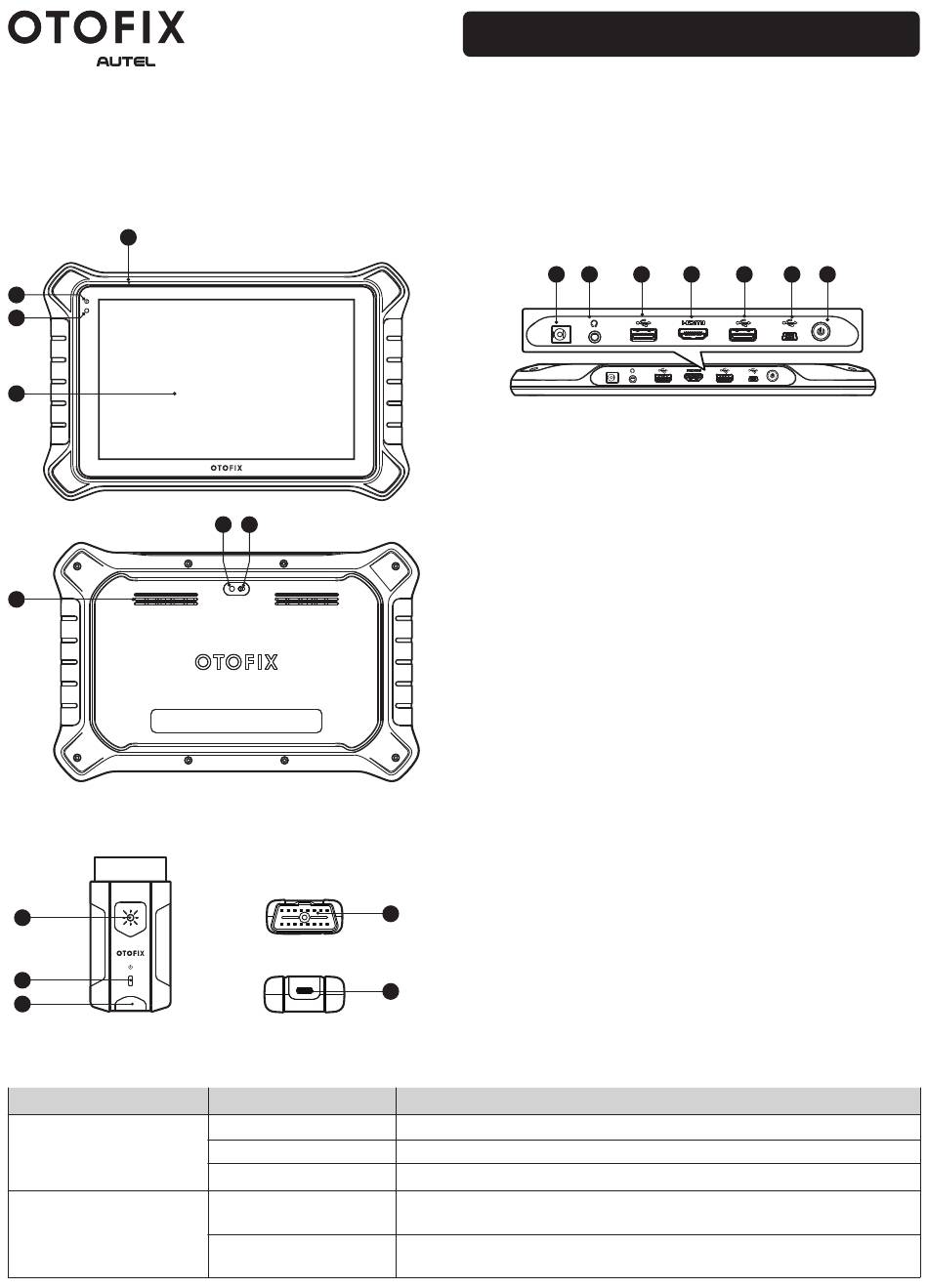

Functional Description
4
3
2
1
5
OTOFIX V1
1
2
3
OTOFIX V1 Description
LED
Power LED
Vehicle/
Connection LED
6
7
4
5
Color
Yellow
Green
Flashing Red
Green
Blue
Quick Reference Guide
8 9

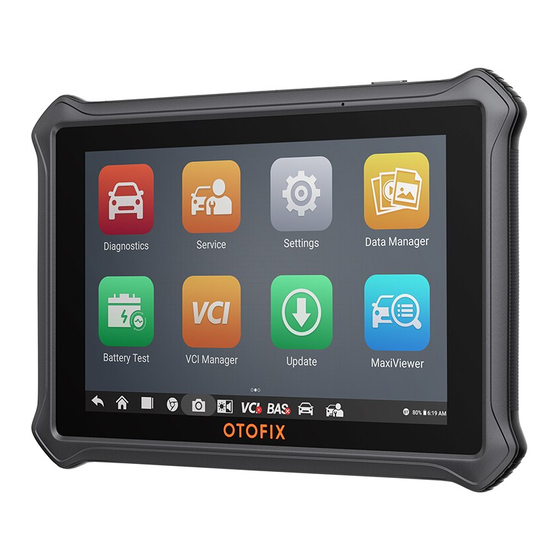

1. 10.1-inch Touchscreen
2. Ambient Light Sensor — detects ambient brightness.
3. Power LED
4. Microphone
5. Speaker
6. Camera Flash
7. Camera Lens
8. DC Power Supply Input Port
9. Headphone Jack
10. USB Port
11. HDMI (high-definition multimedia interface) Port
12. USB Port
13. Mini USB Port
14. Lock/Power Button — turns the device on & off with long
press, or locks the screen with short press.
1. Flashlight Button
2. Power LED
3. Vehicle/Connection LED
4. Vehicle Data Connector (16-pin)
5. USB Port
Description
VCI is powered on and performing self-check.
VCI is ready for use.
Firmware is updating.
VCI is connected via USB cable.
• Solid Green:
VCI is communicating via USB cable.
• Flashing Green:
VCI is connected via Bluetooth.
• Solid Blue:
: VCI is communicating via Bluetooth.
• Flashing Blue
OTOFIX D1 Pro
10 11 12 13 14
