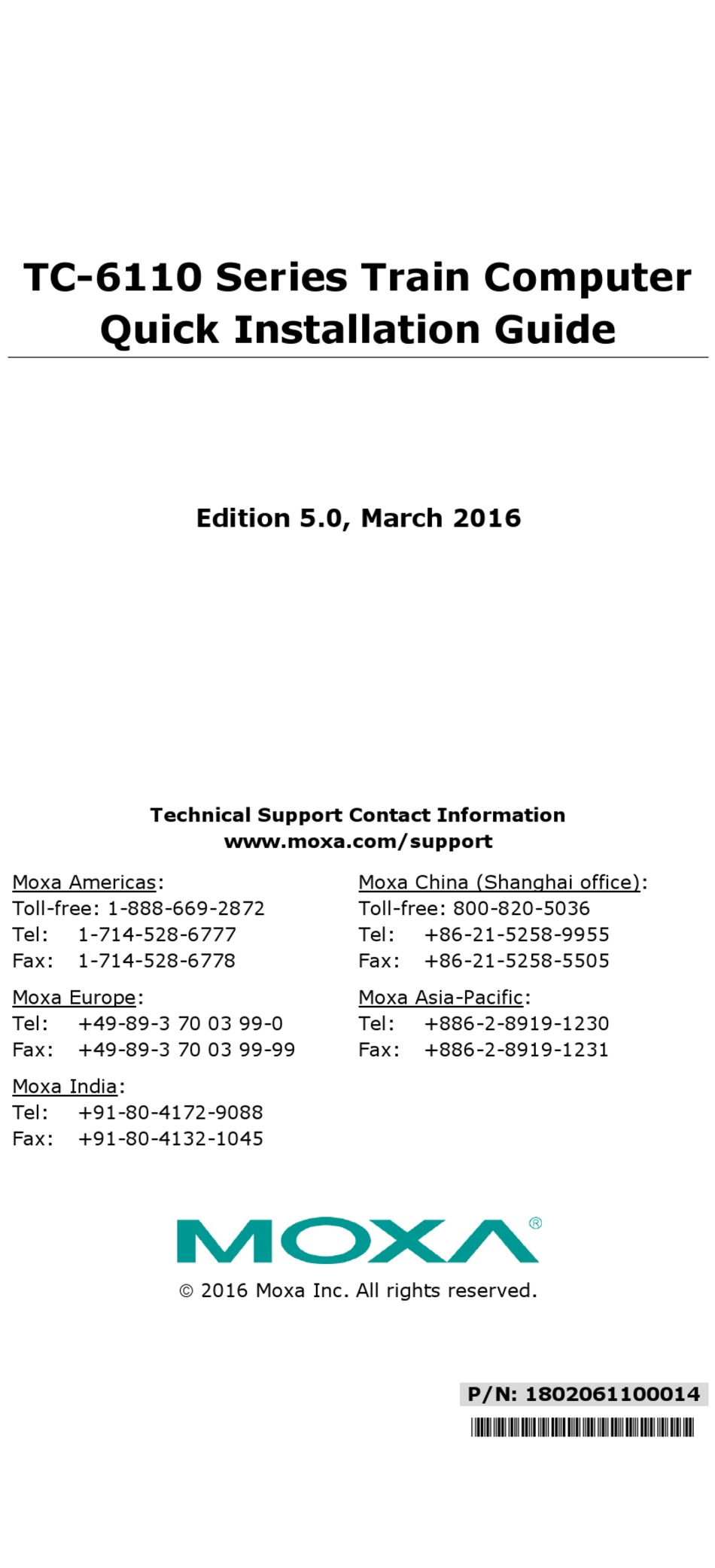

TC-6110 Series Train Computer
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Edition 5.0, March 2016
Technical Support Contact Information
www.moxa.com/support
2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802061100014
*1802061100014*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies TC-6110 Series
Summary of Contents for Moxa Technologies TC-6110 Series
- Page 1 TC-6110 Series Train Computer Quick Installation Guide Edition 5.0, March 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
- Page 2 Users can easily expand the system with additional storage modules for greater storage capacity. Model Names and Package Checklist The TC-6110 Series includes the following models: TC-6110-W7E: Modular 3U/42HP train computer, Intel Atom D525 •...
- Page 3 Each basic system model is shipped with following standard items: • TC-6110 train computer • Rackmount kit • Power switch with cable extender • Power cable • Documentation CD or DVD • Quick installation guide (printed) • Warranty card Hardware Installation Front View Front Panel LEDs Information about each LED is given in the following table.
- Page 4 Powering the TC-6110 TC-6110 computers come with DC power inputs. When connecting the TC-6110 to an office AC source (for testing), an adaptor must be used. To connect the AC adaptor, follow these steps: Step 1: Connect the ends of the extended power switch cable to the male portion of the 2-pin Euroblock (provided in the package).
- Page 5 When installing TC-6110 computers at a field site, follow these steps: Step 1: Connect the ends of the extended power switch cable to the male portion of the 2-pin Euroblock (provided); you may also choose to not use the cable extender, and connect the switch to the terminal directly. Step 2: Plug the male Euroblock into the matching female terminal on the front panel.
- Page 6 USB Ports The TC-6110 embedded computer has three USB 2.0 ports: two come with type A connectors and one with an M12 (D-coded, 5-pin, female) connector. All of the ports are UHCI, Rev 2.0 N.C. compliant and support Plug & Play and hot swapping.
- Page 7 Audio Input/Output The TC-6110 Series comes with an audio input/output connector and an M12 (A-coded, 8-pin, female) connector. Use a cable to connect the audio input and output. See the following figure and table for pin assignments. Audio Line in, right –...
