BITMAIN ANTMINER L3+ Installation Manual

Hide thumbs Also See for ANTMINER L3+:
Table of Contents

Advertisement

Quick Links

Installation Guide
© Copyright Bitmain Technologies Holding Company 2007 – 2022. All rights reserved.
Bitmain Cayman (hereinafter referred to as 'Bitmain') reserves the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such
information is current and complete. All products are sold subject to Bitmain's terms and conditions of sale
supplied at the time of order acknowledgment.
Bitmain warrants performance of its products to the specifications applicable at the time of sale in
accordance with Bitmain's standard warranty. Testing and other quality control techniques are used to the
extent Bitmain
L3+ Server
Document Version 0.1
April 2017

Advertisement

Table of Contents
loading

Related Manuals for BITMAIN ANTMINER L3+

Summary of Contents for BITMAIN ANTMINER L3+

  • Page 1 Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to Bitmain's terms and conditions of sale supplied at the time of order acknowledgment.
  • Page 2 Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Bitmain under the patents or other intellectual property of Bitmain.

  • Page 3: Table Of Contents

    L3+ Server Installation Guide Table of Contents Overview 1.1 L3+ Server Components____________________________________________________________________ 5 1.2 Specifications__________________________________________________________________________ 6 Connecting the Power Supply__________________________________________________________________ 7 Setting Up the Server_________________________________________________________________________ 9 Configuring the Server 4.1 Setting Up the Pool 4.2 Modifying the Frequency Monitoring Your Server Administering Your Server 6.1 Checking Your Firmware Version 6.2 Upgrading Your System...

  • Page 4: Overview

    1. Overview 1. Overview The L3+ server is Bitmain’s newest version in the L3+ server series. It boasts a state-of-the-art BM1485 custom-made chip. All L3+ servers are tested and configured prior to shipping to ensure easy set up. Power supply unit is not included. Please provide your own ATX power supply.

  • Page 5: L3+ Server Components

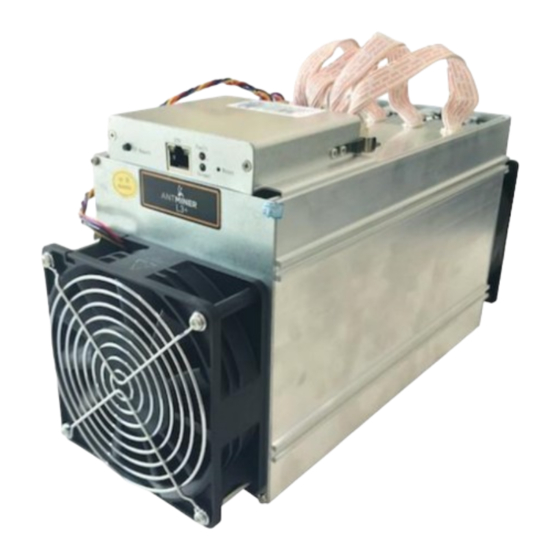

    L3+ Server Installation Guide 1. Overview 1.1 L3+ Server Components The L3+ server main components and controller front panel are shown in the following figure: 1.2 Specification --‐ 5 - -‐...
  • Page 6 L3+ Server Installation Guide 1. Overview Feature Description Ideal Hash Rate 504MH/S Default chip frequency 384M Estimated wall outlet power consumption (with APW3, 93% 800W +10% efficiency, 25°C ambient temperature) Rated voltage 11.6 --‐ 13.00V Estimated wall outlet power efficiency (with APW3, 93% 1.6J/MH +10% efficiency, 25°C ambient temperature)

  • Page 7: Connecting The Power Supply

    L3+ Server Installation Guide 2. Connecting the Power Supply 2. Connecting the Power Supply Nine PCI-e connectors are located at the top of the L3+ server for connecting the PSU as follows: ● Eight PCI--‐e connectors for the hash boards. Each hash board has a set of two PCI--‐e connectors. ●...
  • Page 8 L3+ Server Installation Guide 2. Connecting the Power Supply Figure 2--‐1. PCI--‐E Connectors --‐ Correct Connection Figure 2--‐2. PCI--‐E Connectors --‐ Incorrect Connection --‐ 8 - -‐...

  • Page 9: Setting Up The Server

    To set up the server: The file IPReporter.zip is supported by Microsoft Windows only. Go to the following site: https://shop.bitmain.com/support/download Choose ‘Others’ and download the following file: IPReporter.zip Extract the file.3. The default DHCP network protocol distributes IP addresses automatically.
  • Page 10 L3+ Server Installation Guide 3. Setting Up the Server On the controller board, click the IP Report button. Hold it down until it beeps (about 5 seconds). The IP address will be displayed in a window on your computer screen. In your web browser, enter the IP address provided.

  • Page 11: Configuring The Server

    L3+ Server Installation Guide 4. Configuring the Server 4. Configuring the Server 4.1 Setting Up the Pool To configure the server: click General Settings. Set the options according to the following table: Option Description Pool URL Enter the URL of your desired pool. The L3+ server can be set up with three mining pools, with decreasing priority from the first pool (pool 1) to the third pool (pool 3).

  • Page 12: Modifying The Frequency

    L3+ Server Installation Guide 4. Configuring the Server 4.2 Modifying the Frequency (Applied only to fixed frequency firmware) To modify the frequency value: click Advanced Settings Select a frequency. The default frequency for the L3+ server is 384M --‐ 12 - -‐...

  • Page 13: Monitoring Your Server

    L3+ Server Installation Guide 5. Monitoring Your Server 5. Monitoring Your Server To check the operating status of your server: Click the status marked below. Monitor your server according to the descriptions in the following table: Option Description ASIC# Number of chips detected in the chain. Frequency ASIC frequency setting.

  • Page 14: Administering Your Server

    6.2 Upgrading Your System Make sure that the L3+ server remains powered during the upgrade process. If power fails before the upgrade is completed, you will need to return it to Bitmain for repair. To upgrade the server’s firmware: 1. In System, click Upgrade.

  • Page 15: Modifying Your Password

    L3+ Server Installation Guide 6. Administering Your Server For Keep Settings: Select the check box to keep your current settings (default). ■ Clear the check box to reset the server to default settings. ■ Click the (Browse) button and navigate to the upgrade file. Select the upgrade file, then click Flash image.
  • Page 16 L3+ Server Installation Guide - 16 -...
