Enttec ODE Mk2 User Manual

ODE MK2
Box Contents
•

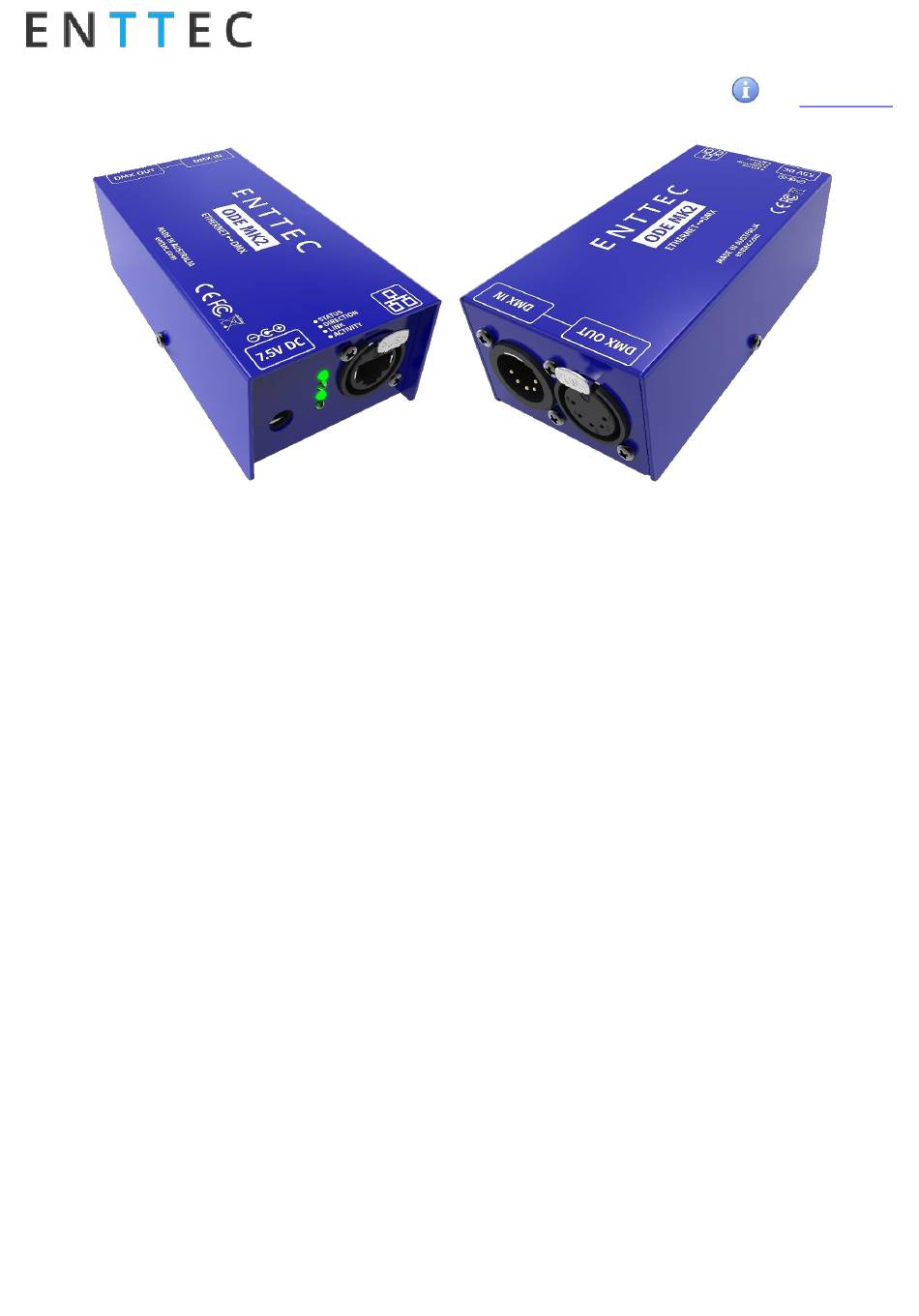

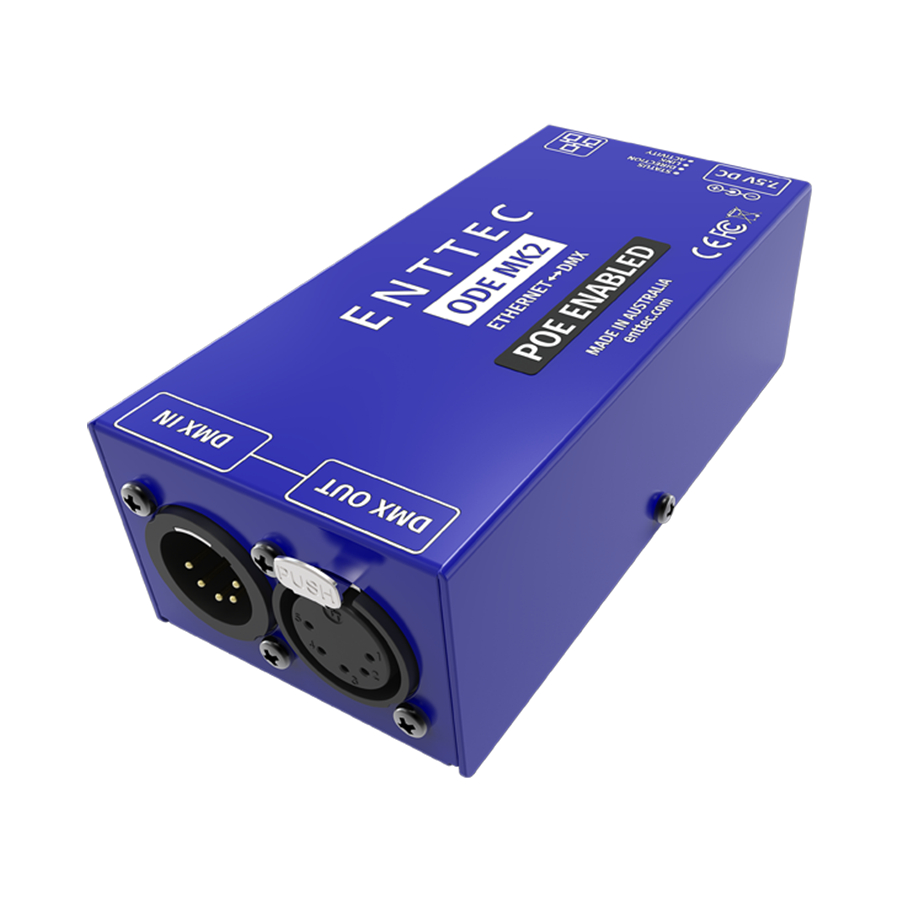

ODE Mk2 (PN: 70405 or 70406)
•
Straight connect Ethernet lead (PN: 79102)
•
Power Adapter (PN: 79111) if you have the POE
option, the power adapter is not included.
•
This user manual
Features
•
1 Universe Ethernet to DMX node (Output mode)
•
1 Universe DMX to Ethernet (Input mode)
•
Easy to setup & update through any web
browser
•
Supports following DMX over Ethernet proto-
cols:
Art-Net
o
Streaming ACN (sACN)
o
ESP
o
•
Supports RDM over Art-Net (controller)
•
Supports Art-Net 3
•
HTP/LTP Merging support: up-to 2 DMX sources
can be merged (if enabled).
•
1 RJ45 connector (10/100 Mbps)
•
Static or Dynamic (DHCP) IP configuration (DHCP
by default)
May 18
•
Supports IEEE 802.3af PoE (Power over Ethernet)
over RJ45 connector (only on PoE model PN 70406)
•
Supports Broadcast or Unicast (Input mode)
•
5Pin DMX XLR connectors
Safety
•
Do not expose the ODE Mk2 to rain or moisture,
doing this will void the warranty
•
This unit is intended for indoor use only
Basic Setup
Right out of the box, the ODE Mk2 is factory configured to be
a DMX OUTPUT device, listening to the first Art-Net Universe
(0x00). It is also set as a DHCP node, so you can plug it into
your existing router, and it's good to go.
To make any changes to the configuration, you will need the
IP address of ODE Mk2.
If you connect ODE to a network router, it will be assigned
an IP address as per the router's DHCP addressing. However,
if you connect ODE to a switch or a computer, it will use the
factory set static IP address (printed on the box).
ENTTEC provides a free App (available for Windows and Mac)
called NMU, which will find the ODE on your network and
display its IP address.
Using the IP address one can access the built-in web-inter-
face inside the ODE via any modern web-browser. The web-
interface allows the settings of the unit to be changed.
ID: 3275345 Rev:33
User Manual
ODE Mk2 MANUAL
For latest version visit:
www.enttec.com
Page|1
