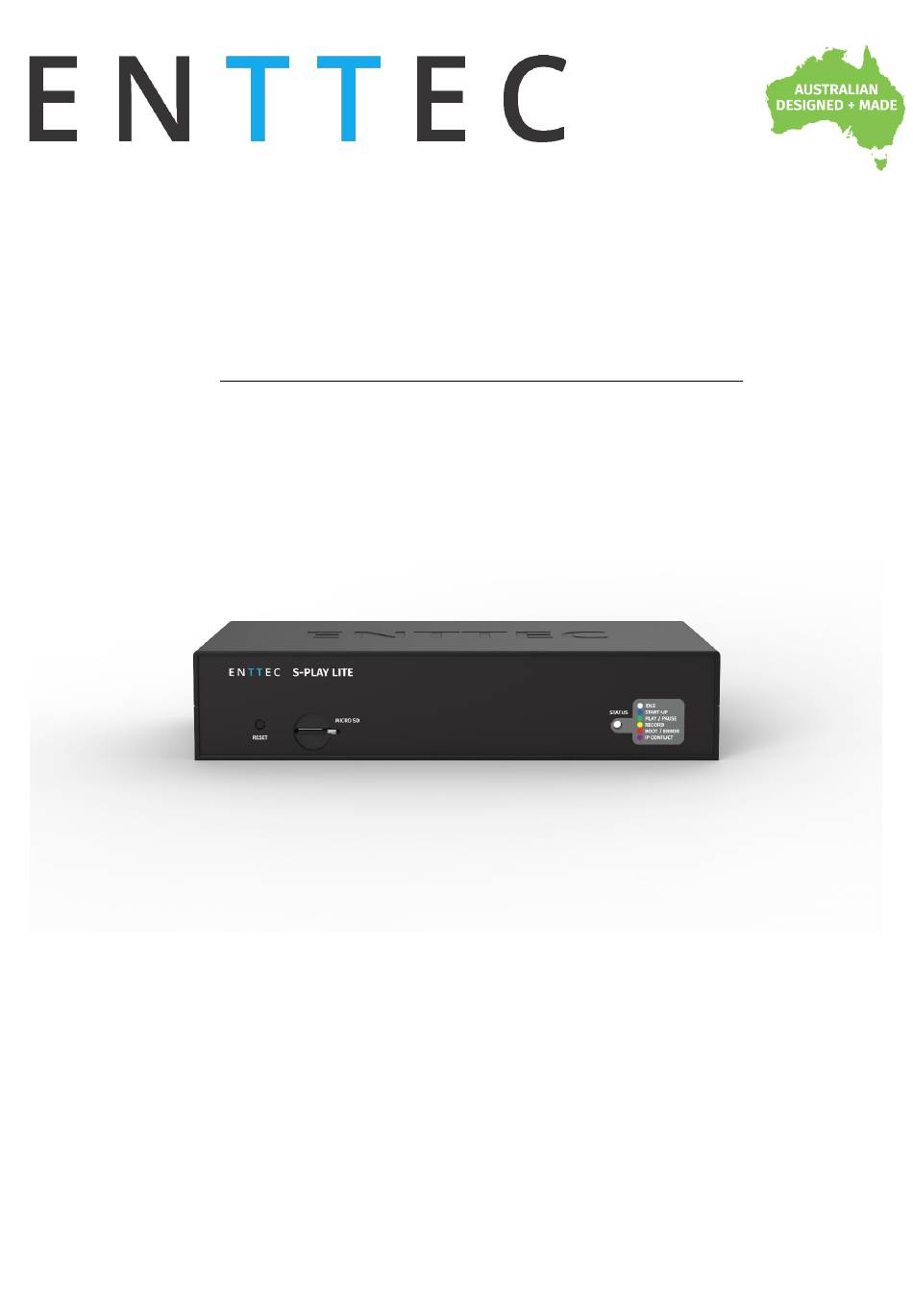

- Page 1 S-PLAY LITE 70094 User Manual Record, Edit and Playback light shows up to 16 Universes light shows, seamlessly integrate with 3 party hardware and system with versatile mounting solutions.
-
Page 2: Table Of Contents
S-PLAY LITE Playback to Pixel Systems ................................7 S-PLAY LITE Application Diagram ..................................7 Connection to Relay........................................8 Connection to Digital Inputs ....................................8 Using Motion Sensors with the S-PLAY LITE ..............................9 Functional Features ........................................... 10 Hardware Features..........................................11 Overview ............................................11 S-PLAY LITE Connectivity ...................................... - Page 3 S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. UDP ..............................................25 OSC ..............................................25 Digital Input ..........................................25 Art-Net ............................................26 sACN ............................................... 26 DMX ..............................................26 Button ............................................26 Playlists .............................................. 27 Playlists Page Layout ......................................28 Created Playlists ........................................
- Page 4 S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Shutting down the S-PLAY LITE ....................................47 Default Login and Password ....................................47 Ports................................................48 XLR5 Female (DMX-512) ....................................... 48 DB9 Male (RS232) ........................................... 48 GPIO ..............................................48 Relay ..............................................48 Servicing, Inspection &...
-
Page 5: Safety
ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance. -
Page 6: Protection From Injury During Installation
Keep the S-PLAY LITE and its accessories in its protective packaging until final installation. Note the serial number of each S-PLAY LITE and add it to your layout plan for future reference when servicing. -
Page 7: Wiring Diagrams
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Wiring Diagrams S-PLAY LITE to distribute DMX Output ODE Mk3 SKU 70407 12-124VDC or PoE (802 .3af) 2 x DMX Universes CAT6 2U Ethernet to DMX XLR 5-pin 12-124VDC or PoE (802 .3af) -
Page 8: Connection To Relay
Connection to Relay The S-PLAY LITE is equipped with a set of relays designed for use with low power devices and to provide switching logic for higher power contactors. To ensure a safe installation it is imperative that the power connected to the S-PLAY LITE’s relays is within their operating limits. -
Page 9: Using Motion Sensors With The S-Play Lite
Note: Always run digital input cabling away from main power or high sources of EMI (i.e. air conditioning units) to reduce interference. If you require a remote input trigger further away from the S-PLAY LITE than 50m, ENTTEC recommend the use of a 3rd party GPIO interface that can communicate with the S-PLAY LITE’s other triggering methods over a network. -
Page 10: Functional Features
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Functional Features Overview Supports protocols including DMX, Art-Net and sACN. 2 DMX Universe output or input. 16 Universe Art-Net and sACN input or output. Configurable output refresh rate. (Max 60FPS eDMX, 40Hz Physical DMX) ... -
Page 11: Hardware Features

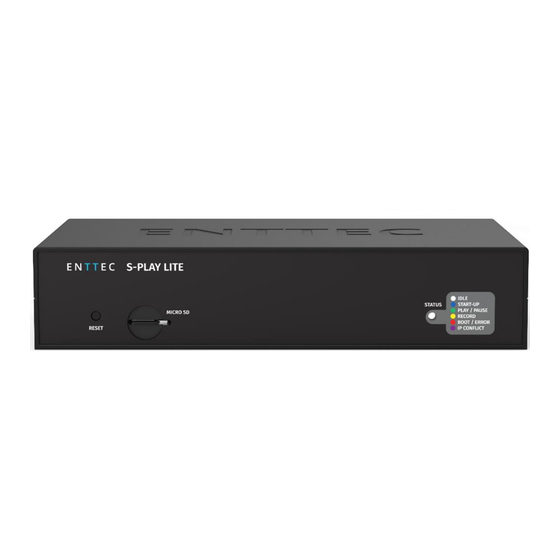

S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Hardware Features Overview 1U height – Half width Two bi-directional 5-Pin female XLR DMX Ports 12 to 24v DC Input (8w max power draw) – Power supplies over 5A should not be connected to ... -
Page 12: Reset Button
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Reset Button The reset button on the device providing multiple control options and ensuring the device's adaptability to various operational scenarios. This reset button gives access to functionalities below: Trigger Playlists The reset button can be configured as a trigger button for playlists. -
Page 13: Led Indicator
The S-PLAY LITE has DHCP IP address enabled by default. DHCP: When DHCP is enabled, and the S-PLAY LITE is on a network with a DHCP server, it requests an IP address on power-up. If the DHCP server is slow or absent, the S-PLAY LITE falls back to the default IP address: 192.168.0.10 with a netmask of 255.255.255.0. -
Page 14: Device Ip Discovery
Visit the ENTTEC website for the latest version. Device IP Discovery ENTTEC EMU software ensures smooth device discovery by instantly detecting all ENTTEC products on the network. Users can easily discover devices by following these simple steps: 1. Download EMU from www.enttec.com/sku/70680. -
Page 15: Web Interface
The S-PLAY LITE offers easy configuration and control through a web browser on any computer within the same Local Area Network (LAN) as the device. Users can directly type the IP address into the web browser's URL field, whether the S-PLAY LITE is assigned a DHCP address or a Static IP address. Top Menu The S-PLAY LITE’s web interface consists of the following pages:... -
Page 16: Managing Cues
▪ Editing it in the Cue Library directly overwrites the full universe values received and extends the length of the cue if necessary. ▪ Once a cue is selected to be edited, the S-PLAY LITE will internally trigger the Stop All command to stop all playback on the S-PLAY LITE to stop overlapping. -
Page 17: Static Cue
2) Use the Colour Picker from the colour palette and press 'Set DMX' to apply and populate the selected channels. 3) Capture a DMX frame from the selected DMX source connected to the S-PLAY LITE by pressing the ‘DMX Snapshot’. It will automatically populate the recorded DMX values to the selected channels and Universes. -
Page 18: Dynamic Cue
7. If you wish to view the output live, press the ‘Preview’ button at the top left of the interface to send the recorded data to the fixtures of your S-PLAY LITE’s outputs as defined on the Settings page. 8. Save the cue once completed. - Page 19 Art-Net/sACN device is outputting on the same universes that are being recorded (including the S-PLAY LITE itself). This precaution eliminates the possibility of interference loopback, which can result in erratic or inaccurate recordings. To adjust the output settings of your S- PLAY LITE, navigate to the Settings page.
-
Page 20: Effects
Each colour point can be dragged to a position to create preferable effect. A maximum of 8 colours can be created for a Effect Cue in S-PLAY LITE. In order to create for smooth loops, ensure the beginning and end colour of the Effect are the same. The exact range of fixtures that the color point in the gradient graphic will affect can be counted based on Number of Fixtures and Position (%). -
Page 21: Events
Editing, testing and deletion of Events. Use events to allow integration between S-PLAY LITE and other devices. The S-PLAY LITE can send commands over multiple protocols and interact with the relay. RS232 ◼ An RS232 Event will send the user defined RS232 command, when activated. -
Page 22: Udp
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. A UDP Event will send the command defined below when activated. Commands are limited to 1024 characters. UDP strings ending in \r – the \r will be replaced by a ... -
Page 23: Art-Net
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Art-Net When activated, this Event will send the Art-Net frame with channel state defined in the settings. For the best practice, do not overlap Events with universes used for playback of recordings. -
Page 24: Triggers
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Triggers The Triggers page allows: Create up to 150 custom Triggers, ready to be embedded in playlists. Set receiving triggers from: digital input, UDP, OSC, RS232, DMX, Art-Net and sACN. -
Page 25: Udp
8000. All OSC commands must commence with a leading '/' sign. 2. Integration with the S-PLAY LITE's OSC API: This integration enables control over various functions, including: Master intensity adjustments Play, pause, and stop commands for all playlists ... -
Page 26: Art-Net
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Art-Net An Art-Net trigger can be unicast or broadcast to the S-PLAY LITE. The Trigger will be activated, when the incoming value is equal or greater than the Art-Net channel parameters defined. -
Page 27: Playlists
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Playlists The Playlists page is where playlists can be created by combining Cues, Events and Triggers onto the timeline. Using the tools made available it is possible to: Create 100 playlists. -
Page 28: Playlists
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Playlists Page Layout The playlists page is comprised of 9 key elements: A. Control all playlists playback with master level B. Global playlist control C. Search and filter bar for cues, triggers & events D. -
Page 29: Created Playlists
Search and Filter Bar This box contains all Cues Events and Triggers Stored on the S-PLAY LITE. To create a new Playlist, select "Create New Playlist" from the list. This entry will always be the first entry on the menu. -
Page 30: Playlist Playback Configuration
Hide from Home: Option to show or hide this playlist in Home Page. Save: Saves any change on the Playlist. S-PLAY LITE will ask to save any change before playing a Playlist. USER MANUAL... -
Page 31: Playlist Settings
When playing multiple media at the same time. i.e. 2 cues on 2 different tracks, S-PLAY LITE will use HTP (Highest value Takes Priority) merging. Event and Trigger Tracks: The bottom 2 tracks are specifically designated for events and triggers. The vertical line indicates the precise timing at which the playlist will either pause until the trigger becomes active or execute the event. -
Page 32: Schedules
To set up a schedule you need to create a playlist first. S-PLAY LITE allows users to set a schedule for the playlists to play, pause or stop at any time range. Set multiple schedules populating the times to activate and deactivate the playlists. -
Page 33: Created Schedules
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. There are 7 different sections to be filled out when creating a schedule: A. Schedule Name B. Command C. Selected Playlist D. Start condition. E. End condition. F. Frequency type. -
Page 34: Schedule Name
Quarter – Full Moon – Third Quarter. Hide from Home By default, all schedules are shown on the S-PLAY LITE home page. Using the ‘Hide from Home’ option removes them from the homepage. This means users who are not logged in cannot see them. -
Page 35: Interfaces
Link to specific interface pages. (Drag and drop within the UI to order these pages). On the S-PLAY LITE home page, there is a link displayed for accessing the Interface. By clicking on the "Hide from Home" option, the interface will no longer be visible on the home page. -
Page 36: Widgets
Used to define a fixed space between other widgets. Spacers can be set between 10 and 100% interface width. Widgets to control all Playlists contained on the S-PLAY LITE. Widgets to control Specific commands on the S-PLAY LITE Playlists contained on the S-PLAY LITE. - Page 37 Widget to control colour filter of a specific Effect Cue. Example interface The image below shows a custom interface linked to Playlists that can trigger RS232, UDP and other protocols alongside lighting states from the S-PLAY LITE directly. USER MANUAL Document Updated: April 2024 ID: 5950188 ...
-
Page 38: Storage
◼ Transfer show from internal to external SD and vice versa. ◼ Restore a backup onto either the internal memory or External SD Card. (Note: restoring a backup will erase the current shows on your S-PLAY LITE – always backup your current configuration before restoring a backup). -
Page 39: Restore
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Restore Use the created .bak file to restore cues, playlists, schedules and output settings. Navigate to the Storage Menu in the web interface, then go to Restore section. Select the desired memory location (internal or external SD). -
Page 40: Settings
▪ Download the latest firmware version from the ENTTEC website and navigate to the bottom of the Settings page. ▪ After updating firmware, power cycle your S-PLAY LITE and clear your web browser cache using ‘Ctrl’ + ‘Shift’ + ‘R’ to ensure nothing is stored in your browser from a previous firmware version. -
Page 41: Device Info
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Device Info Device info allows user to set unique S-PLAY LITE name for identification. Uptime shows the time the S- PLAY LITE has been working. Output Settings The Output Settings allows you to assign S-PLAY LITE’s internal 16 universes data to the Art-Net, sACN and DMX with settings configurable in the next section to create tailored outputs required for your project. -
Page 42: Dmx Settings
Network Settings allow a DHCP or Manual IP address to be defined. Once update IP changes, the S-PLAY LITE will reboot in order to initiate all services. UDP and OSC input ports for use with S-PLAY LITE Triggers can also be defined in the Network Settings. Default Network Settings:... -
Page 43: Date & Time Settings
S-PLAY LITE (70094) Visit the ENTTEC website for the latest version. Date & Time Settings Either define it manually or enable NTP to set the Date and Time from local network automatically. When the time is set manually, it is required to be updated to reflect daylight saving time twice a year. -
Page 44: Firmware Update
Events, and Triggers. Always perform a backup and a factory reset before updating firmware. ▪ After updating firmware, power cycle your S-PLAY LITE and clear your web browser cache using ‘Ctrl’ + ‘Shift’ + ‘R’ to ensure no residual data from the previous firmware version is stored. -
Page 45: User Management
Monitor DMX current, login to users account and switch languages between English and Chinese. Monitor DMX Current S-PLAY LITE allows the user to monitor DMX current for all universes at real time. By clicking , an overview of each universe current setting will appear at the bottom page. -
Page 46: Lock Feature
"Home", "Cue Library" and/or "Playlist Page". This is to avoid having conflicting commands that can jeopardise any part of the recording process. To unlock the S-PLAY LITE, simply click on the padlock icon on the top right corner of the web interface. USER MANUAL... -
Page 47: Shutting Down The S-Play Lite
Shutting down the S-PLAY LITE The S-PLAY LITE will be turned off by the red “Power” icon on the top right corner of the web interface. A message will appear to confirm the command allowing the power to be removed. -
Page 48: Ports
S-PLAY (70092) Visit the ENTTEC website for the latest version. Ports XLR5 Female (DMX-512) CONNECTION DATA - DATA + DB9 Male (RS232) CONNECTION GPIO Relay USER MANUAL Document Updated: April 2024 ID: 5950188 ... -
Page 49: Servicing, Inspection & Maintenance
Do not spray on the device or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth. -
Page 50: Package Contents
Din Clip x 2pcs + screws x 4pcs ReadMe Card Ordering Information For further support and to browse ENTTEC’s range of products visit the ENTTEC website. Item Part No. S-PLAY LITE 70094 Due to constant innovation, information within this document is subject to change.
