DMX USB Pro Mk2 – User Guide
The ultimate in DMX USB control.

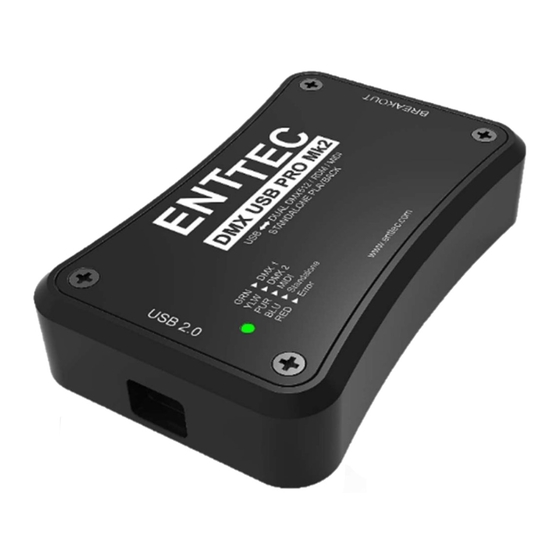

The DMX USB Pro Mk2 is a USB -> DMX device capable
of sending or receiving up to 1024 DMX channels
through one simple USB 2.0 connection. It's supplied
with a DB15 to DMX Dual DMX output cable to make
connection to your DMX / RDM lighting equipment
simple.
The DMX USB Pro Mk2 works with a broad array of
supported 3rd party software running on Windows,
Linux or MacOS. The Pro Mk2 features full backward
compatibility with software that supports the original
DMX USB Pro, to output a single universe.
A 1 universe DMX stream can be recorded using the
DMX input port; or using Art-Net and saved onto the
USB Pro Mk2's internal memory for infinite looping or
for a fixed number of loops after powerup.
The Pro Mk2's durable machined aluminum body
makes it well suited to life on the road and 1500V full
isolation for both data and power protect your
computer from any stray voltages on the DMX line.
The DMX USB Pro Mk2 features an internal frame
buffer for consistent DMX generation with perfect
timing without
processor.
.
1
|
reliance on your computer's
Features
Two universes (512 channel each) of input or

output (one per DMX port).
Fully compliant with USITT DMX512-A.

RDM enabled (ANSI E1.20 compliant).

Output refresh rate configurable from 1 to 40

FPS (Frames Per Second).
Standalone

recorded DMX show on power-up.
Configurable MAB and Break time using

ENTTEC's
accommodate non-standard equipment.
1500V full isolation (data & power lines to

protect your computer from surges on the
DMX line).
Drivers for Windows, MacOS and Linux

(drivers released and maintained by FTDI).
Compatible with various open-source and

professional lighting control programs.
Backward compatibility with software that

supports ENTTEC's DMX USB Pro.
Developer API available to integrate into

your own software.
ID: 5929715
DMX USB PRO Mk2 (70314)
Visit the ENTTEC website
latest version of this document
mode: playback
Pro Manager Software
DATASHEET – v2.1

