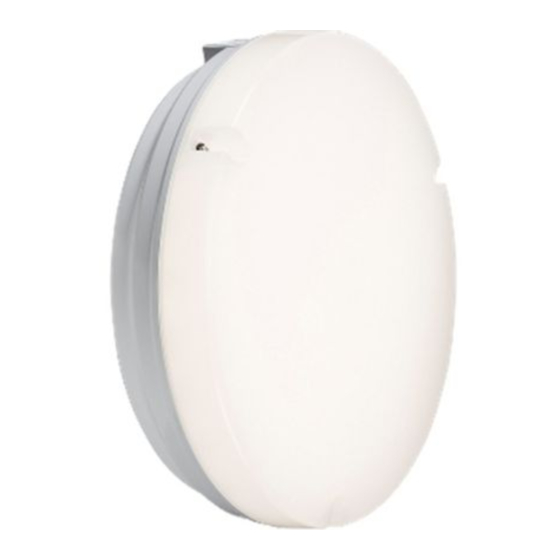

- Page 1 INSTALLATION & MAINTENANCE MANUAL TPR14LEDS...
- Page 2 These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following product: TPR14LEDS SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 (BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician Please isolate mains prior to installation or maintenance • Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating •...
- Page 4 to infringe with any gas/water pipes or electrical cables Feed the mains cable through the rubber grommet to retain IP rating, or alternatively, drill out one of • the two 20mm drilling guides on the sides of the fitting (see Fig. 2) Fig.
- Page 5 The additional terminal called Slave Live (SL) is available to enable the sensor to power on additional • luminaires. A max. LED load of 500W can be controlled by the sensor • See below for adjustment of the sensor settings Close the hinged gear tray until the tab clicks into position •...
- Page 6 WARNING This product must be disconnected from the circuit if subjected to any high voltage or For non-emergency versions: insulation resistance testing. Irreparable damage will occur if this instruction is not followed. GENERAL GENERAL This product contains a light source of energy efficiency class E to Regulation (EU) No. This product contains a light source of energy efficiency class D to Regulation (EU) N 2019/2015.
- Page 7 • Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is illuminated • Annual 3-hour duration test - simulate a mains supply failure for 3-hour continuous test by TEST RECORD SHEET operation of key switch or switching off circuit breaker.
- Page 8 ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve the right to alter product specification without prior notice.
