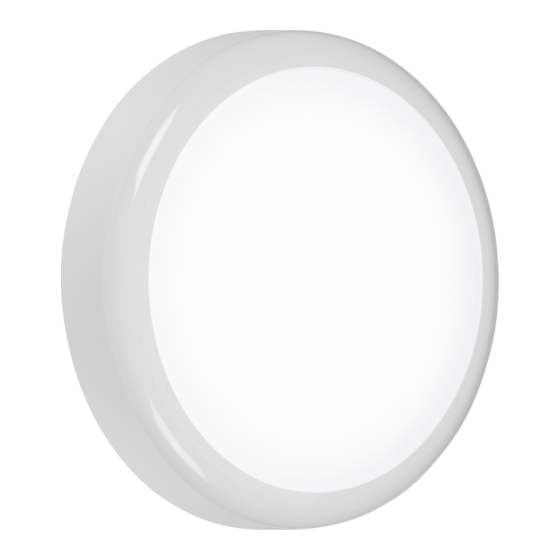

- Page 1 INSTALLATION & MAINTENANCE MANUAL BTxxACTS...
- Page 2 GENERAL INSTRUCTIONS These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: BT9ACTS / BT14ACTS / BT20ACTS SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 SAFETY This product must be installed in accordance with the latest edition of the IEE Wiring Regulations This product must be installed in accordance with the latest edition of the IEE Wiring Regulations • • (BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician (BS7671) and current Building Regulations.
- Page 4 Mark the location of the fixing holes, and drill the holes ensuring not to infringe with any gas/water • pipes or electrical cables Feed the cable via the rubber grommet to retain IP rating, and secure the baseplate to the surface •...
- Page 5 Fig. 4 Switch on and check for correct operation, ensuring the green indicator LED is illuminated • We recommend, on commissioning the installation, a minimum charge period of 24 hours before • • Reattach the diffuser by rotating clockwise carrying out an emergency duration test •...
- Page 6 DIP SWITCH SETTINGS Detection area Hold time This is the time period the lamp remains Hold time This is the time period the lamp remains at 100% after no motion is dete at 100% after no motion is detected Daylight sensor When set to Disable, the daylight sensor will switch the lamp on when motion is detected regardless of the ambient light level...
- Page 7 WARNING This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance testing. Irreparable damage will occur if this instruction is not followed. GENERAL This product contains a light source of energy efficiency class D (BT9ACTS) / E (BT14ACTS, BT20ACTS) to Regulation (EU) No.
- Page 8 ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve the right to alter product specification without prior notice.
