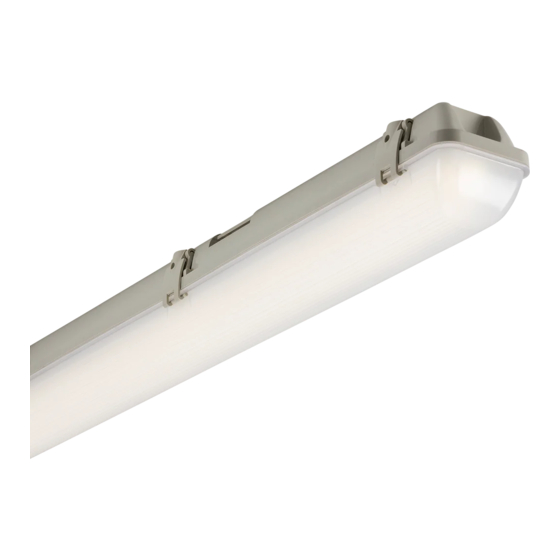

- Page 1 INSTALLATION & MAINTENANCE MANUAL TRLED12 / TRLED14 / TRLED15 TRLED15D / TRLED16 / TRLED16D TRLED22 / TRLED24 / TRLED25 TRLED25D / TRLED26 / TRLED26D...
- Page 2 These instructions should be used to aid installation of the following products: TRLED12 / TRLED14 / TRLED15 / TRLED15D / TRLED16 / TRLED16D / TRLED22 / TRLED24 / TRLED25 / TRLED25D / TRLED26 / TRLED26D SAFETY •...
- Page 3 • Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of Using the mounting brackets as a template, mark the location for, and drill the fixing holes ensuring not • the circuit cable, fuse or circuit breaker to infringe with any gas/water pipes or electrical cables.
- Page 4 Fig. 2 • Remove the gear tray from the baseplate by pinching the clips at two locations (see Fig. 3) Fig. 3 Fig. 3 Fig. 3 • Feed the mains cable through the compression gland provided at the end of the fitting Feed the mains cable through the compression gland provided at the end of the fitting •...
- Page 5 GENERAL This product contains a light source of energy efficiency class C (TRLED14, TRLED25D, TRLED26D) / Class D (TRLED12 / TRLED15 / TRLED15D / TRLED16 / TRLED16D / TRLED22 / TRLED24 / TRLED25 / TRLED26) to Regulation (EU) No. 2019/2015.
- Page 6 INTERNAT CONTACT D INTERNATIONAL CONTACT DETAILS -20~ °C ML Accessories Limited LU5 4LT www.mlaccessories.co.uk DCSEP21_V2...
