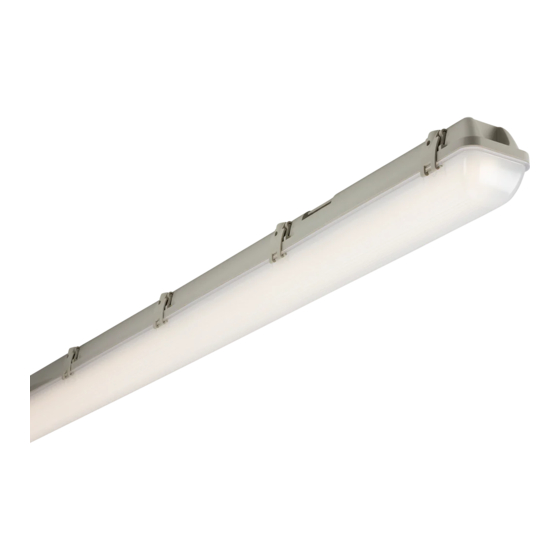

- Page 1 INSTALLATION & MAINTENANCE MANUAL TRLED14EM / TRLED15EM TRLED15EMD / TRLED16EM TRLED16EMD / TRLED24EM TRLED25EM / TRLED25EMD TRLED26EM / TRLED26EMD...
- Page 2 These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following products: TRLED14EM / TRLED15EM / TRLED15EMD / TRLED16EM / TRLED16EMD / TRLED24EM TRLED25EM / TRLED25EMD / TRLED26EM / TRLED26EMD SAFETY •...
- Page 3 Using the mounting brackets as a template, mark the location for, and drill the fixing holes ensuring not • • This product is IP65 rated to infringe with any gas/water pipes or electrical cables. Fixing centres are shown in Fig. 1 INSTALLATION Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the manufacturer of the sensors that they are compatible with LED luminaires.
- Page 4 Remove the gear tray from the baseplate by pinching the clips at two locations (see Fig. 3) • • Remove the gear tray from the baseplate by pinching the clips at two locations (see Fig. 3) Fig. 3 Fig. 3 Fig.
- Page 5 Irreparable damage will occur if this instruction is not followed. GENERAL This product contains a light source of energy efficiency class C (TRLED14EM, TRLED25EMD, TRLED26EMD) / D (TRLED15EM, TRLED15EMD, TRLED16EM, TRLED16EMD, TRLED24EM, TRLED25EM, TRLED26EM) to Regulation (EU) No. 2019/2015.
- Page 6 If this product should fail within its warranty period, it should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected.
- Page 7 TEST RECORD SHEET SIGNED DATE INITIAL COMMISSIONING 3 HOUR TEST FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR MONTH TEST SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL FUNCTIONAL...
- Page 8 INTERNAT CONTACT D INTERNATIONAL CONTACT DETAILS -20~ °C ML Accessories Limited LU5 4LT www.mlaccessories.co.uk DCSEP21_V2...
