Product
Connector Type
Gender
Electrical
Signal Type
Contact Resistance
Dielectric Strength
Impedance
Insulation Resistance
Rated Voltage
VSWR
Mechanical
Cable O.D.
Cable Retention Force
Crimp size
Insertion Force
Lifetime
Locking Device
Mounting Direction
Chassis Shape
Cable anchoring

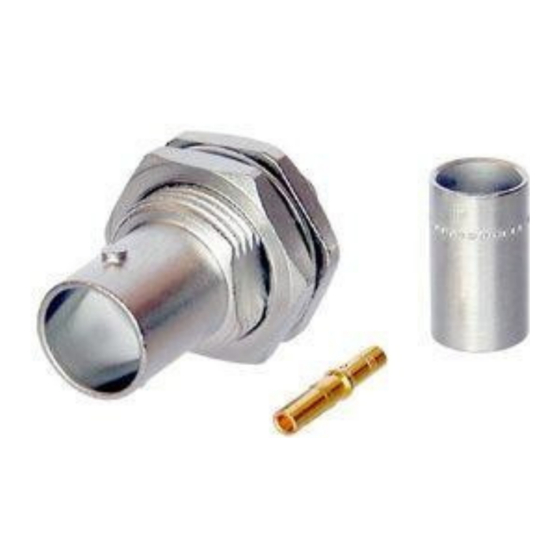

Neutrik - NBNB75GLP9
BNC 75 Ohm
Female
HD,SDI,Video,AES/EBU,Composit,YUV,RGB,RGBH,RGBHV
≤ 3 m (Inner)
1,5 kVdc
75
> 5 G
500 V
≤ 1.050 / > 32 dB up to 1 GHz
≤ 1.065 / > 30 dB up to 2 GHz
≤ 1.100 / > 26 dB up to 3 GHz
6.3 mm
> 30 N (Center)
6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
< 25 N
> 1000 Mating Cycles
Bayonett
Rear
12.7 mm
Jacket Crimping
Advertisement
Table of Contents
Related Manuals for NEUTRIK NBNB75GLP9
Summary of Contents for NEUTRIK NBNB75GLP9

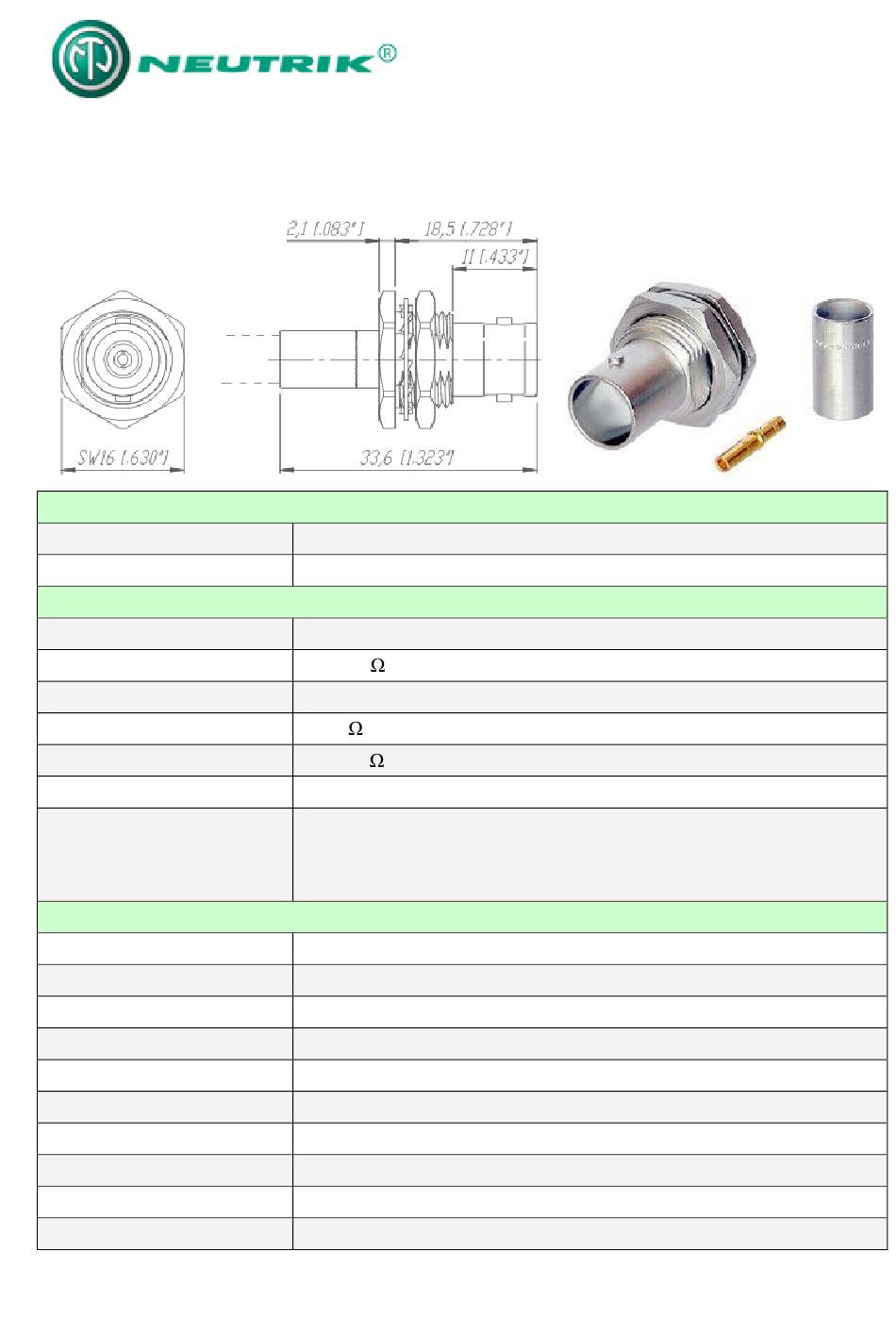

- Page 1 Neutrik - NBNB75GLP9 Product Connector Type BNC 75 Ohm Gender Female Electrical Signal Type HD,SDI,Video,AES/EBU,Composit,YUV,RGB,RGBH,RGBHV Contact Resistance ≤ 3 m (Inner) Dielectric Strength 1,5 kVdc Impedance Insulation Resistance > 5 G Rated Voltage 500 V VSWR ≤ 1.050 / > 32 dB up to 1 GHz ≤...
- Page 2 -30 °C to +85 °C Contact Crimpability Complies with IEC 60803 and IEC 60352-2 The BNC cable jack is a mountable panel version for grounded installations. Like all Neutrik BNCs it offers a true 75 design and is perfectly suitable for HD applications.
- Page 4 Pin flush to the insulator Crimp the ferrule with the tool (For best crimping-results it is recommended to use the original Neutrik tool - HXBNC with the corresponding insert) Please note: Position the connector body flush with the die face.
