Summary of Contents for Trotec PMTS 01-12V

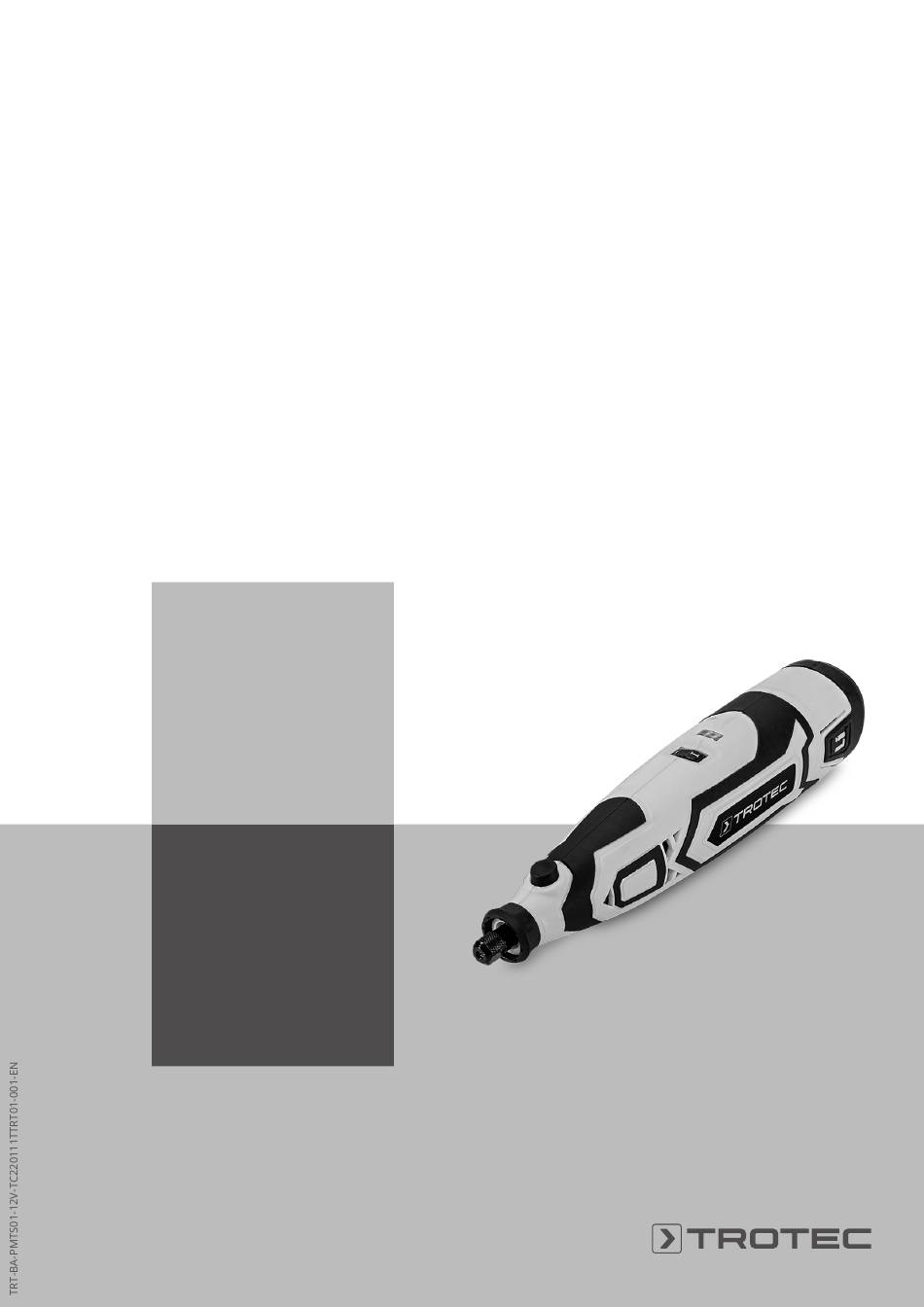

- Page 1 PMTS 01-12V ORIGINAL INSTRUCTIONS CORDLESS GRINDER...
-
Page 2: Table Of Contents
This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury. Note This signal word indicates important information (e.g. material damage), but does not indicate hazards. cordless grinder PMTS 01-12V... -
Page 3: Safety
Loose clothes, jewellery or long hair can be caught in moving parts. • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. cordless grinder PMTS 01-12V... - Page 4 • Only use the charger “PMTS 01-12V AC” for charging the accordance with these instructions. Take into account Li-Ion battery “PMTS 01-12V DC” with a capacity of 2.0 Ah the working conditions and the work to be performed. (3 rechargeable cells). The battery voltage must match the Use of the power tool for operations different from those battery charging voltage of the charger.
- Page 5 "live" and could give the Kickback is the result of power tool misuse and/or incorrect operator an electric shock. operating procedures or conditions. Kickback can be avoided by taking proper precautions as given below. cordless grinder PMTS 01-12V...
- Page 6 Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. cordless grinder PMTS 01-12V...
- Page 7 Observe the correct disposal of the battery! observing the technical data provided. This symbol indicates the following: We recommend using the power tool with original Trotec Ensure that the battery is disposed of correctly and accessories. never dispose of it in waste water or public waters.
- Page 8 "Removing in the vicinity. the battery". Wear eye protection and a dust mask! 3. Do not insert the battery if the device is defective. Warning Do not process materials containing asbestos. Asbestos is considered carcinogenic. cordless grinder PMTS 01-12V...
-
Page 9: Information About The Device
Plastic brushes (various shapes) Brass brush Polishing attachments Battery LED red: battery charging green: quick charger ready for operation Power adapter Tool holder with clamping nut Battery holder Battery level indication Setting wheel for speed selection cordless grinder PMTS 01-12V... - Page 10 Protection class II (double insulation) / Sound values according to EN 60745 Sound pressure level 67 dB (A) Sound power level 78 dB (A) Uncertainty K 3 dB Vibration information according to EN 60745 Vibration emission value a 0.916 m/s² Uncertainty K 1.5 m/s² cordless grinder PMTS 01-12V...
-
Page 11: Transport And Storage
– Only ship batteries if their housing is undamaged. – Mask open terminals with tape and pack the battery in a way that it cannot move inside the packaging. – Please also observe any other national regulations. cordless grinder PMTS 01-12V... -
Page 12: Start-Up
• Dispose of the packaging material according to the Allow the battery (5) to cool down to room temperature. national regulations. 5. Take the battery (5) out of the quick charger (6) by pressing and holding the release button (4) and pulling the battery (5) off the quick charger (6). cordless grinder PMTS 01-12V... - Page 13 1. Detach the battery (5) from the device by pressing and holding the unlocking button (4, I.) and pulling the battery off the device (II.). 2. If required, charge the battery (5) as described in the section Charging the battery. cordless grinder PMTS 01-12V...
- Page 14 3. Unscrew the clamping nut (26) in counter-clockwise direction using the wrench (7). 6. Screw the clamping nut (26) onto the collet chuck holder in clockwise direction (27) and tighten the clamping nut (26) using the wrench (7). Then let go of the spindle lock (1). cordless grinder PMTS 01-12V...
- Page 15 It is not necessary go of the spindle lock (1). to fully unscrew the clamping nut. 7. Make sure that the tool is attached securely. 4. Remove the tool from the tool holder (22), if any. cordless grinder PMTS 01-12V...
- Page 16 2. Press the spindle lock (1) button and keep it pressed. level at any time. 3. Unscrew the screw (28) from the mandrel by turning the 1. Turn the setting wheel (25) to the desired speed level. screw in counter-clockwise direction. cordless grinder PMTS 01-12V...
-
Page 17: Operation
• You'll obtain better results if the machining process not only involves one single work cycle, but if you move over the surface several times with the tool. cordless grinder PMTS 01-12V... - Page 18 • use the polishing attachments (19) Operating mode: Rust removal For remove rust from damaged areas, for instance in the motor vehicle sector: • use the brass brush (18) Operating mode: Cleaning For gently cleaning the surfaces: • uses the plastic brush (17) cordless grinder PMTS 01-12V...
-
Page 19: Available Accessories
• Store the device according to the Transport and storage chapter. • Check the quick charger for damage. If the quick charger is damaged, stop using it. Contact the Trotec customer Available accessories service. • Check the battery terminals for dirt. Remove any dirt. -
Page 20: Maintenance
Maintenance tasks which require the housing to be device back on. opened must only be carried out by authorised The tool is loose: specialist companies or by Trotec. • Make sure that the clamping nut (26) is tightened properly Notes on maintenance to the tool holder. -
Page 21: Disposal
Directive 2006/42/EC, Annex II, Part 1, Section A disposal regulations. We – Trotec GmbH – declare in sole responsibility that the product designated below was developed, constructed and The icon with the crossed-out waste bin on waste... - Page 22 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
