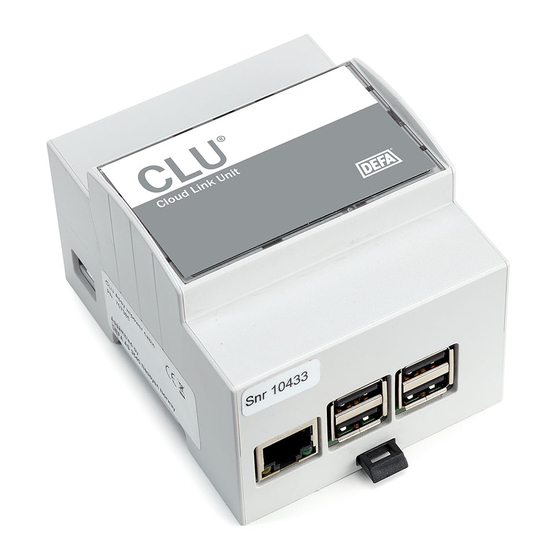

- Page 1 MK1 - Quick Guide ®...
- Page 2 INSTALL THE CHARGING STATION BUS COMMUNICATION WIRING INSTALL THE CLU CONFIGURATION TESTING AND VERIFICATION LABELING CLU MK1 - Quick Guide...
- Page 3 L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2 L3 * The CPPS is a datasheet which describes how phase distribution, addresses etc. in a CLU facility must be configured. It is includet with every CLU configuration and distributed by DEFA CLU MK1 - Quick Guide...
-
Page 4: Communication Wiring
BUS IN BUS OUT *For other combinations, see CLU MK1 installation manual chapter 9. CLU MK1 - Quick Guide CLU MK1 - Quick Guide... - Page 5 Treminal 6 incorrect wiring. * The CLU only supports a specific type of three-phase and single-phase energy meters and is not compatible with any other suppliers. Contact DEFA for specifications. CLU MK1 - Quick Guide CLU MK1 - Quick Guide...
- Page 6 230VAC 230VAC through a LAN cable. Make sure to place the antenna where there is sufficient reception. Connect the USB-RS232 to one of the four USB ports on the CLU. CLU MK1 - Quick Guide CLU MK1 - Quick Guide...
-
Page 7: Connecting To A Device
Configuration HOW TO INSERT THE SIM CARD INTO THE MODEM: Install the DEFA Charge Point Configurator (CPC) on a Windows computer or Android smartphone. Connect the configuration kit to the bus or an individual charge point, and a unit with the CPC software installed. -
Page 8: Configure The Controller
Charge Point Parameter Settings. Make sure that Baud rate is set to 38400, parity is set to NONE and stop bits are set to 1. Click Write to save settings. CLU MK1 - Quick Guide CLU MK1 - Quick Guide... - Page 9 CloudCharge OR LADE I NORGE: ® If the charging station is configured for online connection, contact DEFA support to verify connection to the back-end system. Velkommen DEFA test box for charging station. For å lade her må du laste ned CloudCharge-appen.
- Page 10 Se [navn] ved uttaket. Send SMS med uttakets [navn] til tlf: 59 44 00 63 ELISABETH LINA til 59 44 15 56 til 59 44 15 56 25 mm 25 mm 43 mm 43 mm CLU MK1 - Quick Guide...
- Page 11 Contact DEFA: Finland: Phone: +35 82 01 52 72 00 Norway: Phone: +47 32 06 77 00 Mail: connect@defa.com Sweden: Phone: +46 01 04 98 38 00 Mail: evsupport.se@defa.com defa.com 712316 - E01 - ES 20210423...
