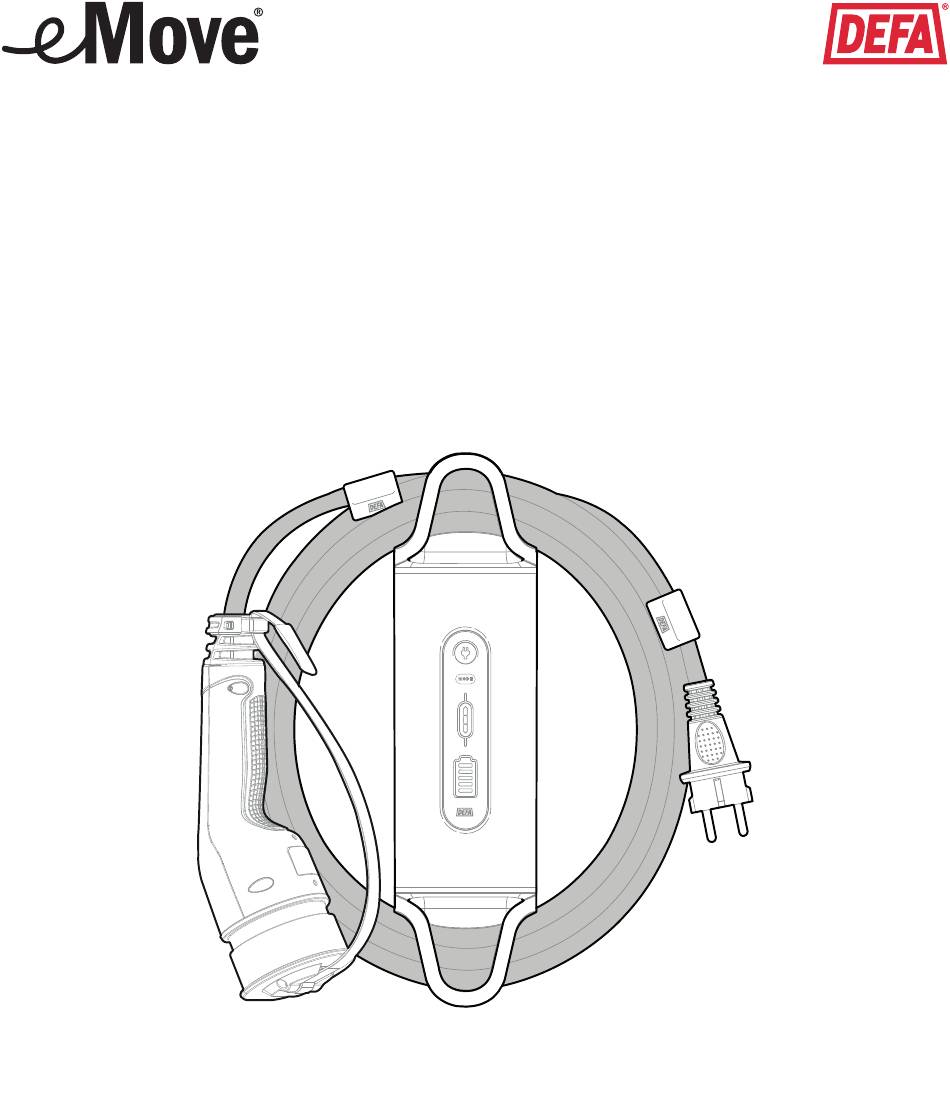

- Page 1 Portable Charger Mode 2 Type 2 13A (EN) User manual...
-
Page 3: Table Of Contents
Table of Contents Description ............................Safety information........................... Main parts ............................How to use the portable charger....................Display symbols on the control box ....................Set the required charging power....................Adjust Low mode manually......................Store and protect ..........................Maintenance and care........................Error detection and solutions......................Accessories and spare parts ...................... -
Page 4: Description
Description eMove Portable Charger is a premium charger for electric vehicles and plug-in hybrids. The Portable Charger has been created with the user in mind. Unique features, unmatched user friendliness, and extreme durability characterizes eMove Portable Charger. • Efficient cable management: Cable clips and guides keep the cable tidy. -
Page 5: Safety Information
Important! If the device fails to behave according to instructions, immediately contact an electrician, responsible vendor or DEFA, see chapter Contact information. Special notes DANGER Sections marked with this symbol draw attention to electrical voltages that represent a danger to life and limb. - Page 6 Do not expose the very hot temperat- charging of vehicle inlet while let is wet or plugs to a direct ures. vehicles. Do not charging. covered in snow. jet, or splashes of use it for any other water. purpose. defa.com...
- Page 7 Handle the portable charger with care and do not subject it to strong force or impact. Do not pull, twist, tangle, drag, or step on the cable. DANGER Ensure that the cable is never run over by a vehicle. Always hold the cable by the handle when pulling it. Do not pull the cable itself. defa.com...
- Page 8 • Always support the control box mechanically or manually. Do not let the control box hang from the domestic outlet unsupported. • Attach the plug cap to protect the vehicle plug when storing the portable charger. • Use the cable clips to coil the cable for storage or transportation. defa.com...
-
Page 9: Main Parts
E. Cable holder x 2 F. Cable clip x 2 G. Domestic plug Display view H. Power Input Indication J. Mode Button for power adjustment K. Charger Status Indica- tion L. Vehicle Connection In- dication Also included: Wall bracket defa.com... - Page 10 Plugs Vehicle plug Type 2 with plug cap and strap Domestic plug Type F Schuko defa.com...
-
Page 11: How To Use The Portable Charger
Wait until the automatic self-test is finished. The bars on Charger Status Indication will be solid white. Insert the vehicle plug into the vehicle inlet. Automatic self-test will start and is indicated with flowing lights on Charger Status Indication. The vehicle will start charging. defa.com... - Page 12 Proper connection The plug must be fully inserted into the inlet of vehicle. Failure to do so will prevent the vehicle inlet from locking the plug in place and start charging. defa.com...
- Page 13 Complete or stop the charging before unplugging. To stop charging before vehicle is fully charged, see the vehicle's manual. Always remove the plugs in the order described. Remove the vehicle plug from the vehicle inlet. Remove the domestic plug from the domestic outlet. defa.com...
-
Page 14: Display Symbols On The Control Box
Display symbols on the control box NOTICE To see animations that explains the different signals, go to www.defa.com or scan QR code on last page. Power Input Indication Indicates if the charger is connected to power or not. No light – Power off Light on –... - Page 15 Lights are lit in se- Pulsing - Vehicle Pulsing red - Error nection to vehicle Battery connected quence - Char- has communicated (no charging yet) ging* fully charged *The speed in which the lights are lit indicates which mode is used. defa.com...
-
Page 16: Set The Required Charging Power
If the control box or domestic plug becomes too hot during High mode, the current level will automatically reduce until lower temperature is detected. Charging power Normal mode 13 A High mode 15 A Low mode, factory set 8 A defa.com... -
Page 17: Adjust Low Mode Manually
The light on the display will indicate which level currently is chosen. When the desired level is reached, wait 5 seconds. The new level is now stored. The next time Low mode is used, this will be the pre-chosen level. defa.com... -
Page 18: Store And Protect
Wiggle and push the back of the control box onto the wall bracket. Slide downward to attach the control box on the wall bracket. Tip! Use the upper rear cable holder to hang the control box on a wall hook or a similar feature. defa.com... -
Page 19: Maintenance And Care
• Check the domestic outlet for damage and wear. • Remove the plug from the domestic outlet when the charger is not in use. Cleaning • Unplug the portable charger before start cleaning. • Use a damp cloth to clean. Do not use water or harsh chemicals. defa.com... -
Page 20: Error Detection And Solutions
This error state will display if there is a problem detected with the internal electronics of the control box. Try this • Check if the control box is hot to the touch. • Unplug the charger and wait a few minutes, then plug it in. • Contact DEFA, see chapter Contact Information. defa.com... - Page 21 • Unplug the charger and wait a few minutes, then plug it in. • Consult an electrician or contact DEFA, see chapter Contact information. This error state will display if there is a problem detected with the domestic power supply...
-
Page 22: Accessories And Spare Parts
Accessories and spare parts Accessories • Basic bag, Art. nr. 712593 • Premium bag, Art. nr. 712594 • Docking station, Art.nr. 712268 Spare parts • Wall bracket • Kit containing: cable clips and holder defa.com... -
Page 23: Technical Specification
310 x 85 x 55 mm Material control box (ICCB) Aluminium with double protected plastic end caps IP rating vehicle plug IP 67 IP rating control box (ICCB) IP 67 Weight 2.1 kg Certification IEC IEC 61851, IEC 62752, IEC 62196 Recycling EEE-waste defa.com... -
Page 24: Contact Information
Contact information If you have any questions, contact DEFA support: • Phone (Norway): +47 32 06 77 00 • Phone (Sweden): +46 10 498 38 00 • Phone (Finland): +358 (0)20 152 72 00 If you have any feedback on how the system or support can be improved, feel free to give us your input at connect@defa.com...
