Qty. Product
14
1

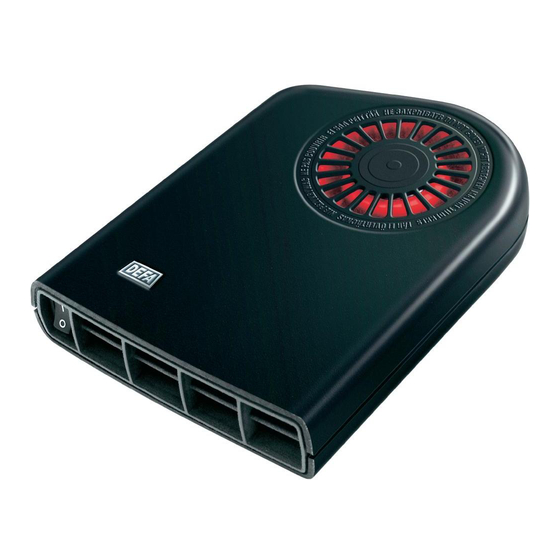

Termini™ - interior heater with holder
1
20
SmartStart™ - Remote control (hand-held timer)
2
1
SmartStart™ - VU = unit to install in the engine room
13
1
MultiCharger 1203 - battery charger/relay
1
16
Extension cable (0.5 m)
16
1
Extension cable (1.0 m)
15
1
Extension cable with interior heater plug (1.75 m)
1
17
DEFA MiniPlug cable (1.5 m)
18
1
Connection cable (2.5 m)
1
Wiring harness for SmartStart™ and MultiCharger/charger
Fastening accessories for MiniPlug
Qty. Product
1
Fastening nut
1
Flat washer for nut for curved surfaces
1
O-ring for fastening nut
1
Holder
1
Spacer for holder
2
Black stainless steel bolt M4x20 mm
2
Fastening bolts for PlugIn the holder (3x7 mm)
2
Fastening plugs for the holder
1
Self-tapping screw (4.2x13 mm)
Fastening accessories for other components
Qty. Product
3
Fastening bolts (3.5x16 mm) for Termini™ holder
8
Fastening strips (200 mm) for extension cable
1
Fuse holder with 5A fuse
1
MultiCharger cable (200 mm) between fuse holder and battery
1
Rubber bushing
1
Fastening bolt (4.2x16 mm) for MultiCharger holder to chassis
1
Fastening bolt (4.2x32 mm) for MultiCharger to holder
1
Holder for battery charger
4
1
Antenna fastening rail
Date:17/02/2011
Consists of
471250
Page 1/8
NM_471250_001_17022011_EN
Advertisement
Table of Contents
Related Manuals for DEFA WarmUp Termini 1350
Summary of Contents for DEFA WarmUp Termini 1350
- Page 1 MultiCharger 1203 - battery charger/relay Extension cable (0.5 m) Extension cable (1.0 m) Extension cable with interior heater plug (1.75 m) DEFA MiniPlug cable (1.5 m) Connection cable (2.5 m) Wiring harness for SmartStart™ and MultiCharger/charger Fastening accessories for MiniPlug Qty.
- Page 2 1. Disconnect the battery at the negative terminal. Read the instructions from the vehicle manufacturer before disconnecting the battery. 2. The engine heater is selected according to the model list from DEFA. Install the engine heater at the location as specified in the respective installation manual. Fill the vehicle’s cooling system with an approved coolant and bleed air out of the system in accordance with the instructions from the vehicle manufacturer.
- Page 3 Date:17/02/2011 Page 3/8 NM_471250_001_17022011_EN...
- Page 4 Installing Termini™ DEFA Termini™ is designed for permanent installation in the interior of the vehicle. Termini™ can also be installed in the bottom of the glove compartment (IIIb), on the centre console or on the A-pillar. The discharge opening may not be positioned face down (IIIc). Termini™ must be installed so that sufficient spacing is maintained.
- Page 5 If it is necessary to drill a hole in the firewall of the vehicle in order to feed through the DEFA extension cable into the interior of the vehicle from the engine compartment, extreme caution must be exercised. No holes may be drilled in double sheeting or reinforcements.
- Page 6 Drainage Regardless of whether DEFA MiniPlug is installed flush or with a holder, the contact should always be installed to the lid at a downward angle so that water (condensation) can drain. If the contact is installed at an upward angle, the lowest of three dampers MUST be opened for drainage (1).
- Page 7 Press the right button to return to the output menu with the next departure time. The complete operating manual is contained in the miniCD which is enclosed with SmartStart™ and it can also be accessed on our website (www.defa.com) under SmartStart Set correct language and push Ok...
- Page 8 Insufficient maintenance/care and improper or unintended use. The product has been tampered with, modified or repaired, or attempts to do so were made, by persons not affiliated with DEFA, without having first obtained written permission from DEFA to open, modify or repair the product.
