Tech Controllers EU-T-4.1 User Manual page 12

1
11
10

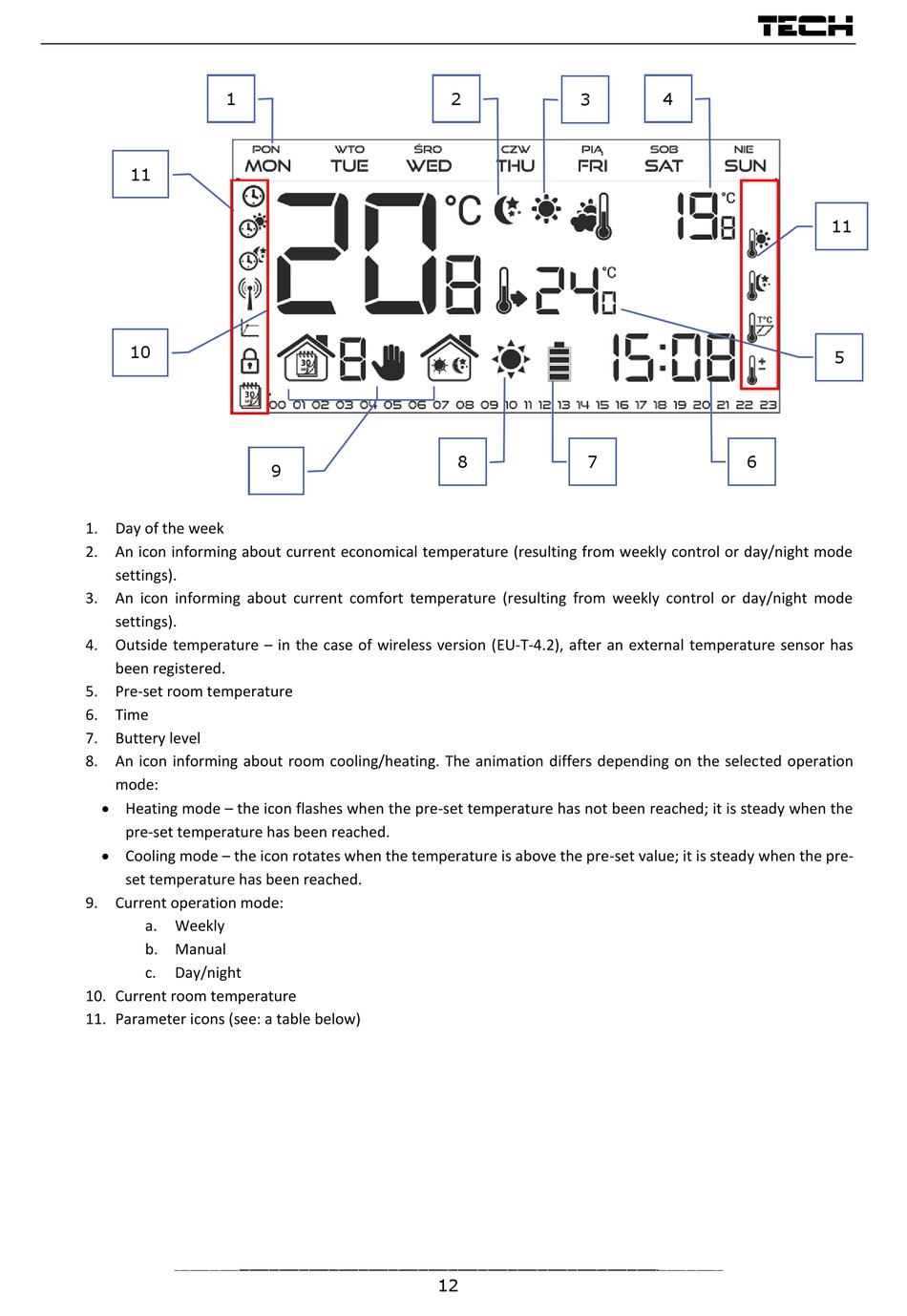

1. Day of the week
2. An icon informing about current economical temperature (resulting from weekly control or day/night mode
settings).
3. An icon informing about current comfort temperature (resulting from weekly control or day/night mode
settings).
4. Outside temperature – in the case of wireless version (EU-T-4.2), after an external temperature sensor has
been registered.
5. Pre-set room temperature
6. Time
7. Buttery level
8. An icon informing about room cooling/heating. The animation differs depending on the selected operation
mode:
 Heating mode – the icon flashes when the pre-set temperature has not been reached; it is steady when the
pre-set temperature has been reached.
 Cooling mode – the icon rotates when the temperature is above the pre-set value; it is steady when the pre-
set temperature has been reached.
9. Current operation mode:
a. Weekly
b. Manual
c. Day/night
10. Current room temperature
11. Parameter icons (see: a table below)
9
12
2
3
8 7
TECH
4
11
5
6
