Installation and maintenance guide

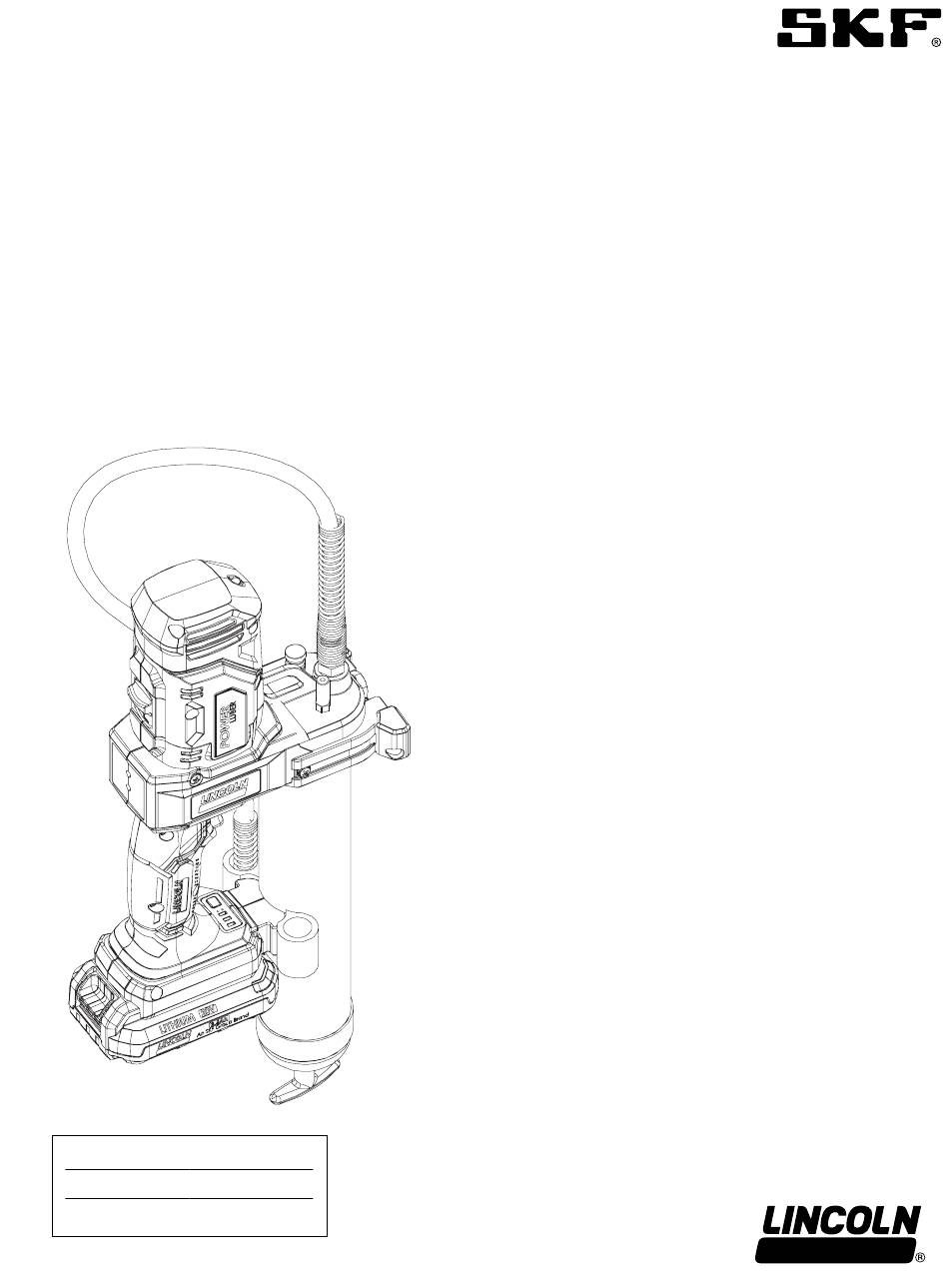

PowerLuber grease gun 20 v
(lithium ion)
1886, 1886E, 1888, series "A", base model 1890 original instructions
Date of issue
August 2019
Form number
400303
Version
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINCOLN 1886 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SKF LINCOLN 1886 Series

  • Page 1 Installation and maintenance guide PowerLuber grease gun 20 v (lithium ion) 1886, 1886E, 1888, series “A”, base model 1890 original instructions Date of issue August 2019 Form number 400303 Version...
  • Page 2: Table Of Contents

    Contents Explanation of signal words for safety Intended use Safety instructions General power tool safety warnings Work area safety Electrical safety Personal safety Power tool use and care Battery tool use and care Service Safety of others Speciic safety Residual risks Vibration Labels on battery charger Maintenance...
  • Page 3: Explanation Of Signal Words For Safety

    Explanation of signal words for safety NOTE Emphasizes useful hints and recommendations as well as information to prevent property damage and ensure eficient trouble-free operation CAUTION  Indicates a dangerous situation that may lead to light personal injury if precautionary measures are ignored WARNING ...
  • Page 4: Intended Use

    Intended use Safety instructions reduces the risk of electric shock NOTE The term "residual current This PowerLuber was exclusively designed device (RCD)" can be replaced by the General power tool safety to pump and dispense lubricant using term "ground fault circuit interrupter warnings 20 V battery power Do not exceed (GFCI)"...
  • Page 5: Power Tool Use And Care

    4 Power tool use and care 5 Battery tool use and care 6.2 Never service damaged battery 4.1 Do not force the power tool. Use 5.1 Recharge only with the battery packs. Service of battery packs correct power tool for your charger speciied by the should only be performed by the application.
  • Page 6: Residual Risks

    Maintenance WARNING NOTE  Do not use any hose not approved by Vibration emission value during actual PowerLuber has been designed to Lincoln Extreme pressure may cause use of power tool can differ from operate over long period of time with nozzle extension or whip hose to burst declared value depending on how tool is minimum of maintenance Continuous...
  • Page 7: Protect Environment

    Protect environment Safety instructions DANGER  for battery and Do not expose battery to spark or lame Do not dispose of Lincoln product with Battery liquid may burn charger household waste Make product available Do not splash or immerse in water or for separate collection other liquids This may cause premature Local regulations may provide for...
  • Page 8: Charger

    • Do not charge battery pack when CAUTION NOTE  temperature is below 40 °F (5 °C) or above Do not charge Lincoln model 1871 Do not attempt to replace charger unit 105 °F (40 °C) This is very important for battery packs with any other charger with regular main plug Charger is proper operation...
  • Page 9: Tool Use And Care

    Tool use and care Table 1 Speciications • Do not continue to hold down trigger if Basic PowerLuber model 1890 grease gun is stalled This could damage motor or cause ire • Disconnect battery pack from tool before Operating power 20 V Maximum operating pressure making any adjustments, changing...
  • Page 10: Description

    Description Operation Fig. 1 Normal operation Model 1890 PowerLuber is a lithium-ion battery-operated grease gun developed for Prime manual lubrication of grease points • Tool’s trigger turns on LED and motor PowerLuber is driven by a small, low- • Short stroke of trigger turns on LED only voltage electric motor that is connected to a •...
  • Page 11: Change L Or H Mode

    Change L or H mode Fig. 3 1890 series PowerLuber grease gun To change mode of operation: NOTE Completely stop motor before changing lever to L or H (low or high) mode of operation to prevent damage to gears in transmission L (low output/high pressure) H (high output/low pressure) When motor is not running, push gear...
  • Page 12: Replace Grease Cartridge Or Reill Tube

    Replace grease Install grease cartridge Fill gun from cartridge or bulk container 1 Unscrew grease tube assembly reill tube from PowerLuber 2 Pull back on follower handle and latch 1 Remove pump assembly from grease Prime PowerLuber after each reill or grease follower rod groove into slot on tube cap tube assembly cartridge change...
  • Page 13: Fill Gun With Iller Pump

    Fig. 4 Fill gun with Expel air pockets iller pump (air purging) 1 Engage follower rod with follower by rotating 1 Withdraw follower rod from grease tube follower handle assembly cap 2 Insert gun bulk ill valve into iller 2 Engage follower rod with follower by pump socket rotating follower handle 3 Operate iller pump to ill container...
  • Page 14: Charger Operation

    Charger operation 3 Battery should be recharged when it fails NOTE to produce suficient power on jobs Do not obstruct vent slots in top or bottom of charger Charging Do not charge battery when battery pack temperature is below 40 °F (5 °C) or above 104 °F (40 °C) NOTE Do not continue to use under these...
  • Page 15: Exploded Views

    Fig. IPB 1 11, 12...
  • Page 16 Fig. IPB 2...
  • Page 17: Parts List

    Table 5 Parts list Item Description Part number Follower assembly kit 272072 Packing 34793 Pump assembly kit 280330 Gasket (hose) kit 271884 Hose in ID x 42 in 1248HP Hardware kit (1260) 280213 Handle with screws kit 280332 Trigger, switch kit 280235 Electrical components kit 280331...
  • Page 18: Troubleshooting

    Table 6 Troubleshooting Condition Possible cause Corrective action PowerLuber fails to dispense grease Grease tube assembly is out of grease Check that grease tube assembly (14) has grease Loss of prime Repeat priming operation Ball check is not functioning Remove check ball (25) Clean and inspect ball seat area Clogged whip hose Clean or replace whip hose (5)
  • Page 19: Declaration Of Conformity

    Declaration of Declaration of Declaration of conformity according conformity as deined conformity as deined to EMC directive by machinery by machinery 2014/30/EU directive 2006/42/EC directive 2006/42/EC and low voltage We declare that the model of the We declare that the model 1871 battery directive 2014/32/EU PowerLuber grease gun 1886E, complies charger in the version supplied by us...
  • Page 20: Warranty
