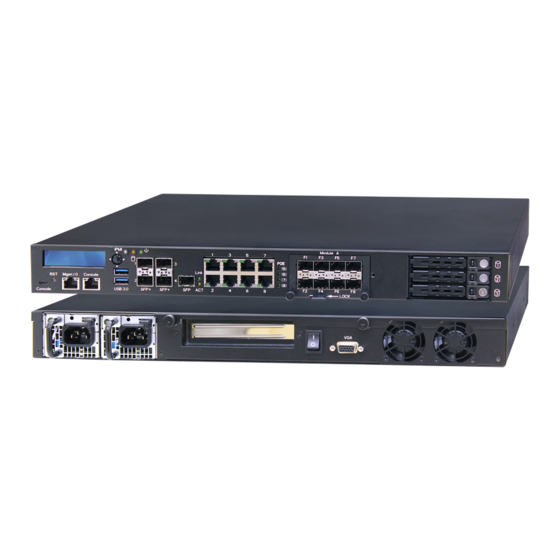

ANR-DNV3N3
Networking 1U Rackmount
®
• Intel
Denverton
• 10 GbE Copper
(2-pair bypass, up to optional 4x PoE)
• 2 or 4 10GbE Fibber
User Manual
Acrosser Technology Co., Ltd.
www.acrosser.com
ANR-DNV3N3 Series
®
SoC
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANR-DNV3N3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acrosser Technology ANR-DNV3N3 Series

Summary of Contents for Acrosser Technology ANR-DNV3N3 Series

  • Page 1 ANR-DNV3N3 Series ANR-DNV3N3 Series Networking 1U Rackmount ® ® • Intel Denverton SoC • 10 GbE Copper (2-pair bypass, up to optional 4x PoE) • 2 or 4 10GbE Fibber User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
  • Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    ANR-DNV3N3 Series Table of Contents 1. System Introduction ..............5 1.1. Models Description ..................... 5 1.2. Specifications ......................6 1.3. Package Contents ...................... 8 1.4. System Dissection ...................... 9 1.4.1. Dimensions ..................... 9 1.4.2. Front I/O Panel ....................10 1.4.3. Rear I/O Panel ....................11 2.
  • Page 4 4.3.5. Power Supply Unit (PMBUS) ................ 43 4.3.6. Pmbus Command Code Summary ............... 44 4.3.7. Chassis Opened .................... 47 4.3.8. Notes ......................48 5. FAQ ....................49 Q 1. Where is the serial number located on my system? ..........49 Acrosser Technology Co., Ltd.

  • Page 5: System Introduction

    ANR-DNV3N3 Series System Introduction ® The ANR-DNV3N3 series networking product is based on Intel Atom C3000, powerful and scalable for vary application scenarios. This product provides a flexible system expansion versatility by supporting Intel Atom C3558 to Atom C3958(4-16 core) with 9x GbE copper LANs, 1x GbE fiber and 2x 10G fiber networks(SFP+).

  • Page 6: Specifications

    • Up to 4 port PoE(via LAN[5:8]Copper) (For C3758) • SoC embedded SFI x2, SFP+[1:2] or • SoC embedded SFI x4, SFP+[1:4] LAN bypass (2-pair) • LAN bypass by LAN[1-2, 3-4] Storage SATA • 3x SATA socket CFast • 1x CFast socket Acrosser Technology Co., Ltd.
  • Page 7 ANR-DNV3N3 Series Front Panel • 3x 2.5” SATA3 SATA[1:3] Hot-swappable Bay • 1x Graphic LCM Display • 1x Navigation Joystick for LCM • 2x USB 3.0 • 3x SYSTEM LED • 1x RESET Button • 1x USB-console (Micro-B) • 1x RJ-45-console •...

  • Page 8: Package Contents

    • IEC 60068-2-64, 5~500Hz, 3GRMS Drop Test • ISTA-2A 2006 1.3. Package Contents Check if the following items are included in the package. Item Q’ty ANR-DNV3N3 Series System � Console Cable (RJ-45 to Serial) � Rackmount Bracket � CD with Driver and Manual �...

  • Page 9: System Dissection

    ANR-DNV3N3 Series 1.4. System Dissection 1.4.1. Dimensions (Unit: mm) www.acrosser.com...

  • Page 10: Front I/O Panel

    LCM menu control buttons • IPMI IPMI Indicator (Green) • HDD Activity Indicator (Yellow) • Power Indicator (Green) • Bypass LAN Bypass LED • USB 3.0 USB 3.0 Port • SFP+ 1 ~ 4 SFP+ LAN Port Acrosser Technology Co., Ltd.

  • Page 11: Rear I/O Panel

    ANR-DNV3N3 Series • SFP Port, Link/Active LED • LAN 1~8 LAN 1~8 Port • PoE Power PoE Power LED 1.4.3. Rear I/O Panel AC Inlet AC Inlet Expansion Card Slot Power Switch • AC Inlet 1U Redundant ATX PSU •...

  • Page 12: Components Assembly

    Please follow the instruction to install the inner modules. 2.1. PCIe Card Installation Step 1: Remove the screw that lock the cover shield. Take out the cover shield. Step 2: Install your PCIe card. Pay attention to its orientation. Acrosser Technology Co., Ltd.

  • Page 13: Nim Module Insertion

    ANR-DNV3N3 Series Step 3: Secure the PCIe card by #1 head screw driver. 2.2. NIM Module Insertion The products shown in this procedule are used for illustration only, may not reflect the exact outlooks. Step 1: Remove the screw that lock the dummy cover on Module A slot.
  • Page 14 ANR-DNV3N3 Series Step 2: Open the dummy cover. Insert your NIM module into the Module A slot. Firmly push it all the way Step 3: Step 4: Push the latch left. This will lock the module. Acrosser Technology Co., Ltd.
  • Page 15 ANR-DNV3N3 Series Step 5: Use your fingers to lock back the screw. Or you may use a screw driver to lock back the screw. www.acrosser.com...

  • Page 16: Hdd Installation

    To install your HDD into the system: Step 1: Push the latch right to open the open the HDD’s cover. Step 2: Insert your HDD into the HDD bracket from aside. Pay attention to its orientation. The pin side should face inward. Acrosser Technology Co., Ltd.
  • Page 17 ANR-DNV3N3 Series Step 3: Prepare the screw pack. Fasten the HDD with 4 screws. Step 4: Ready to insert your HDD assembled with bracket into the system. www.acrosser.com...
  • Page 18 ANR-DNV3N3 Series Step 5: Firmly push the HDD bracket into the chassis. Make sure to close the door hatch. Step 6: Take the door key from the screw pack to lock the HDD bracket. Acrosser Technology Co., Ltd.

  • Page 19: Rack Installation

    ANR-DNV3N3 Series 2.4. Rack Installation Step 1: Secure both left and right 1U mounting ears to the server’s front panel chassis with your Phillips screwdriver. www.acrosser.com...

  • Page 20: Bios Settings

    Version 2.19.1266. Copyright (C) 2020 American Megatrends, Inc. Note: Listed at the bottom of the menu are the control keys. If you need any help with the item fields, you can press <F1> key, and it will display the relevant information. Acrosser Technology Co., Ltd.
  • Page 21 ANR-DNV3N3 Series • Total Memory This item displays the total size of memory available in the system. • System Date/System Time Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields.

  • Page 22: Advanced Setup

    F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2020 American Megatrends, Inc. • Pair0 System On Each Pair Lan[a] and Lan[b] Bypass State Setting, System On /System off /WDT timeout State. Acrosser Technology Co., Ltd.

  • Page 23: Advanced Setup: W83627Dhg Super Io Configuration

    ANR-DNV3N3 Series [Normal] Lan[a] and Lan[b] work on normal mode. [Bypass] Lan[a] data will bypass to Lan[b]. 3.2.2. Advanced Setup: W83627DHG Super IO Configuration Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Advanced W83627DHG Super IO Configuration Set Parameters of...

  • Page 24: Advanced Setup: W83627Dhg Hw Monitor

    +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2020 American Megatrends, Inc. • Smart Fan Mode Configuration Enable or Disable Smart Fan. Acrosser Technology Co., Ltd.
  • Page 25 ANR-DNV3N3 Series Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Advanced Smart Fan Mode Configuration Smart Fan Mode Select Smart Fan Mode [Thermal Cruise Mode] FAN Target Temperatur FAN Tolerance →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.

  • Page 26: Advanced Setup: Serial Port Console Redirection

    Putty KeyPad [VT100 →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2020 American Megatrends, Inc. Acrosser Technology Co., Ltd.
  • Page 27 ANR-DNV3N3 Series • Terminal Type Use this item to select the preferred terminal emulation type for out-of-band management. • Bits per second Use this item to select the serial port transmission speed. The speed used in the hostcomputer and the client computer must be the same. Long or noisy lines may require lowertransmission speed.

  • Page 28: Advanced Setup: Network Stack Configuration

    Ipv6 HTTP Support Enable or disable the Ipv6 HTTP support. • PXE boot wait time Click ESC key to cancel the PXE boot wait time. • Media detect count Set up the media detecting wait time by seconds. Acrosser Technology Co., Ltd.

  • Page 29: Advanced Setup: Csm Configuration

    ANR-DNV3N3 Series 3.2.6. Advanced Setup: CSM Configuration Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Advanced Compatibility Support Module Configuration Enable/Disable CSM Support. CSM Support [Enabled] Boot option filter [UEFI only] Option ROM execution Network [Do not launch]...

  • Page 30: Advanced Setup: Usb Configuration

    Select Enabled for USB Mass Storage Driver support. • Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. Acrosser Technology Co., Ltd.

  • Page 31: Intelrcsetup

    ANR-DNV3N3 Series 3.3. IntelRCSetup Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Processor Configuration Displays and provides South Bridge Chipset Configuration option to change the Processor settings →←: Select Screen ↑↓: Select Item...

  • Page 32: Intelrcsetup: South Bridge Chipset Configuration

    ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2020 American Megatrends, Inc. • SATA Configuration Configuration of SATA Controller. Acrosser Technology Co., Ltd.

  • Page 33: Intelrcsetup: Sata Port

    ANR-DNV3N3 Series 3.3.3. IntelRCSetup: SATA Port Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit SATA Port Configuration of SATA M.2 SATA Port Controller port →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.

  • Page 34: Security Setup

    Version 2.19.1266. Copyright (C) 2020 American Megatrends, Inc. • Setup Administrator Password Press Enter to create a new, or change an existing Administrator password. • User Password Press Enter to create a new, or change an existing User password. Acrosser Technology Co., Ltd.

  • Page 35: Boot Setup

    ANR-DNV3N3 Series 3.5. Boot Setup Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Boot Configuration Select the keyboard Bootup NumLock State [On] NumLock state Quiet Boot [Disabled] Boot Option Priorities Driver Option Priorities →←: Select Screen...

  • Page 36: Save & Exit Setup

    • Boot Override This feature allows the user to override the Boot Option Priorities sequence in the Boot menu and immediately boot the system with another device specified by the user. This is a onetime override. Acrosser Technology Co., Ltd.

  • Page 37: Software Installation And Programming Guide

    ANR-DNV3N3 Series Software Installation and Programming Guide 4.1. Introduction 4.1.1. Environment This test utility develop based on kernel 4.8 above (Ubuntu 18.04.1 Desktop 64bit). 4.1.2. GPIO The ANR-DNV3N3 provides GPIO interface. Users can use the GPIO APIs to Control GPO Pin.

  • Page 38: Chassis Opened

    3. Libw83627.a The static library for linux. 4. Libw83627.so The dynamic library for linux. 5. Install_driver This file is linux shell script file. Run this file can help you install environment and modprobe driver on linux. Acrosser Technology Co., Ltd.

  • Page 39: Api List And Descriptions

    ANR-DNV3N3 Series 6. readme Use this utility first. Please read the readme file first. 4.3. API List and Descriptions 4.3.1. GPIO Syntax: Get_gpi_status(int pin) Description: Get the status of GPIO input pins status. Parameters: This function fills in an integer variable as the parameter.

  • Page 40: Lan Bypass Subsystem

    0: bybpass, 1: normal, -1: fail. Syntax: int set_bypass_poweron_action(int pair, int action) Description: This function can set which pair bypass power on action. Parameters: pair: 1-4, action: 0: bypass, 1: normal. Return Value: 0: Successful, -1: fail. Acrosser Technology Co., Ltd.

  • Page 41: Lcd Control Module

    ANR-DNV3N3 Series Syntax: int get_bypass_poweron_action(int pair) Description: This function can get which pair bypass power on action. Parameters: pair: 1-4. Return Value: 0: bybpass, 1: normal, -1: fail. Syntax: int set_bypass_poweroff_action(int pair, int action) Description: This function can set which pair bypass power off action.
  • Page 42 0x0F is Down key Syntax: void set_lcm_displayoff(void) Description: This function can turn off lcm display. Parameters: None. Return Value: None. Syntax: Void set_lcm_displayon(void) Description: This function can turn on lcm display. Parameters: None. Return Value: None. Acrosser Technology Co., Ltd.

  • Page 43: Power Supply Unit (Pmbus)

    ANR-DNV3N3 Series Syntax: Void get_lcm_firmware_ver( unsigned char *data) Description: This function can get LCM PIC Version. Parameters: lcm pic version will save the unsigned char pointer parameters. Return Value: None. Syntax: Void set_lcm_default_graphic(void) Description: This function can set LCM setting to default.

  • Page 44: Pmbus Command Code Summary

    READ_5V_IOUT Read Linear READ_5V_POUT Read Linear Buzzer_Mute (4) R/W Byte Note 1: Status will retain the last occurrence. Latch defined as the status. Must be cleared through the 03h (CLEAR_FAULTS) command. Please See the following Table. Acrosser Technology Co., Ltd.
  • Page 45 ANR-DNV3N3 Series Command Status Name Status action STATUS_WORD Latch STATUS_VOUT Latch STATUS_IOUT Latch STATUS_TEMPERATURE Latch STATUS_OF_3V3 And 5V Latch PSU_STATUS Automatic recovery Note 2: READ_TEMPERATURE_1 should provide the PDB Inlet Ambient temperature. Note 3: Read Total Power command only at +12 V, 3V3, 5V total power.
  • Page 46 5V_IOUT > Max Current of 130%@ 1Sec = 1 ; 5V_OC_ FAULT Normal = 0 3V3_IOUT > Max Current of 130%@ 1Sec = 1 ; 3V3_OC_FAULT Normal = 0 5V_UV_WARNING VOUT < 4.5V = 1 ; Normal = 0 Acrosser Technology Co., Ltd.

  • Page 47: Chassis Opened

    ANR-DNV3N3 Series 3V3_UV_WARNING VOUT < 3.0V = 1 ; Normal = 0 5V_OV_WARNING VOUT > 5.5V = 1 ; Normal = 0 5V_IOUT > Max Current of 110%@ 1Sec = 1 ; 5V_OC_WARNING Normal = 0 3V3_OV_WARNING VOUT > 3.6V = 1 ; Normal = 0 3V3_IOUT >...

  • Page 48: Notes

    Parameters: None. Return Value: 0: Successful, -1: Fail Syntax: void lib_close(void) Description: if library not use on your program, please call this function. Parameters: None. Return Value: None. Acrosser Technology Co., Ltd.

  • Page 49: Faq

    ANR-DNV3N3 Series Q 1. Where is the serial number located on my system? • The serial number (S/N) is an alpha-numeric character located on the bottom or side chassis. (for reference only) www.acrosser.com...
  • Page 50 ANR-DNV3N3 Series Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
  • Page 51 Acrosser Headquarters Acrosser Nanjing Office 241新北市三重區光復路一段61巷26號10樓 欣扬通电子有限公司 南京办事处 江苏省南京市江宁区天元东路228号504室 10F., No.26, Ln. 61, Sec. 1, Guangfu Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241, Taiwan Room 504, No. 228, Tian Yuan East Rd., (R.O.C.) Jiang Ning Dist., Nanjing City, Jiangsu Province, TEL: +886-2-29999000 China (Postal: 211100) FAX: +886-2-29992887 / +886-2-29993960...
