Page 1: Table Of Contents

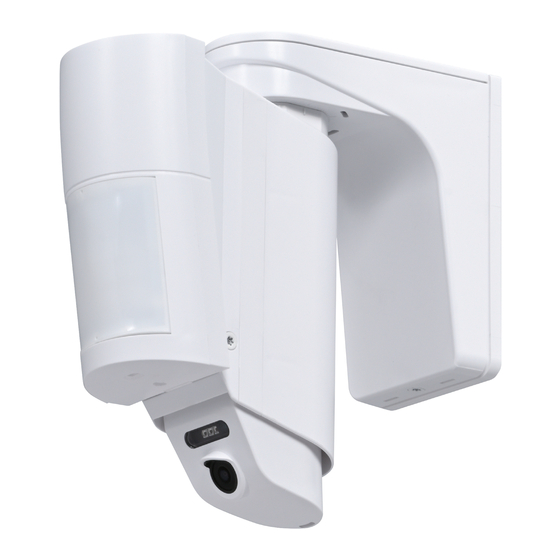

59-3063-1 2212-27 INSTALLATION INSTRUCTIONS INS-QXI-ST INS-QXI-ST VISUAL VERIFICATION PIR CAMERA series << Contents >> Page Before installation - Manufacture's statement - Parts identification - Accessories Step Installation 1-1. Remove the mounting plate 1-2. Install the mounting plate using 2 screws 1-3.
Page 2: Before Installation
Before installation - Manufacture's statement Symbol Meaning Symbol Meaning Failure to follow the instructions provided Warning with this indication and improper handling Nix sign indicates prohibition. may cause death or serious injury. Failure to follow the instructions provided Check mark indicates recommendation. Caution with this indication and improper handling may cause injury and/or property damage.
Page 3: Step 1 Installation
Step Installation 1-1. Remove the mounting plate 1-2. Install the mounting plate using 2 screws Hook the fall prevention wire. Caution NOTE To pass cables through the wall, drill a 25 mm (1") or larger hole in the wall. Use a single gang box for exposed wiring.
Page 4: Connect Cables To The Device
Step Installation 8-pin I/O cable 1-3. Connect cables to the device. Pink Tamper Orange Yellow Alarm Brown Caution Green Do not connect to the N/A terminal. Purple Black It can be also used as a Power back up for POE NOTE Only the connector can be fixed inside the body with double-sided...
Page 5: Dhcp Enabled
If you do not have a DHCP server, it will set as follows after one minute. Initial address: Refer to the label on the InSight User name: root Default password: OPTEX Change your password as appropriate. InSight Camera manual Download IP installer;...
Page 6: Camera Angle And Pir Area Settings
Step Camera angle and PIR area settings Changing for each item in this step is optional. Check the default settings and if no changes are required, proceed to the next item. 4-1. Horizontal adjustment Adjust PIR area direction Remove the Back cover. Raise the Back cover up.
Page 7 Step Camera angle and PIR area settings Camera angle adjustment Loosen screws to adjust camera angle Angle can be adjusted by sliding the camera vertically. 20°min. Default 30° 35°max.
Page 8: Pir/Vca Settings
Camera angle and PIR area settings 4-3. PIR/VCA settings Refer to the InSight VCA manual for details on PIR and VCA area settings. https://navi.optex.net/manual/50426/en/?type=VCAmanual Caution If the vertical angle of the camera is to be adjusted, adjustment of this sections must be matched to ensure the best performance of the sensor.
Page 9: Pir Area Masking
Step Camera angle and PIR area settings 4-4. PIR area masking The default settings are 12.0 m (40') 120° wide. If no masking of the detection area is required, proceed to the next item. Open the PIR cover Lock screw (Use as necessary) * Remove before, if used.
Page 10: Switch Settings
Step Camera angle and PIR area settings 4-5. Switch settings Set the DIP switch 1 to 4, as necessary. High Super High Middle Default Future use PIR sensitivity Alarm output N.O. N.C. Do not change * Default Alarm output must be kept to N.C.
Page 11: Checking
Step Checking 5-1. Walk test DIP switch No. 1 Turn LED back ON, if it was turned OFF ( , Default ON). Close the PIR cover. Walk around the detection area to make sure it is set as intended. If necessary, turn LED OFF again. Fix the PIR cover with the cover lock screw included in the housing, after completion as necessary.
Page 12: Others
Others Others - Specifications Model INS-QXI-ST Passive infrared Detection method 12.0 m (40') 120°wide PIR coverage 40 zones PIR zones Detectable speed 0.3 to 2.0 m/s (1' to 6'7"/s) Sensitivity 2.0℃ ( 3.6°F) at 0.6 m/s PoE (IEEE 802.3af compliant) Power input Mini-jack 12 V DC 420 mA max.
Page 13: Detection Area
Others - Detection area Top view 40 ft. 7.5 m 25 ft. Camera 7.5 m 25 ft. 12 m Side view 40 ft. 2.2 m 7’3” 2.7 m 8’11” 12 m Caution Pet alley can not be set because the camera performance is not fully exhibited. Do not slide the main unit of the detector.
Page 14: Compliance
Installation of this product, producing image, monitoring, recording with camera and handling of personal information or data shall all be performed under discretion and responsibility of user of this product, and OPTEX shall not be held liable for any dispute between a user and a third party. FCC notification This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 15: How To Reset To The Factory Default
OPTEX CO., LTD. (JAPAN) www.optex.net OPTEX INC./AMERICAS HQ (U.S.) OPTEX SECURITY SAS (France) OPTEX KOREA CO.,LTD. (Korea) www.optexamerica.com www.optex-europe.com/fr www.optexkorea.com OPTEX (EUROPE) LTD./EMEA HQ (U.K.) OPTEX SECURITY Sp.z o.o. (Poland) OPTEX (DONGGUAN) CO.,LTD. www.optex-europe.com www.optex-europe.com/pl SHANGHAI OFFICE (China) www.optexchina.com OPTEX SECURITY B.V.
