BESTSTAND®
S I T - T O - S T A N D L I F T
M o d e l : S A 2 2 8 / S A 2 2 8 H / S A 1 8 2 / S A 1 8 2 H
Ensure the product has been assembled according to the instructions in this
manual. All operators should read and understand the instructions for safe and
proper operation of the patient lift.
SA182 model shown
Advertisement
Table of Contents
Related Manuals for Bestcare BESTSTAND SA228
Summary of Contents for Bestcare BESTSTAND SA228
- Page 1 BESTSTAND® S I T - T O - S T A N D L I F T M o d e l : S A 2 2 8 / S A 2 2 8 H / S A 1 8 2 / S A 1 8 2 H SA182 model shown Ensure the product has been assembled according to the instructions in this manual.
-
Page 2: Date Of Manufacture
Thank you for choosing Bestcare! To better serve you, please record the following information for future use: Supplier Name: ___________________________________________ Supplier Telephone: ________________________________________ Product Serial Number: _____________________________________ Date of Purchase: _________________________________________ Date of Manufacture ® BestStand SA182 The manufacturing date can be found on the serial number... -
Page 3: Product Description
Product Description The BestStand® SA182 and SA228 allow the patient to be lifted and transferred safely with minimal physical effort provided by the operator. The SA182 and SA228 use an electric actuator to lift patients weighing up to 400lbs and 500lbs, respectively, from a sitting to a standing position from either a bed or a chair for transferring. -
Page 4: Definitions & Symbols
DEFINITIONS & SYMBOLS n this manual the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer. Symbols used in this manual and on the product and their meanings: Warning! Failure to heed this warning may Do Not Bleach. -
Page 5: Safety Instructions
• While being lifted in a sling, always keep the user/patient centered over the base and facing the caregiver operating the lifter. • Never leave the user/patient unattended during lifting. Service personnel may contact Bestcare for any information, instructions, or certain parts for servicing purpose. - Page 6 • DO NOT replace any components of the lift without consulting with Bestcare, and must follow proper instruction from Bestcare when replacing any components. • DO NOT service any parts of the lift while in use with a patient.
-
Page 7: Features And Overview
PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED. - Page 8 SA182/ SA228/ SA182H SA228H mm (in) mm (in) A 1500.5 (59.1) 1500.5 (59.1) 559.7 (22.0) 559.7 (22.0) 940.7 (37.0) 940.7 (37.0) 19.8 (0.8) 19.8 (0.8) 386.8 (15.2) 386.8 (15.2) 816.1 (32.1) 816.1 (32.1) 749.8 (29.5) 749.8 (29.5) 547 (21.5) 547 (21.5) 291.9 (11.5) 291.9 (11.5) 646.3 (25.4)
-
Page 9: Specifications And Options
13.9” 13.9” Lift Weight Unloaded (kg) 48.9 46.1 50.3 46.1 * Bestcare is committed to continuous improvements of our products, therefore the specifications, dimensions, and features listed above are for guidance only and are subject to change without prior notice. - Page 10 Actuator may vary based on the lift model SA182 TC12 Control Box TA1 Actuator SA228 TC12 Control Box TA24 Actuator SA182H SA228H No Control Box SA Hydraulic Pump...
- Page 11 Installation Step 1: Base and Mast Step 2: Boom...
- Page 12 Step 3: Footplate Step 4a: Actuator (For SA182 and SA228 Only) It is critical to have the motor part of the actuator to face the same direction as the big arrow as follows.
- Page 13 Step 4b: Hydraulic Pump (For SA182H and SA228H Only)
- Page 14 Step 5: Knee Pad...
- Page 15 Step 6: Power Control Unit (For SA182 and SA228 Only) M5 SCREWS M4 SCREWS 2920 PACIFIC DRIVE UNLESS OTHERWISE SPECIFIED: NORCROSS, GA 30071 ALL DIMENSIONS IN MM DRAWN BY: DATE:...
- Page 16 Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Clear Contact Plastic Cover Charger DC In Not Used Additional Battery Pack (Optional) Actuator Hand Control Charging Cradle (Optional) 1. Connect Actuator as shown above. 2.
- Page 17 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
- Page 18 Release Pressed in LCD Display Panel Signs Turn the emergency stop button clock-wise, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
- Page 19 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
- Page 20 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
- Page 21 Stand Assist Hydraulic Pump Unit Operating Instruction Piston To raise the boom: -Turn the release tab counter-clockwise until it stops. -Use the handle bar to pump the piston Release Tab To lower the boom: The release tab controls the speed of the piston as it’s lowering.
- Page 22 Available slings compatible with Stand Assist Lift Stand Assist Sling Sling Model Sling Size SL-SA662 SL-SA663 SL-SA664 Stand Assist Buttock Strap Sling Model Strap Size SL-SA669 Standard SL-SA669B Bariatric Sling Model Sling Description Knee Belt WP-SA400E-KB Stand Assist Toileting Sling Sling Model Sling Size SL-TP331...
- Page 23 FITTING STAND ASSIST SLING • Position the patient in a sitting position. • Slide the sling down patient’s back to lumbar position. • Draw the shoulder straps to the front of the patient close to the chest. • Draw the waist belt around patient’s waist and press together to fasten. Attach the shoulder straps to the hooks.
- Page 24 FITTING STAND ASSIST BUTTOCK STRAP DIAGRAM 1 • Check sling weight capacity for the patient being lifted. Do not exceed maximum safe working load. • Review the following procedures, and “FITTING STAND ASSIST SLING” procedures from previous page carefully prior to attempting lift. Call with any questions.
- Page 25 LIFT AND TRANSFER FROM BED • Fit sling as described in “Fitting Stand Assist Sling”. • Push lift towards patient. Open the base of the lift. • Position patient’s feet on the footplate and knees against the knee pad. • Attached the sling straps to the hooks. •...
- Page 26 LIFT AND TRANSFER FROM COMMODE BESTCARE TOILETING SLING The Bestcare Toileting Sling is be used with the BestStand® to lift up a patient in a sitting position; it is not meant for the patient to be standing! The Toileting Sling supports the client...
-
Page 27: Maintenance And Inspection
• Note – Bestcare assumes that the assembly instructions were performed properly and The Bestcare Lift requires a minimum of service to keep it in proper working order and to assure safe operation. It by a qualified individual. Bestcare also assumes that the operator of the lift has been is important that certain basic checks be performed periodically by the operator of the lift or by a qualified bio-med properly trained, reviewed all the training material and knows how to operate the lift. -
Page 28: Cleaning And Disinfecting
• REPLACE a sling when it shows signs of deterioration. Deterioration of sling • Contact Bestcare for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use. -
Page 29: Troubleshooting Guide
Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury. - Page 30 Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.
-
Page 31: Warranty Policy
Bestcare LLC Single Patient Slings are designed for limited use with one patient and may not be washed. Bestcare will replace any disposable slings found to have a manufacturing defect. Normal wear and tear will not be covered under warranty. - Page 32 Bestcare LLC 2920 Pacific Drive Norcross, GA 30071 Ver 2021.09 www.bestcarellc.com | © 2021 Bestcare LLC...
Need help?
Do you have a question about the BESTSTAND SA228 and is the answer not in the manual?
Questions and answers

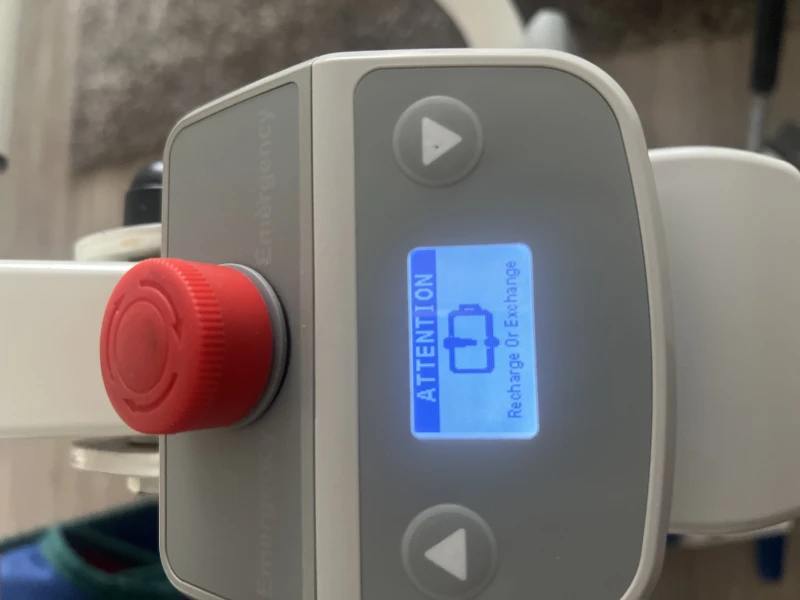

My best stand 182 model number SA182 is showing an attention, recharge or exchange battery sign with the explanation on it. I have changed the battery, but it still shows the same symbol. How do IMy best stand 182 model number SA182 is showing an attention recharge or exchange battery sign with the explanation on it. I have changed the battery, but it still shows the same symbol. How do I know if it’s now recharging
The Bestcare BestStand SA182 lift has an LED indicator on the DC charger. When the battery is recharging, the LED indicator will show amber. When the charger is connected to power, the LED indicator will show green.
