Summary of Contents for Bestcare BESTSTAND SA228

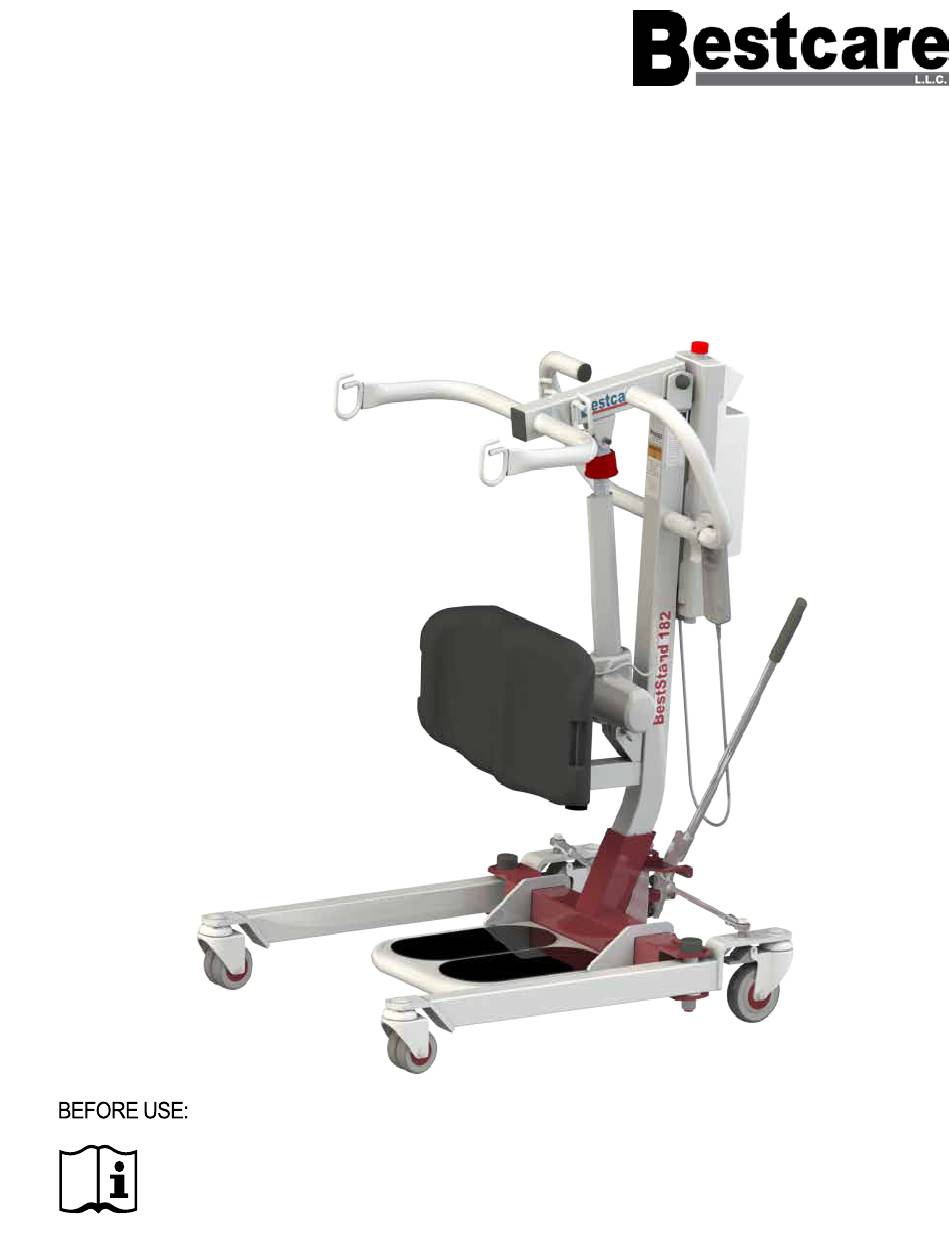

- Page 1 BESTSTAND® S I T - T O - S T A N D L I F T M o d e l : S A 2 2 8 / S A 2 2 8 H / S A 1 8 2 / S A 1 8 2 H Ensure the product has been assembled according to the instructions in this manual.
- Page 2 This page was intentally left blank.
-
Page 3: Date Of Manufacture
S/N: SA228YYMM2XXX INSPECT YOUR MERCHANDISE Upon receipt of your Bestcare Stand, verify that it is complete and free from any shipping damage. Refuse delivery if the packaging appears to be badly damaged. If the merchandise is damaged or any component is missing, contact the shipping company immediately and file a claim. -
Page 4: Safety Instructions
Before attempting to lift anyone, please practice operating the lift. Also prior to actual lifting, explain the lifting procedure to the user/patient. Service personnel may contact Bestcare for any information, instructions or certain parts for servicing purpose. Type B applied parts... - Page 5 • DO NOT replace any components of the lift without consulting with Bestcare, and must follow proper instruction from Bestcare when replacing any components. • DO NOT service any parts of the lift while in use with a patient.
-
Page 6: Features And Overview
PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED. - Page 7 SA182/ SA228/ SA182H SA228H mm (in) mm (in) A 1500.5 (59.1) 1500.5 (59.1) 559.7 (22.0) 559.7 (22.0) 940.7 (37.0) 940.7 (37.0) 19.8 (0.8) 19.8 (0.8) 386.8 (15.2) 386.8 (15.2) 816.1 (32.1) 816.1 (32.1) 749.8 (29.5) 749.8 (29.5) 547 (21.5) 547 (21.5) 291.9 (11.5) 291.9 (11.5) 646.3 (25.4)
-
Page 8: Specifications And Options
Lift Weight Unloaded (lb) 107.1 Lift Weight Unloaded (kg) 49.9 46.6 48.7 46.6 * Bestcare is committed to continuous improvements of our products therefore the specs, dimensions, and features listed above are for guidance only and subject to change without prior notice. - Page 9 Actuator may vary based on the lift model SA182 TC12 Control Box TA1 Actuator SA228 TC12 Control Box TA24 Actuator SA182H SA228H No Control Box SA Hydraulic Pump...
- Page 10 Installation Step 1: Base and Mast Step 2: Boom...
- Page 11 Step 3: Footplate Step 4a: Actuator (For SA182 and SA228 Only)
- Page 12 Step 4b: Hydraulic Pump (For SA182H and SA228H Only)
- Page 13 Step 5: Knee Pad...
- Page 14 Step 6: Power Control Unit (For SA182 and SA228 Only) M5 SCREWS M4 SCREWS 2920 PACIFIC DRIVE UNLESS OTHERWISE SPECIFIED: NORCROSS, GA 30071 ALL DIMENSIONS IN MM DRAWN BY: DATE:...
- Page 15 Power Control Unit Overview 1. Connect Actuator as shown above. 2. Connect Hand Control as shown abovw. WARNING! • Contains a long charger cord that may cause strangulation if used improperly • Keep long charger cord out of walkway where it poses a tripping hazard •...
- Page 16 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
- Page 17 Release Pressed in LCD Display Panel Signs Turn the emergency stop button clock-wise, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
- Page 18 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
- Page 19 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
- Page 20 -Slowly turn the release tab clockwise, stop once the boom is slowly lowering -Turn the release tab counter-clockwise to stop the lowering. Handlebar If there is any problem, please contact your dealer or Bestcare for assistance...
- Page 21 Available slings compatible with Stand Assist Lift Stand Assist Sling Sling Model Sling Size SL-SA662 SL-SA663 SL-SA664 Stand Assist Buttock Strap Sling Model Strap Size SL-SA669 Standard SL-SA669B Bariatric Sling Model Sling Description Knee Belt WP-SA400E-KB Stand Assist Toileting Sling Sling Model Sling Size SL-TP331...
- Page 22 FITTING STAND ASSIST SLING • Position the patient in a sitting position. • Slide the sling down patient’s back to lumbar position. • Draw the shoulder staps to the front of the patient close to the chest. • Draw the waist belt around patient’s waist and press together to fasten. Attach the shoulder straps to the hooks.
- Page 23 FITTING STAND ASSIST BUTTOCK STRAP DIAGRAM 1 • Check sling weight capacity for the patient being lifted. Do not exceed maximum safe working load. • Review following procedures carefully prior to attempting lift. Call with any questions. • Position the sling around the buttocks of the patient. This sling is designed to support the middle and lower part of the body.
- Page 24 LIFT AND TRANSFER FROM BED • Fit sling as described in “Fitting Stand Assist Sling”. • Push lift towards patient. Open the base of the lift. • Position patient’s feet on the footplate and knees against the knee pad. • Attached the sling straps to the hooks. •...
- Page 25 LIFT AND TRANSFER FROM COMMODE BESTCARE TOILETING SLING The BestCare Toileting Sling can be used with the BestStand to lift a patient in a sitting position. When in use the BestStand Toileting Sling supports the client under the thighs and across the mid-back area.
-
Page 26: Maintenance And Inspection
• With proper use and care, the expected lifetime of the lift is 10 years or 20,000 cycles. • The expected lifetime of the electrical components are 3 years. • Contact Bestcare LLC for recycling information First Received Monthly Every 3 Months Boom &... -
Page 27: Cleaning And Disinfecting
• REPLACE a sling when it show signs of deterioration. Deterioration of sling • Contact Bestcare for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use. -
Page 28: Troubleshooting Guide
Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury. - Page 29 Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.
- Page 30 RETURN GOODS POLICY Patient lifts may not be returned unless the wrong lift is shipped in error by Bestcare or the lift is heavily damaged or defective out of the box. For all other items, purchaser may request a RA for purchased goods within thirty (30) days of purchase invoice date. All returns must be received by Bestcare no later than thirty (30) days after authorization or the RA will be voided.
- Page 31 NOTES...
- Page 32 Bestcare LLC 2920 Pacific Drive Norcross, GA 30071 Ver 2019.02 www.bestcarellc.com | © 2018 Bestcare LLC...
