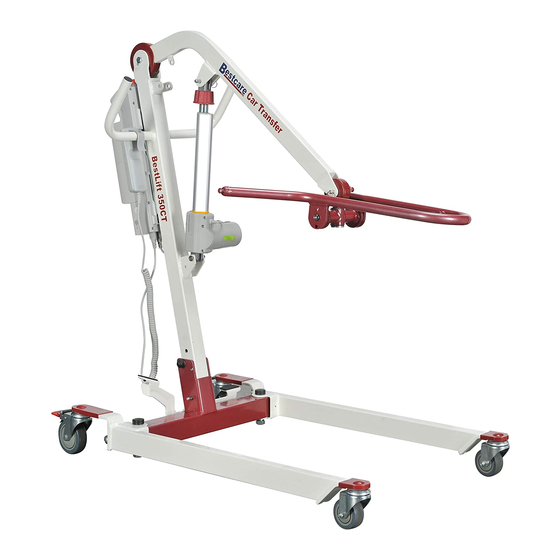

Bestcare Bestlift PL350CT Manual

Hide thumbs Also See for Bestlift PL350CT:
Table of Contents

Advertisement

Quick Links

Download this manual

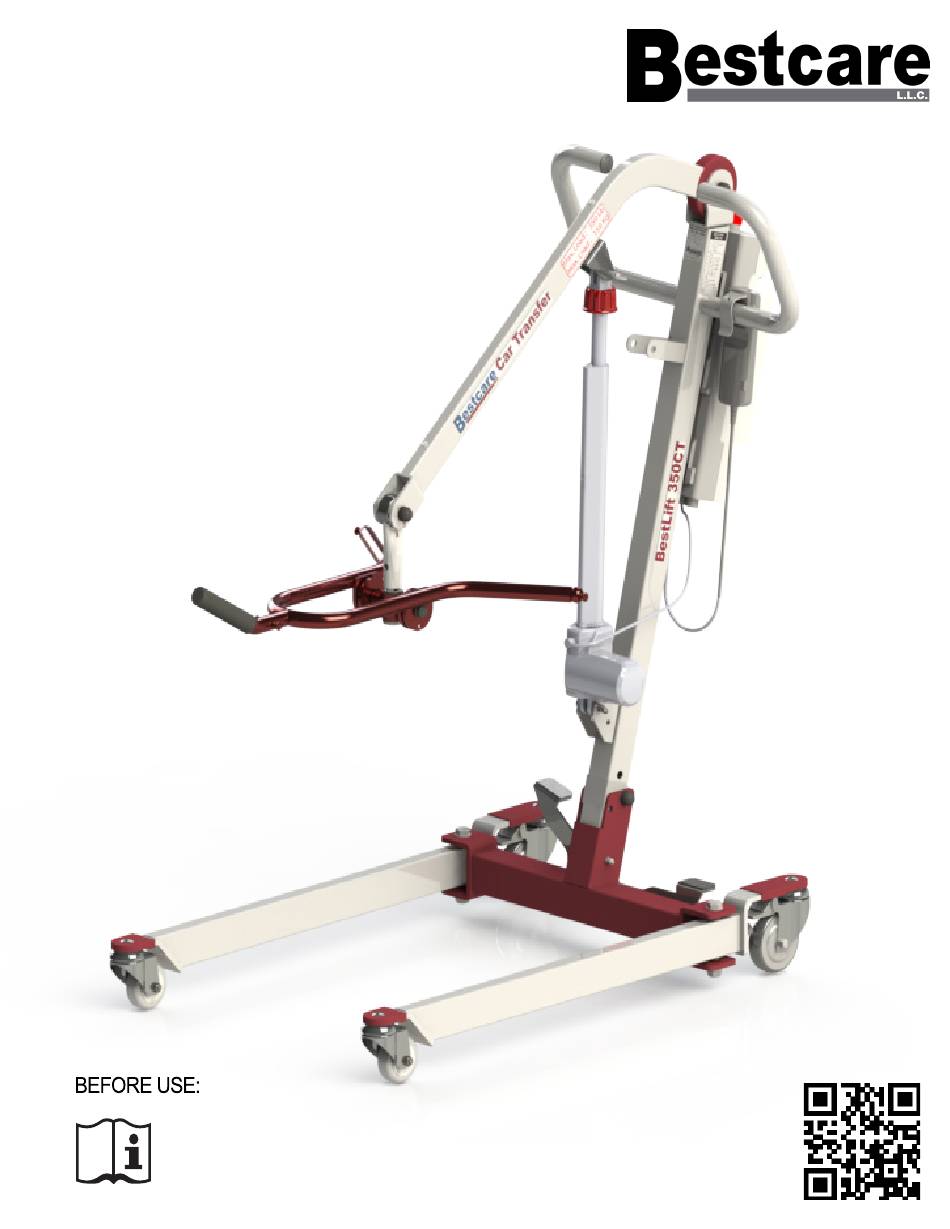

BESTLIFT®
F U L L B O D Y P A T I E N T L I F T
M o d e l : P L 3 5 0 C T
Ensure the product has been assembled according to the instructions in this
manual. All operators should read and understand the instructions for safe and
proper operation of the patient lift.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bestlift PL350CT and is the answer not in the manual?

Questions and answers

TAMMY Sue CAREY
February 24, 2025

BATTERY IS CHARGED AND EVERYTHING LIGHTS UO GREEN BUT I HEAR A CLICKING NOISE AND IT WONT MOVE

0
1 comments:
Mr. Anderson
February 24, 2025

A clicking noise and lack of movement despite a charged battery and green lights could indicate an overload condition. If the lift is overloaded, the LCD Display Panel will show an overload warning, and lifting will be deactivated immediately. The buzzer will beep three times, but lowering the lift using the DOWN button will still be allowed. Check the load to ensure it does not exceed the maximum safe working load of the lift.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Bestcare Bestlift PL350CT

Summary of Contents for Bestcare Bestlift PL350CT

  • Page 1 BESTLIFT® F U L L B O D Y P A T I E N T L I F T M o d e l : P L 3 5 0 C T Ensure the product has been assembled according to the instructions in this manual.

  • Page 2: Date Of Manufacture

    Thank you for choosing Bestcare! To better serve you, please record the following information for future use: Supplier Name: ___________________________________________ Supplier Telephone: ________________________________________ Product Serial Number: _____________________________________ Date of Purchase: _________________________________________ Date of Manufacture BestLift® PL350CT MAX LOAD: 350LB MASS OF LIFT:95LB(43KG) The manufacture date can be found on the serial number label that is located at the top of the mast.

  • Page 3: Product Description

    Product Description The Bestlift® PL350CT allows the patient to be lifted and transferred safely with minimal physical effort provided by the operator. This is due to it being a full electric lift . The PL350CT uses a special clip sling that will make transferring the patient more comfortable.

  • Page 4: Definitions & Symbols

    DEFINITIONS & SYMBOLS n this manual the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer. Symbols used in this manual and on the product and their meanings: Warning! Failure to heed this warning may Do Not Bleach.

  • Page 5: Safety Instructions

    • While being lifted in a sling, always keep the user/patient centered over the base and facing the caregiver operating the lifter. • Never leave the user/patient unattended during lifting. Service personnel may contact Bestcare for any information, instructions, or certain parts for servicing purpose.
  • Page 6 • DO NOT replace any components of the lift without consulting with Bestcare and must follow proper instruction from Bestcare when replacing any components. • DO NOT service any parts of the lift while in use with a patient.

  • Page 7: Features And Overview

    PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED.
  • Page 8 PL350CT (in) A 1729.2 (68.1) B 1070.8 (42.2) 658.4 (25.9) 700 G 492.2 (19.4) 823.2 (32.4) 766.9 (30.2) 576.7 (22.7) 333.3 (13.1) 496.9 (19.6) 275 (10.8) 442.7 (17.4) 118.5 (4.7) 20.3 (0.8)

  • Page 9: Specifications And Options

    1608 mm Lift Weight Unloaded (kg) 55.7” Turning Diameter 1414 mm * Bestcare is committed to continuous improvements of our products therefore the specification, dimensions, and features listed above are for guidance only and are subject to change without prior notice.
  • Page 10 Setup Your PL350CT for First Use Step 1: Remove folded lift from box. Step 2: Secure the stand to the mast. Align the hole on the stand bracket with the lower hole on the mast. Make sure the tab on the stand bracket insert into top hole on the mast, and insert the screw to secure the stand bracket as follows.
  • Page 11 Step 5: Insert the pin to secure the mast. Step 6: Remove the pin that is securing the boom. Step 7: Remove lower actuator pin on the mast. Step 8: Move the boom out of the way, and install the lower end of the actuator to the mast using a pin and retaining ring as follows.
  • Page 12 Step 9: Install the upper end of actuator to the boom by reinsert the quick release pin to secure it. Step 10: Insert the spreader bar into the tube on the boom as follows. Align the holes and secure the spreader bar using a pin and retainer ring.
  • Page 13 Power Control Unit Installation M5 SCREWS M4 SCREWS 2920 PACIFIC DRIVE UNLESS OTHERWISE SPECIFIED: NORCROSS, GA 30071 ALL DIMENSIONS IN MM DRAWN BY: DATE: 9/27/2017 6-30 PART NUMBER: 30-120...
  • Page 14 Fold Up The Lift For Storage or Transport Step 1: Remove The Spreader Bar WARNING: actuator should be fully retracted (boom in lowest position) prior to getting ready for storage Step 2: Detach The Actuator...
  • Page 15 Step 3: Fold Up The Boom Step 4: Fold Up The Mast...
  • Page 16 Standing Up Warning - The lift may fall and cause bodily injury if it is not secured against the wall. Lying Down...
  • Page 17 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
  • Page 18 Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Charger DC In Not Used Additional Battery Pack (Optional) Charging Cradle Actuator (Optional) Hand Control 1. Connect Actuator as shown above. 2.
  • Page 19 Release Pressed in LCD Display Panel Signs When the emergency stop button is released, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
  • Page 20 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
  • Page 21 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
  • Page 22 Care Transfer Sling Cradle Clip Sling Sling Model Sling Size MAA4000M-M MAA4000M-L MAA4000M-XL Cradle Clip Disposable Sling Sling Model Sling Size MFA4000M-M MFA4000M-L MFA4000M-XL If the patient is pregnant or has skin conditions, consult with a doctor before use. ALWAYS check that sling weight capacity is suitable for the patient All slings are type BF applied parts...
  • Page 23 Sling Hook-Up Guide Sling Hook Sling Clip • Slide the clip over the sling hook on the spreader bar through the hole • Pull down the clip to lock the sling on to the spreader Hook up A Point 1 Hook up B Point 2 Hook up C...
  • Page 24 Transfer From Bed to Wheelchair 1. User/patient should be in the center of the bed. 2. Position user onto his/her side by rolling user towards you. 3. Roll the sling in half. The handle on the back section sling should face outward when the sling is fitted.
  • Page 25 Transfer From Car to Wheelchair 1. Help the user lean forward slightly, then slide the sling down between the car seat and the user’s back. 2. Position the sling equally around both sides of the body. 3. Draw the leg sections to the front along the length of the user’s thigh. 4.

  • Page 26: Maintenance And Inspection

    • With proper use and care, the expected lifetime of the lift is 10 years or 20,000 cycles. • The expected lifetime of the electrical components are 3 years. • Contact Bestcare for any recycling information First Received Monthly Every 3 Months Boom &...

  • Page 27: Cleaning And Disinfecting

    • REPLACE a sling when it show signs of deterioration. Deterioration of sling • Contact Bestcare for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use.

  • Page 28: Troubleshooting Guide

    Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury.
  • Page 29 Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.
  • Page 30 RETURN GOODS POLICY Patient lifts may not be returned unless the wrong lift is shipped in error by Bestcare or the lift is heavily damaged or defective out of the box. For all other items, purchaser may request a RA for purchased goods within thirty (30) days of purchase invoice date. All returns must be received by Bestcare no later than thirty (30) days after authorization or the RA will be voided.
  • Page 31 NOTES...
  • Page 32 Bestcare LLC 2920 Pacific Drive Norcross, GA 30071 Ver 2020.02 www.bestcarellc.com | © 2019 Bestcare LLC...
