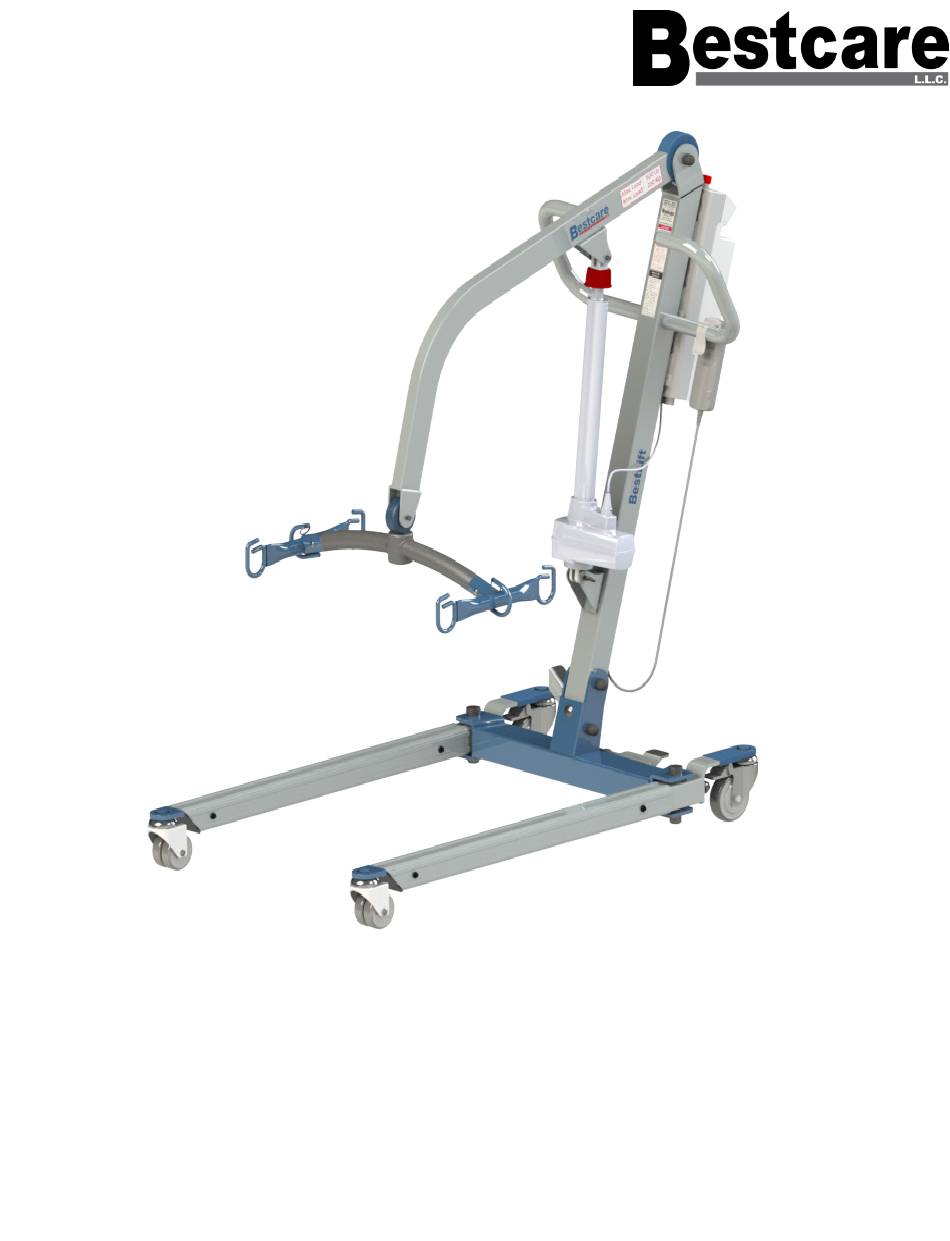

- Page 1 BESTLIFT® F U L L B O D Y P A T I E N T L I F T M o d e l : P L 4 0 0 / P L 5 0 0 PL500 model shown...
-
Page 2: Date Of Manufacture
Thank you for choosing Bestcare! To better serve you, please record the following information for future use: Supplier Name: ___________________________________________ Supplier Telephone: ________________________________________ Product Serial Number: _____________________________________ Date of Purchase: _________________________________________ Date of Manufacture The manufacture date can be found on the serial number label that is located at the top of the mast. -
Page 3: Product Description

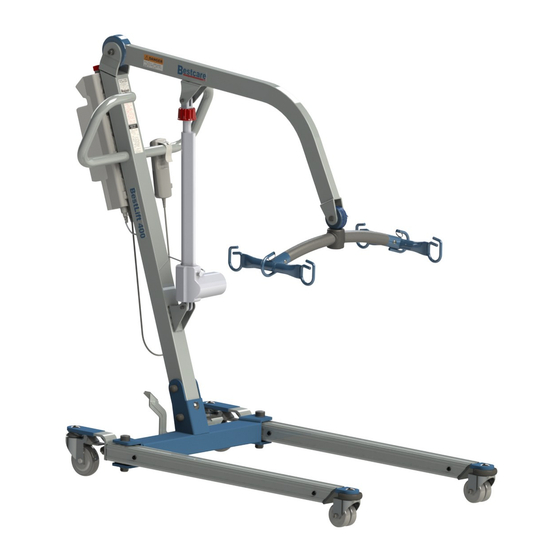

Product Description The Bestlift® PL400 and PL500 allow patients up to 400lbs and 500lbs, respectively, to be lifted and transferred safely with minimal physical effort provided by the operator. That is due to it being a full electric lift. The PL400/500 can lift the patient with ease from the floor to the bed. -
Page 4: Definitions & Symbols
DEFINITIONS & SYMBOLS n this manual, the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer. Symbols used in this manual and on the product and their meanings: Warning! Failure to heed this warning may Do Not Bleach. -
Page 5: Safety Instructions
• While being lifted in a sling, always keep the user/patient centered over the base and facing the caregiver operating the lifter. • Never leave the user/patient unattended during lifting. Service personnel may contact Bestcare for any information, instructions, or certain parts for servicing purpose. - Page 6 • DO NOT replace any components of the lift without consulting with Bestcare and must follow proper instruction from Bestcare when replacing any components. • DO NOT service any parts of the lift while in use with a patient.
-
Page 7: Features And Overview
PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED. - Page 8 PL400 PL500 mm (in) mm (in) 1948.5 (76.7) 1948.5 (76.7) 1254.0 (49.4) 1254.0 (49.4) 694.6 (27.3) 694.6 (27.3) 643.9 (25.4) 643.9 (25.4) 987.2 (38.9) 987.2 (38.9) 887.4 (34.9) 887.4 (34.9) 570.2 (22.4) 570.2 (22.4) 270.1 (10.6) 270.1 (10.6) 545.2 (21.5) 545.2 (21.5) 271.2 (10.7) 271.2 (10.7)
-
Page 9: Specifications And Options
1595.1 mm 1595.1 mm Lift Weight Unloaded (kg) 44.1 44.5 * Bestcare is committed to continuous improvements of our products therefore the specification, dimensions, and features listed above are for guidance only and are subject to change without prior notice. -
Page 10: Installation
120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED. Step 3: Lift the mast upward to stand the mast upright. - Page 11 Step 5: Install the round plastic cover and plastic washers to the THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIP DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED. boom.
- Page 12 Step 7: First, secure the lower end of the actuator to the bracket on the mast using a pin and retaining ring. Then, secure the upper end of the actuator to the bracket on the boom using a pin and retaining ring as follows.
- Page 13 Setting Up Power Control Unit M5 SCREWS M4 SCREWS 2920 PACIFIC DRIVE UNLESS OTHERWISE SPECIFIED: NORCROSS, GA 30071 ALL DIMENSIONS IN MM DRAWN BY: DATE: 9/27/2017 6-30 30-120 PART NUMBER:...
- Page 14 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
- Page 15 Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Charger DC In Not Used Additional Battery Pack (Optional) Charging Cradle Actuator (Optional) Hand Control 1. Connect Actuator as shown above. 2.
- Page 16 Release Pressed in LCD Display Panel Signs When the emergency stop button is released, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
- Page 17 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
- Page 18 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
- Page 19 Available slings compatible with Patient Lift Sling Type Material Sizes Mesh M, L Universal Polyester M, L, XXL Mesh S, M, L Universal with Head Support Polyester S, M, L, XXL Universal Disposable Nonwoven, Disposable M, L Universal Disposable with Head Support Nonwoven, Disposable S, M, L, XXL Sani...
- Page 20 Sling Hook-Up Guide 2 Point S-Bar 6 Point S-Bar Hook up A Point 1 Hook up A Point 1 Hook up B Point 2 Hook up B Point 2 Insert D through C Insert D through C Hook up D Point 1 Hook up D Point 5...
- Page 21 Transfer From Bed to Wheelchair 1. User/patient should be in the center of the bed. 2. Position user onto his/her side by rolling user towards you. 3. Roll the sling in half. The handle on the back section should face outward when the sling is fitted.
-
Page 22: Maintenance And Inspection
• With proper use and care, the expected lifetime of the lift is 10 years or 20,000 cycles. • The expected lifetime of the electrical components are 3 years. • Contact Bestcare for any recycling information First Received Monthly Every 3 Months Boom &... -
Page 23: Cleaning And Disinfecting
• REPLACE a sling when it show signs of deterioration. Deterioration of sling • Contact Bestcare for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use. - Page 24 Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.
-
Page 25: Troubleshooting Guide
Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury. - Page 26 RETURN GOODS POLICY Patient lifts may not be returned unless the wrong lift is shipped in error by Bestcare or the lift is heavily damaged or defective out of the box. For all other items, purchaser may request a RA for purchased goods within thirty (30) days of purchase invoice date. All returns must be received by Bestcare no later than thirty (30) days after authorization or the RA will be voided.
