BESTLIFT®

F U L L B O D Y P A T I E N T L I F T

M o d e l : P L 6 0 0

Ensure the product has been assembled according to the instructions in this

manual. All operators should read and understand the instructions for safe and

proper operation of the patient lift.

Table of Contents

Need help?

Do you have a question about the BESTLIFT PL600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bestcare BESTLIFT PL600

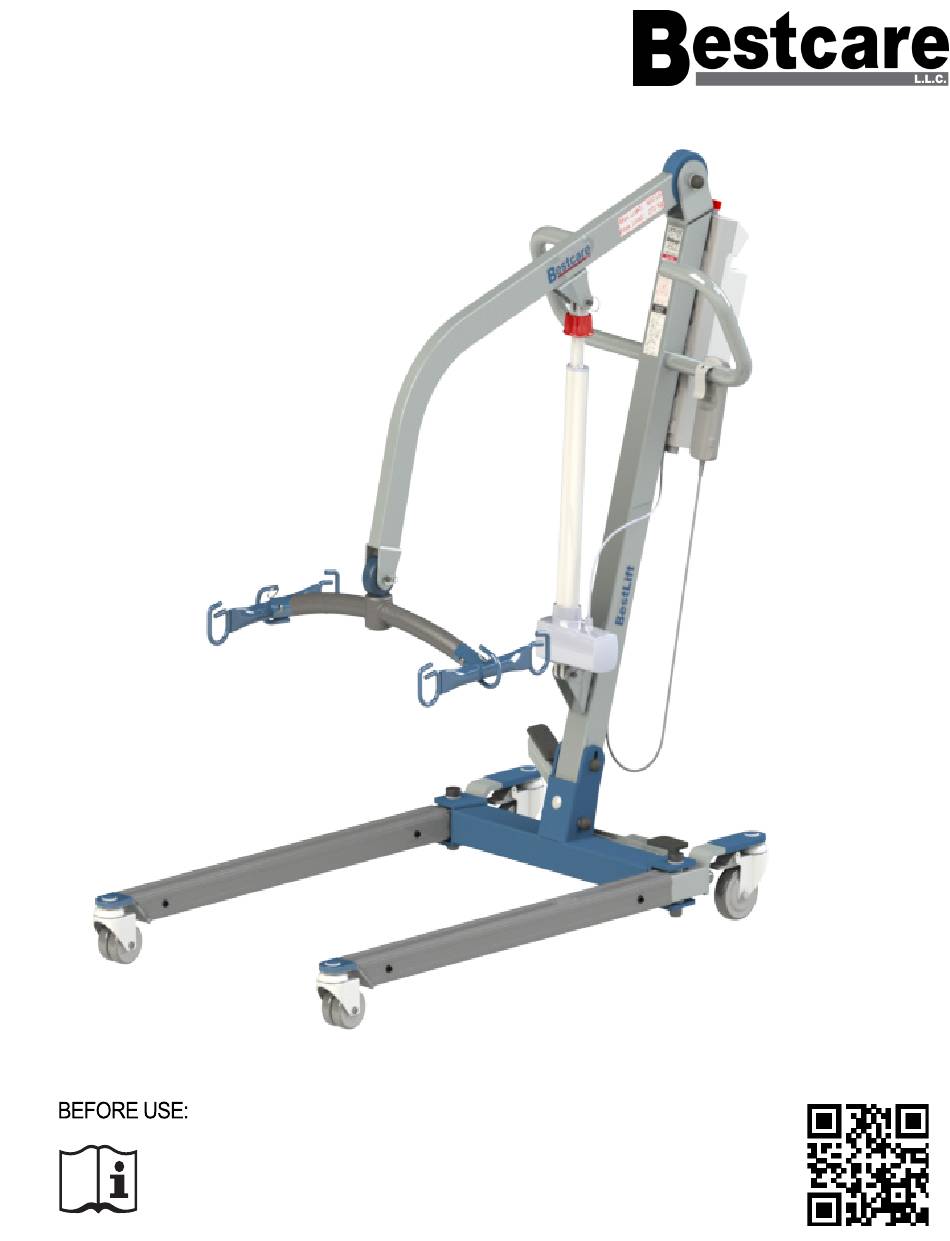

Page 1 BESTLIFT® F U L L B O D Y P A T I E N T L I F T M o d e l : P L 6 0 0 Ensure the product has been assembled according to the instructions in this manual.
Page 2 Thank you for choosing Bestcare! To better serve you, please record the following information for future use: Supplier Name: ___________________________________________ Supplier Telephone: ________________________________________ Product Serial Number: _____________________________________ Date of Purchase: _________________________________________ Date of Manufacture ® BestLift PL600 MAX LOAD: 600LB...
Page 3: Product Description

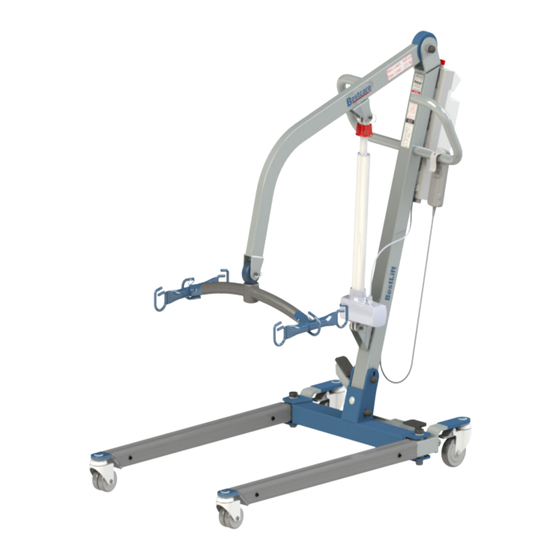

Product Description The Bestlift® PL600 allows patients up to 600lbs to be lifted and transferred safely with minimal physical effort provided by the operator. That is due to it being a full electric lift. The PL600 can lift the patient with ease from the floor to the bed. The 6 point spreader bar provides added comfort for the patient while moving from any surface.
Page 4: Definitions & Symbols
DEFINITIONS & SYMBOLS n this manual the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer. Symbols used in this manual and on the product and their meanings: Warning! Failure to heed this warning may Do Not Bleach.
Page 5: Safety Instructions
• While being lifted in a sling, always keep the user/patient centered over the base and facing the caregiver operating the lifter. • Never leave the user/patient unattended during lifting. Service personnel may contact Bestcare for any information, instructions, or certain parts for servicing purpose.
Page 6 • DO NOT replace any components of the lift without consulting with Bestcare and must follow proper instruction from Bestcare when replacing any components. • DO NOT service any parts of the lift while in use with a patient.
Page 7: Features And Overview
PROPRIETARY AND CONFIDENTIAL 120-400 THE INFORMATION CONTAINED IN THIS MATERIAL: DESCRIPTION: DRAWING IS THE SOLE PROPERTY OF BESTCARE LLC. ANY REPRODUCTION IN PART FINISH: SCALE: SHEET: 1 of 1 OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BESTCARE LLC IS PROHIBITED.
Page 8 PL600 mm (in) 1887.8 (74.3) 1197.4 (47.1) 690.1 (27.2) 626.7 (24.7) 998.0 (39.3) 889.0 (35.0) 574.6 (22.6) 262.0 (10.3) 461.7 (18.2) 246.7 (9.7) 427.9 (16.8) 119.4 (4.7) 26.2 (1.0)
Page 9: Specifications And Options
Lift Weight Unloaded (kg) 57.5 Base Closed Turning Diameter 1483.4 mm * Bestcare is committed to continuous improvements of our products therefore the specification, dimensions, and features listed above are for guidance only and are subject to change without prior notice.
Page 10 Installation Step 1: Remove base from box. Step 2: Insert the mast to the base bracket, and secure it in place by inserting and tightening the long hex head bolt and nut at the top slot hole on the side of the bracket as following.
Page 11 Step 3: Insert and tighten the other long hex head bolt, nut, and washers to the bottom hole on the side of the bracket to secure the mast. Insert the black plastic cover to the nut after the bolt is tightened. Step 4: Reinsert and tighten the carriage bolt to the front slot hole of the bracket, and the mast should be firmly secured to the base.
Page 12 Step 5: Insert the round plastic cover and the large plastic washer to the boom as follows. Step 6: Install the boom to the mast and align the holes. Then secure it by reinstalling the bolt, washer and nut. Once the screw is tightened insert the plastic cap.
Page 13 Step 8: Secure the upper end of the actuator to the bracket on the boom using a pin and retaining ring as follows. Step 9: Secure the spreader bar to the boom using a pin and retaining ring as follows.
Page 14 Power Control Unit M5 SCREWS M4 SCREWS 2920 PACIFIC DRIVE UNLESS OTHERWISE SPECIFIED: NORCROSS, GA 30071 ALL DIMENSIONS IN MM DRAWN BY: DATE: 9/27/2017 6-30 PART NUMBER: 30-120...
Page 15 Operating Instructions Double check all assemblies for tightness and read operating instructions carefully prior to use. For optimum performance the lift should be transported and stored in following condition range: • -25°C to +5°C (-13°F to 41°F), and • +5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90% •...
Page 16 Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Clear Contact Plastic Cover Charger DC In Not Used Additional Battery Pack (Optional) Actuator Hand Control Charging Cradle (Optional) 1. Connect Actuator as shown above. 2.
Page 17 Release Pressed in LCD Display Panel Signs When the emergency stop button is released, the LCD Display Panel will show one of the four signs below. • The sign will display for 5 seconds. • Then the lift will go into standby mode and the sign disappears. •...
Page 18 Operating Lift: Using Hand Control LED Indicator Lifting * Green = In Use * Blank = Standby Lowering Operating Lift: Using LCD Display Panel...
Page 19 Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD Display Panel will show a blinking low battery sign shown on the left either when the emergency stop button is released or when a button on the LCD Display Panel is pressed.
Page 20 Available slings compatible with Patient Lift Sling Type Material Sizes Mesh M, L Universal Polyester M, L, XXL Mesh S, M, L Universal with Head Support Polyester S, M, L, XXL Universal Disposable Nonwoven, Disposable M, L Universal Disposable with Head Support Nonwoven, Disposable S, M, L, XXL Sani...
Page 21 Sling Hook-Up Guide 2 Point S-Bar 6 Point S-Bar Hook up A Point 1 Hook up A Point 1 Hook up B Point 2 Hook up B Point 2 Insert D through C Insert D through C Hook up D Point 1 Hook up D Point 5...
Page 22 Transfer From Bed to Wheelchair 1. User/patient should be in the center of the bed. 2. Position user onto his/her side by rolling user towards you. 3. Roll the sling in half. The handle on the back section should face outward when the sling is fitted.
Page 23: Maintenance And Inspection
• Note – Bestcare assumes that the assembly instructions were performed properly and The Bestcare Lift requires a minimum of service to keep it in proper working order and to assure safe operation. It by a qualified individual. Bestcare also assumes that the operator of the lift has been is important that certain basic checks be performed periodically by the operator of the lift or by a qualified bio-med properly trained, reviewed all the training material and knows how to operate the lift.
Page 24 • REPLACE a sling when it shows signs of deterioration. Deterioration of sling • Contact Bestcare for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use.
Page 25 Emergency Lowering Mechanism Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved. In case of lift failure, please follow the procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft.
Page 26: Troubleshooting Guide
Troubleshooting Guide The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem, which is not listed below, please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury.
Page 27: Warranty Policy
Bestcare LLC Single Patient Slings are designed for limited use with one patient and may not be washed. Bestcare will replace any disposable slings found to have a manufacturing defect. Normal wear and tear will not be covered under warranty.
