- Page 1 4KSP12-S 1 x 2 4K HDMI Splitter with Scaler User Manual...
- Page 2 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 4: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Front Panel........................4 Rear Panel ........................5 Scaler ........................6 Installation and Application................. 7 Brackets Installation ......................7 Typical Application ........................ 8 Specification ...................... -
Page 5: Introduction

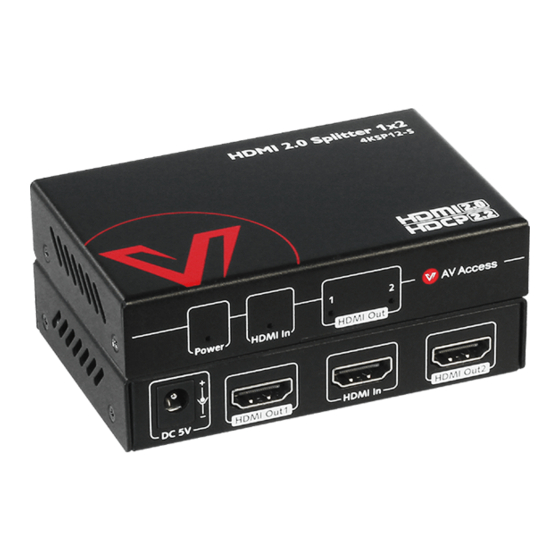

Introduction Introduction Overview The 4KSP12-S is a 1 x 2 HDMI splitter with scaler, reliably distributes one HDMI input signal to two outputs at resolutions up to 4K@60Hz 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications, including supported data rates up to 18 Gbps, HDR (high dynamic range), 3D and HD lossless audio formats. -
Page 6: Package Contents
Automatic input cable equalization for signal regeneration compensation Package Contents Before you start the installation of the product, please check the package contents: 4KSP12-S x 1 Power Adapter with US plug (DC 5V 1A) x 1 Mounting Bracket x 2 ... -
Page 7: Panel
Introduction Panel Front Panel Name Description On: Power is applied to the splitter. Power LED (Red) Off: No power is applied to the splitter. On: HDMI signal is detected on the HDMI input. HDMI IN LED (Blue) Off: No HDMI signal is detected on the HDMI input. -
Page 8: Rear Panel
Introduction Rear Panel Name Description Connect the power supply provided. DC 5V Connect to the HDMI display using an HDMI cable. HDMI OUT (1-2) Connect to the HDMI source using an HDMI cable. HDMI IN www.avaccess.com services@avaccess.com... -
Page 9: Scaler
Scaler Scaler Each HDMI output supports scaling down to 1080P individually (fps will not change during scaling down from 4K to 1080P). Each 4K resolution after scaling is shown as below: After Scaling Before Scaling 4K@60 HZ 4:4:4 1080P@60 4:4:4 4K@60 HZ 4:2:0 1080P@60 4:4:4 www.avaccess.com... -
Page 10: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, Please ensure the device is disconnected from the power source. In order to keep elegant appearance, we design to share screws with the product chassis, please refer to the below steps to install. Steps to install the device in a suitable location: Remove the four screws that secure the side panels to the device. -
Page 11: Typical Application
Installation and Application mounting screws. Typical Application Warnings: Before wiring, disconnect the power from all devices. During wiring, connect and disconnect the cables gently. Blu-ray Player Connect an HDMI source Connect the device (e.g. PC, Blu-ray playe r, power supply Apple TV, STB, etc.) Connect HDMI display... -
Page 12: Specification
Specification Specification Technical Input 1 x HDMI IN (Type-A female connector) Output 2 x HDMI OUT (Type-A female connector) Video Signal Type HDMI2.0, HDCP 2.2 VESA: 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 , 1366x768 1440x900 , 1600x900 , 1600x1200... - Page 13 Specification General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV(Air-gap discharge)/ ±4kV(Contact discharge) Power Supply DC 5V 1A Power Consumption 4K: 1.8W ...
-
Page 14: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Ensure the source, display devices and splitter are powered on. Indicator: Ensure all LED indicators of the splitter are normal according to user manual. Devices: Ensure picture can be shown normally when connecting source to display device directly. -
Page 15: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.0...
