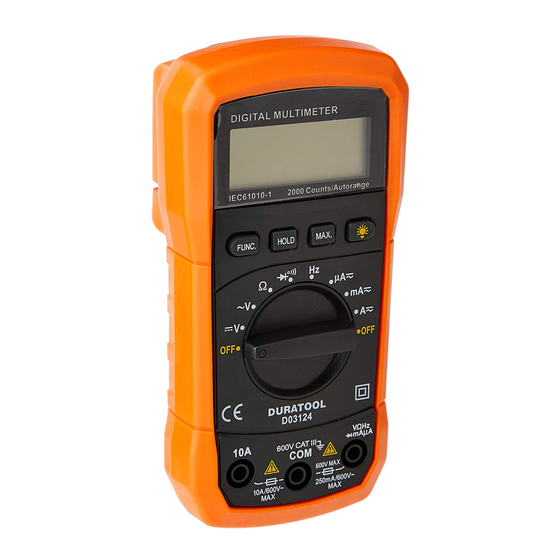

MODEL: D03124
DIGITAL MULTIMETER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D03124 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratool D03124

Summary of Contents for Duratool D03124

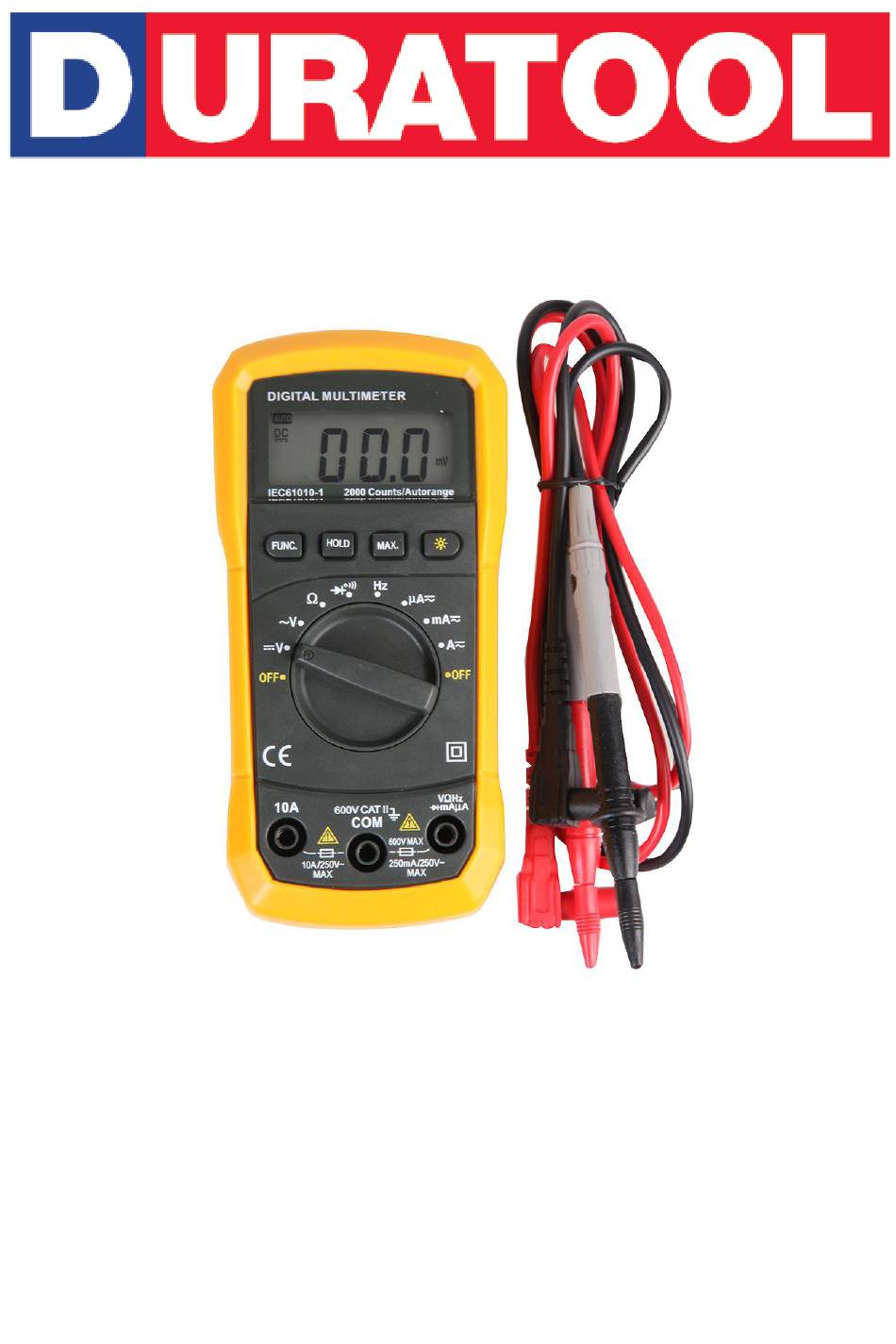

  • Page 1 MODEL: D03124 DIGITAL MULTIMETER...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. This instrument is designed and manufactured in compliance with: G84793, lEC61010-1, CAT III 600V, Pollution Degree 2 and Double Insulation standards. • Check the test leads, probes and case insulation before using. If you find any breakage or abnormality, or you consider the device is broken, stop using the device immediately.

  • Page 3: Safety Symbols

    SAFETY SYMBOLS Symbol Description High Voltage Warning AC (Alternating Current) DC (Direct Current) AC or DC Warning - Important Safety Information Ground Fuse Double Insulation Low Battery CAT. III 600V CAT. III 600V over-voltage protection FUNCTIONS LCD display “MAX” push button “BACK LIGHT”...

  • Page 4: Measure Ac & Dc Voltage

    BUTTONS Button Details FUNC Function select key that acts with trigger. Use the key as switch of DC/ AC current, Diode/Continuity and Hz. HOLD Press “HOLD” to enter and exit the hold mode in any mode. Press this key once, the maximum value is holding (Will displays ‘MAX’ symbol in the LCD).

  • Page 5: Measure Resistance

    MEASURE RESISTANCE Ω Ω Ω Ω Ω • The resistance range are: 200.0 , 2.000K , 20.00K , 200.0K , 2.000M Ω 20.00M • To measure resistance, connect the meter as follows: Ω • Insert the red test lead into the “ V ”...

  • Page 6: Current Measurement

    CURRENT MEASUREMENT • Turn off power to the circuit. • Set the rotary switch to the appropriate DC/AC µA or DC/AC mA position. • Break the current path to be tested. • Connect the red test lead to the positive side of the break and the black test lead to the negative side of the break.
  • Page 7 RESISTANCE Range Resolution Accuracy 200Ω 0.10Ω 2kΩ 0.001kΩ ±(0.8%+2) 20kΩ 0.01kΩ 200kΩ 0.1kΩ 2MΩ 0.001MΩ ±(1.0%+2) 20MΩ 0.01MΩ FREQUENCY Range Resolution Accuracy 20kHz 10KHz ±(1.5%+5) Sensitivity: 0.8V Notes: DC CURRENT Range Resolution Accuracy 200μA 0.1μA 1μA ±(1.5%+3) 20mA 0.01mA 200mA 0.1mA 0.01A ±(2.0%+5)

  • Page 8: Battery Replacement

    Notes: • Overload Protection: • uA, mA input: 500mA/600V Φ6x32mm. • 10A input: 10A/600V Φ6x32mm. • Max input current: 250mA at ‘mA’ input terminal. • Maximum input current: 10A (For current over 5A, measurement time must not exceed 10 seconds). •...
