OPERATOR'S INSTRUCTION
MANUAL
DIGITAL MULTIMETER
Model: D03046 and D03047

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D03046 and is the answer not in the manual?

Questions and answers

Related Manuals for Duratool D03046

Summary of Contents for Duratool D03046

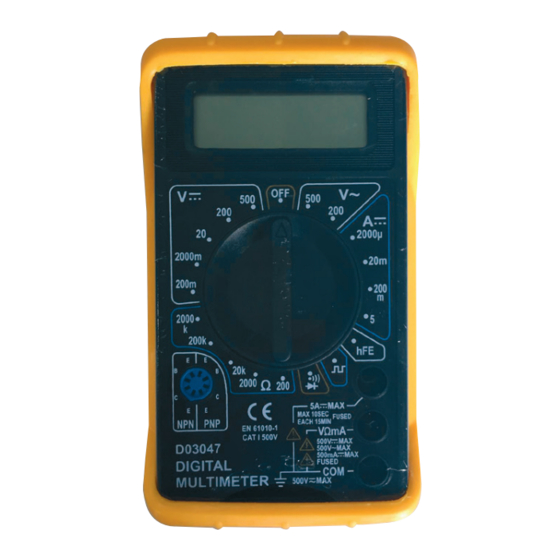

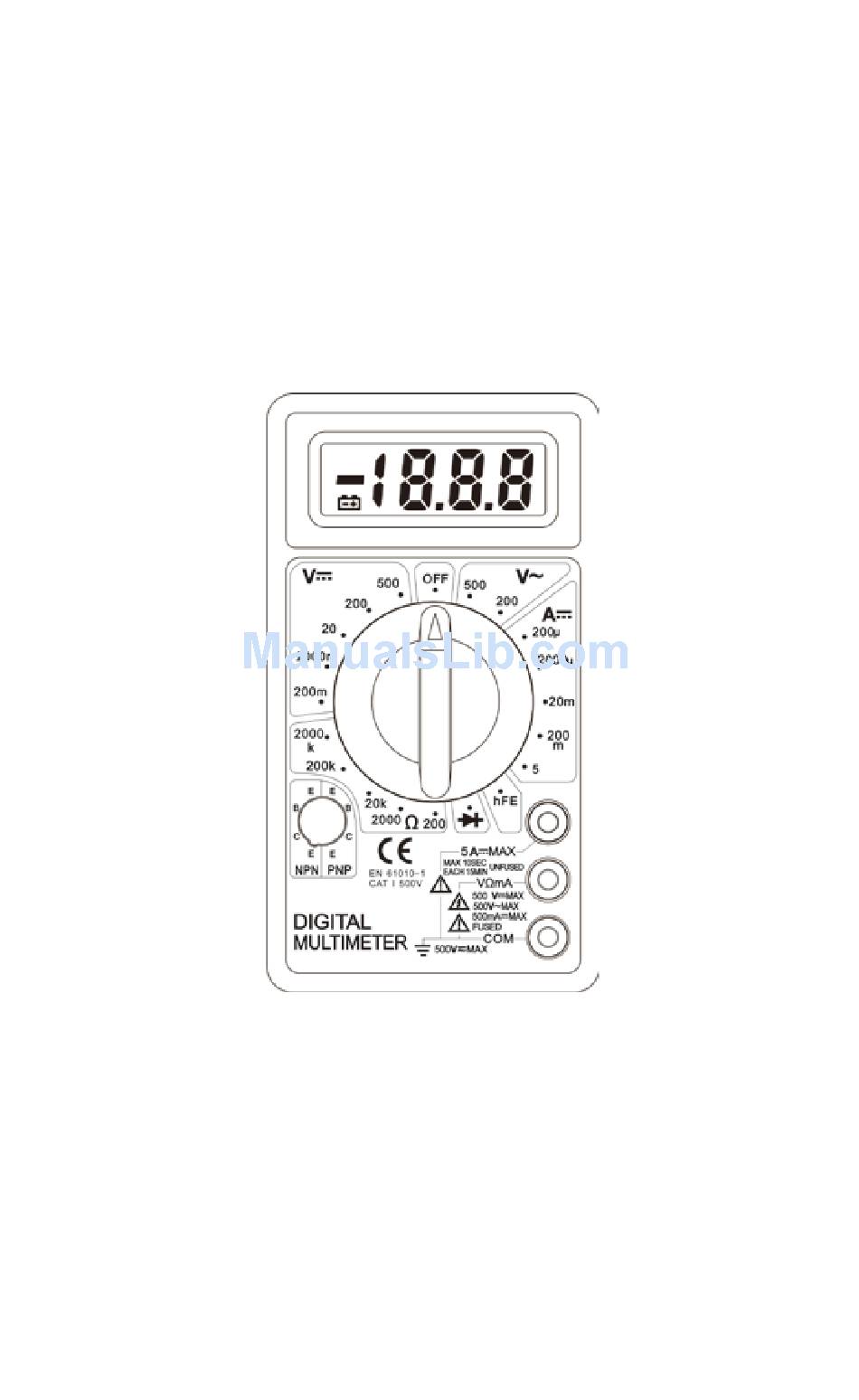

  • Page 1 OPERATOR’S INSTRUCTION MANUAL DIGITAL MULTIMETER Model: D03046 and D03047...
  • Page 2 Warning To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment under test, adhere to the following rules:  Before using the Meter inspect the case. Do not use the Meter if it is damaged or the case (or part of the case) is removed.

  • Page 3: General Specifications

    high-voltage capacitors before testing resistance, continuity, diodes or hFE.  Replace the battery as soon as the battery indicator appears. With a low battery, the Meter might produce false readings that can lead to electric shock and personal injury.  Remove the connection between the testing leads and the circuit being tested, and turn the Meter power off before opening the Meter...
  • Page 4 Sampling speed: 2 times per second Over-load indication: “1” is displayed Operating Environment: 0℃~ 40℃ , at <80% RH Storage Environment: -10℃~ 50℃ , at <85% RH Power: 9V NEDA 1604 or 6F22 Low battery indication: “ ” Static electricity: about 4mA Product Size: 126 x 70 x 26mm Product net weight: 108g (including battery) RANGE...
  • Page 5 Series Multimeters Function Table Technical Specifications Accuracies are guaranteed for 1 year, 25℃ ± 5℃ less than 80%RH DC VOLTAGE RANGE RESOLUTION ACCURACY 200mV 100uV ±(0.5% of rdg + 3D) 2000mV ±(0.8% of rdg + 5D) 10mV 200V 100mV 500V ±(1.0% of rdg + 5D) OVERLOAD PROTECTION: 220V rms AC for 200mV range and 500V DC or 500V rms for all...

  • Page 6: Audible Continuity

    AUDIBLE CONTINUITY OVERLOAD PROTECTION: 15 seconds maxi- mum 220 V rms. DC CURRENT RANGE RESOLUTION ACCURACY 200uA 100nA ±(1.8% of rdg +2D) 2000uA 20mA 10uA 200mA 100uA ±(2.0% of rdg +2D) 10mA ±(2.0% of rdg +10D) OVERLOAD PROTECTION: F0.5A/250V and F5A/250V fuse MEASURING VOLTAGE DROP: 200mV RESISTANCE...

  • Page 7: Dc & Ac Voltage Measurement

    TEMPERATURE (with K-TYPE PROBE) RANGE RESOLUTION ACCURACY -40℃ to ±(1.0% + 4) 150 ℃ 1℃ 150℃ to ±(1.5% + 15) 1370 ℃ OPERATING INSTRUCTIONS DC & AC VOLTAGE MEASUREMENT 1. Connect red test lead to “VΩmA” jack, Black lead to “COM” jack. 2.

  • Page 8: Resistance Measurement

    2. Set RANGE switch to desired DCA position. 3. Open the circuit to be measured, and connect test leads IN SERIES with the load in with current is to measure. 4. Read current value on Digital Display. 5. Additionally, “5A” function is designed for intermittent use only.

  • Page 9: Transistor Hfe Measurement

    TRANSISTOR hFE MEASUREMENT 1. Set RANGE switch to the hFE position. 2. Determine whether the transistor is PNP of NPN type and locate the Emitter, Base and Collector leads. Insert the leads into the proper holes of the hFE Socket. 3.
  • Page 10 ACCESSORIES  Operator’s instruction manual  Set of test leads  Gift box  TP01 K-type thermoelectric couple (DT830C & DT838 only)  9-volt battery, NEDA 1604 6F22 type. WARNING READ AND UNDERSTAND THIS MANUAL BEFORE USING THE INSTRUMENT. INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &...
