Summary of Contents for Duratool D03145

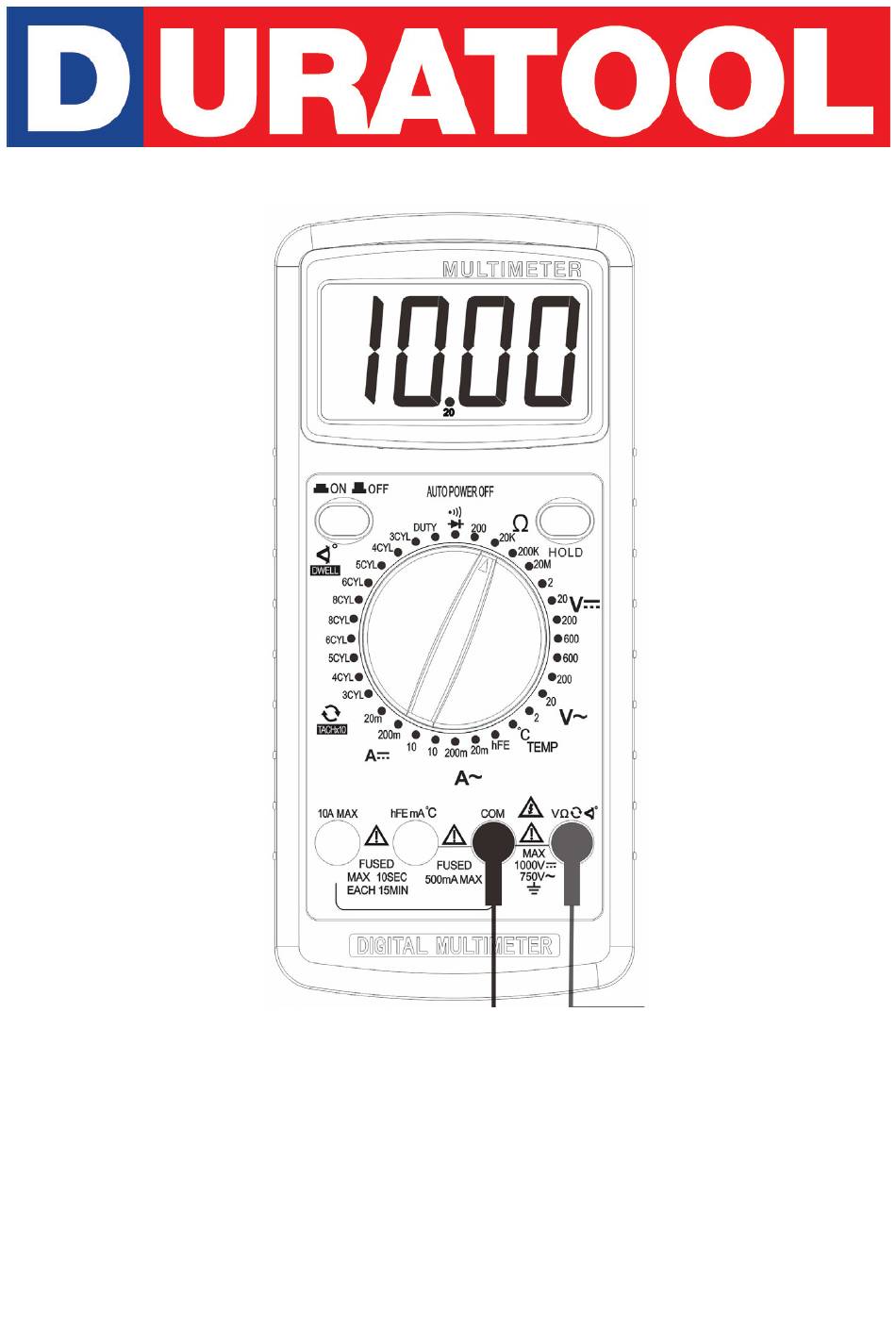

- Page 1 Model: D03145 Multimeter with Automotive Ranges...
- Page 2 CONTENTS Page Number Description What's Included? Important Safety Information General Specification Electrical Specification DC Voltage AC Voltage DC Current AC Current Temperature Dwell Angle Tacho AC & DC Voltage Measurement AC & DC Current Measurement Resistance Measurement Temperature Measurement Diode & Continuity Test Transistor hFE Test (w/multifunction adaptor) Measuring Dwell Angle Testing Duty Cycle...
- Page 3 WHAT’S INCLUDED? • One multimeter • One multifunction adaptor • One pair of test leads • One user manual IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • When using electrical appliances basic safety precautions should always be followed.
- Page 4 ELECTRICAL SPECIFICATION • Accuracy is given ± (% of reading + number of least significant digits) for one year, at 23°C ± 5°C RH<75%. DC VOLTAGE Range Resolution Accuracy 200mV 0.1mV ± (0.5% + 3 digits) • Input impedance: 10MΩ. 10mV ±...
- Page 5 Range Resolution Accuracy 200Ω 0.1Ω ± (1.0% ± 10) 2kΩ 1Ω 20kΩ 10Ω ± (1.0% ± 4) 200kΩ 100Ω 2MΩ 1kΩ 20MΩ 10kΩ ± (1.0% ± 10) DWELL ANGLE Range Scope (°) Resolution Accuracy 4 CYL 0 ~ 90 ± (2.0% 6 CYL 0 ~ 60 0.1°...
- Page 6 • If the current range is unknown beforehand, set the function range to the highest range and then reduce it until the desired range is obtained. Note: When only figure "1" is displayed, overrange is being indicated and the function range switch should be set to a higher range.
- Page 7 • Connect the black test lead to the iron bars or the negative pole of the battery and the red test lead to the distributor terminal of the ignition coil. • Start the motor to set it in idle-speed, then read the value of the dwell angle on the LCD.
