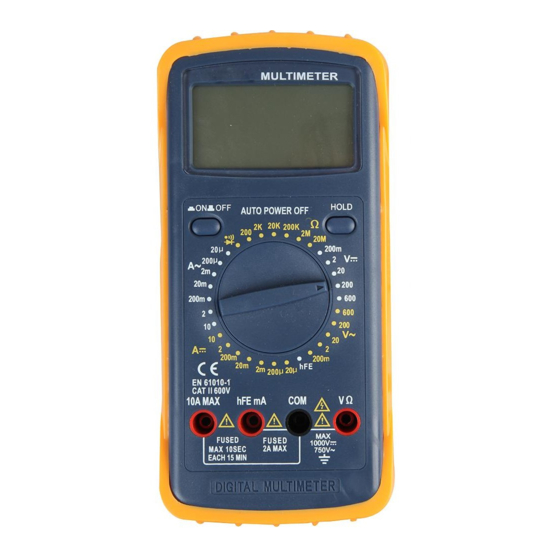

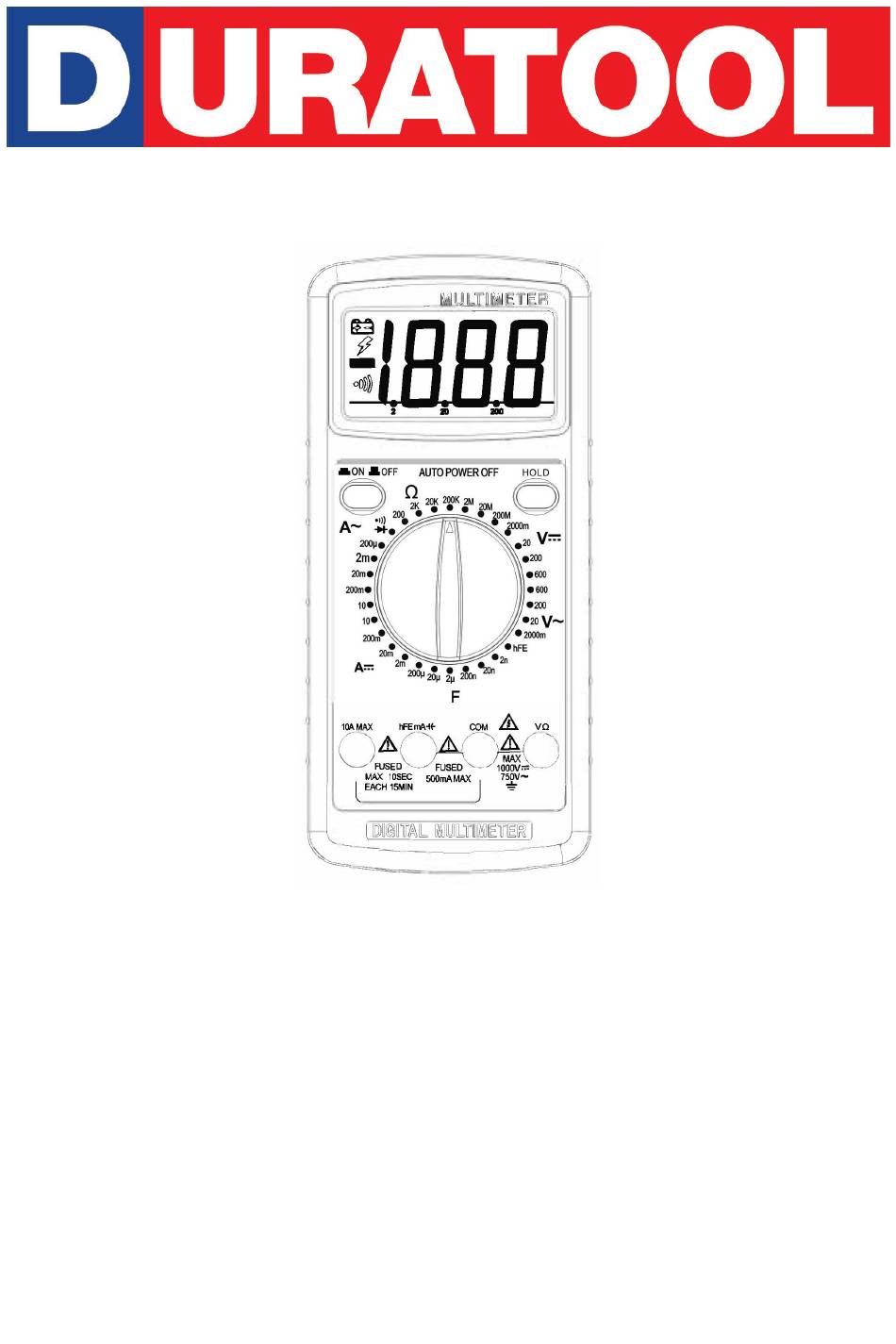

- Page 1 Models: D03143 / D03144 Digital Multimeter...
-
Page 2: Table Of Contents
CONTENTS Page Number Details What’s Included? Important Safety Information General Specification Function Overview Specifications DC Voltage AC Voltage Temperature DC Current AC Current Transistor hFE Test Resistance Diode & Continuity Capacitance Frequency Measuring Voltage Measuring Current Measuring Resistance Continuity Test Diode Test Transistor Test (W/Multifunction Adaptor) Measuring Temperature (W/Multifunction Adaptor) -
Page 3: Important Safety Information
-10°C to 50°C, less than 85% RH Battery Type 9V battery IEC 6F22, NEDA 1604 Dimensions 193 x 90 x 37mm Weight Approx. 251g FUNCTIONS Model DCV ACV DCA ACA Ω °C D03143 D03144 ... -
Page 4: Overview
OVERVIEW Power button Range switch A/mA terminal VΩ terminal 10A terminal COM terminal SPECIFICATIONS • Accuracy is guaranteed for one year, 23°C ± 5°C, less than 80% RH. DC VOLTAGE Range Resolution Accuracy 200mV 0.1mV ± (0.5% rdg + 3 digits) •... -
Page 5: Dc Current
± (1.8% of rdg + 2 digits) • mA: F0.5A/600V fuse 1µA (D03144). 20mA 10µA • A: F2A/600V fuse (D03143). • 10A: F10A/600V fuse. 200mA 100µA ± (2.0% of rdg + 2 digits) • Voltage drop: 200mV. ± (2.0% of rdg + 10... -
Page 6: Capacitance
MEASURING CURRENT • Connect the black test lead to the “COM” jack. If the current to be measured is less than 200mA for D03144, or less than 2A for D03143, connect the red test lead to the “mA”/“A” jack. •... -
Page 7: Measuring Resistance
connection will be indicated as well. Note: When the display shows the overrange symbol “1”, a higher range must be selected. MEASURING RESISTANCE • Connect the black test lead to the “COM” jack and the red test lead to the “VΩ” jack. -
Page 8: Capacitance Measuring
- mA: F0.5A/600V fast, breaking capacity is 10kA, dimensions 5 x 20mm. - 10A: F10A/600V fast, breaking capacity is 10kA, dimensions 5 x 20mm. - A (D03143): F2A/600V fast, breaking capacity is 10kA, dimensions 5 x 20mm. INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &...
