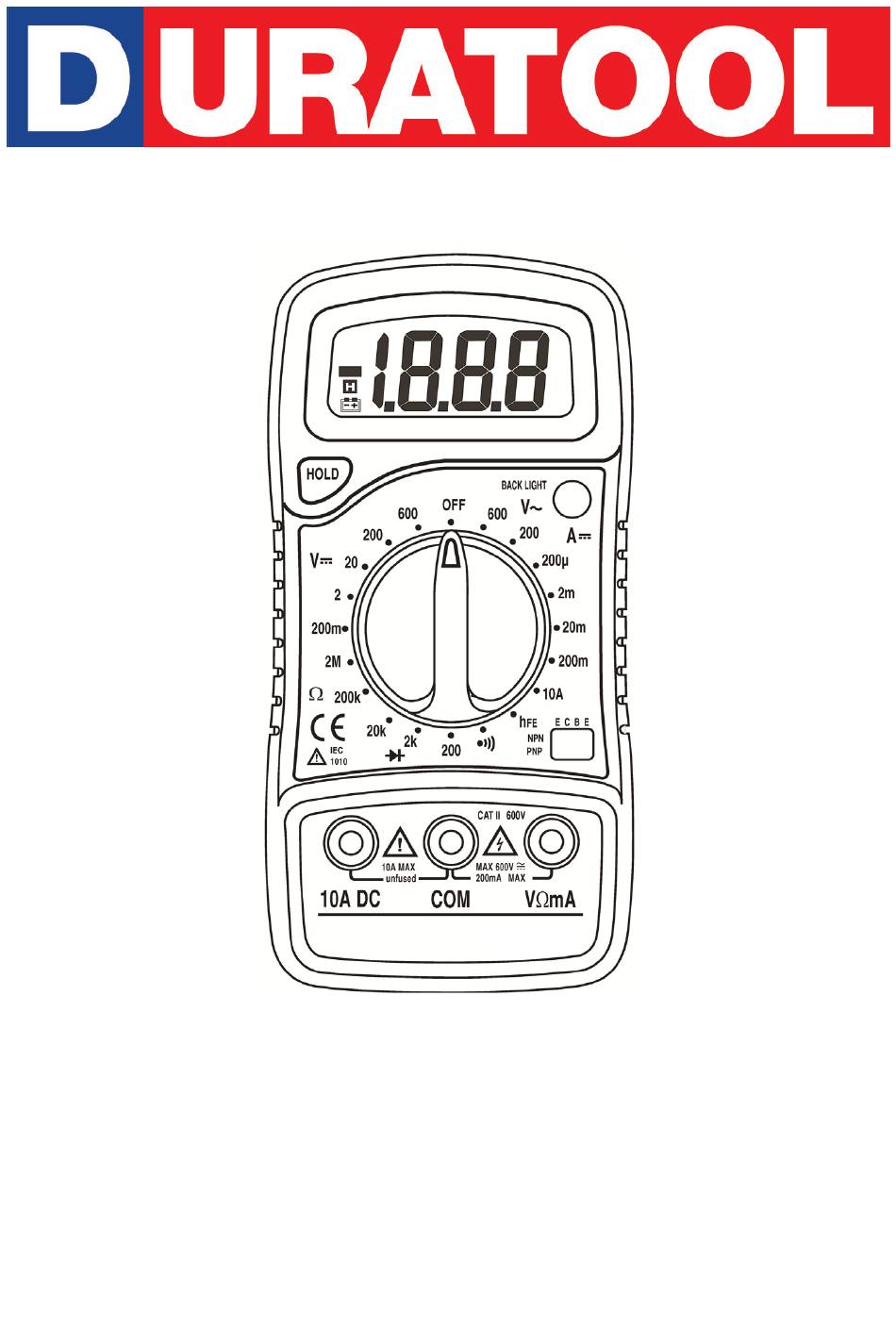

- Page 1 MODEL: D03126 Digital Multimeter with Backlight...
-
Page 2: Table Of Contents
CONTENTS Page Number Description Important Safety Information What’s Included? Overview Front Panel Description General Specification DC Voltage DC Current AC Voltage Diode & Continuity Resistance Transistor hFE Test (0-1000) Operation - DC Voltage Measurement Operation - DC Current Measurement Operation - AC Current Measurement Operation - Resistance Measurement Operation - Diode Test Operation - Transistor Test... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. Important safety information. Read the instructions carefully. High voltage. Danger. Ground. Double Insulation (Class II safety equipment). Fuse must be replaced as per the specification herein. 200mA/250V •... -
Page 4: Overview
OVERVIEW Front Panel Description Display - 3½ digit, 7 segment, 15mm high LCD Backlight - once pushed the backlight of the display will turn on. It will self- turnoff after about five seconds. To turn the backlight on again, just push the button. -
Page 5: General Specification
GENERAL SPECIFICATION Accuracy is specified for a period of one year after calibration and at 18 to 28°C (64°F to 82°F) with relative humidity to 80%. Max. voltage between terminals and CAT II 600V earth ground Fuse Protection F 200mA / 250V Power 9V battery, NEDA 1604 or 6F22 Display... -
Page 6: Ac Voltage
AC VOLTAGE Range Resolution Accuracy 200V 100mV ± 1.2% of rdg ± 10 digits 600V ± 1.2% of rdg ± 10 digits Overload protection: 600V DC or RMS. AC for all ranges. Frequency range: 40Hz to 400Hz. Response: average responding, calibrated in rms of a sine wave. DIODE &... -
Page 7: Operation - Dc Current Measurement
OPERATION - DC CURRENT MEASUREMENT • Connect the red test lead to the “VΩmA” jack and the black test lead to the “COM” jack. • Note: for measurements between 200mA and 10A, remove the red lead to the “10A” jack. •... -
Page 8: Operation - Audible Continuity Test
OPERATION - AUDIBLE CONTINUITY TEST • Connect the red test lead to the “VΩmA” jack and the black test lead to the “COM” jack. • Set the range switch to “ ” position. • Connect the test leads to the two points of the circuit to be tested. If continuity exists, the built-in buzzer will sound.
