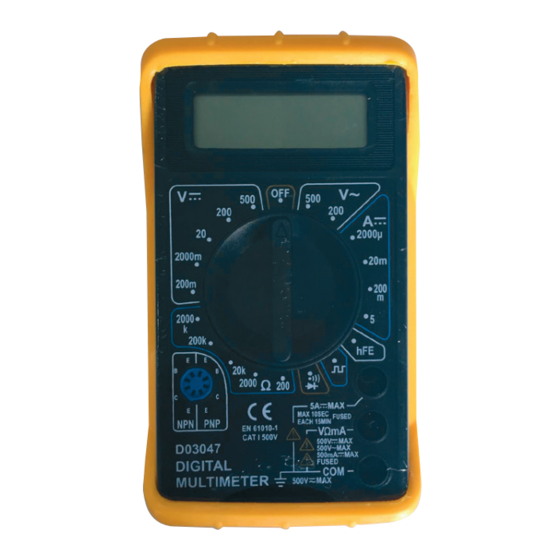

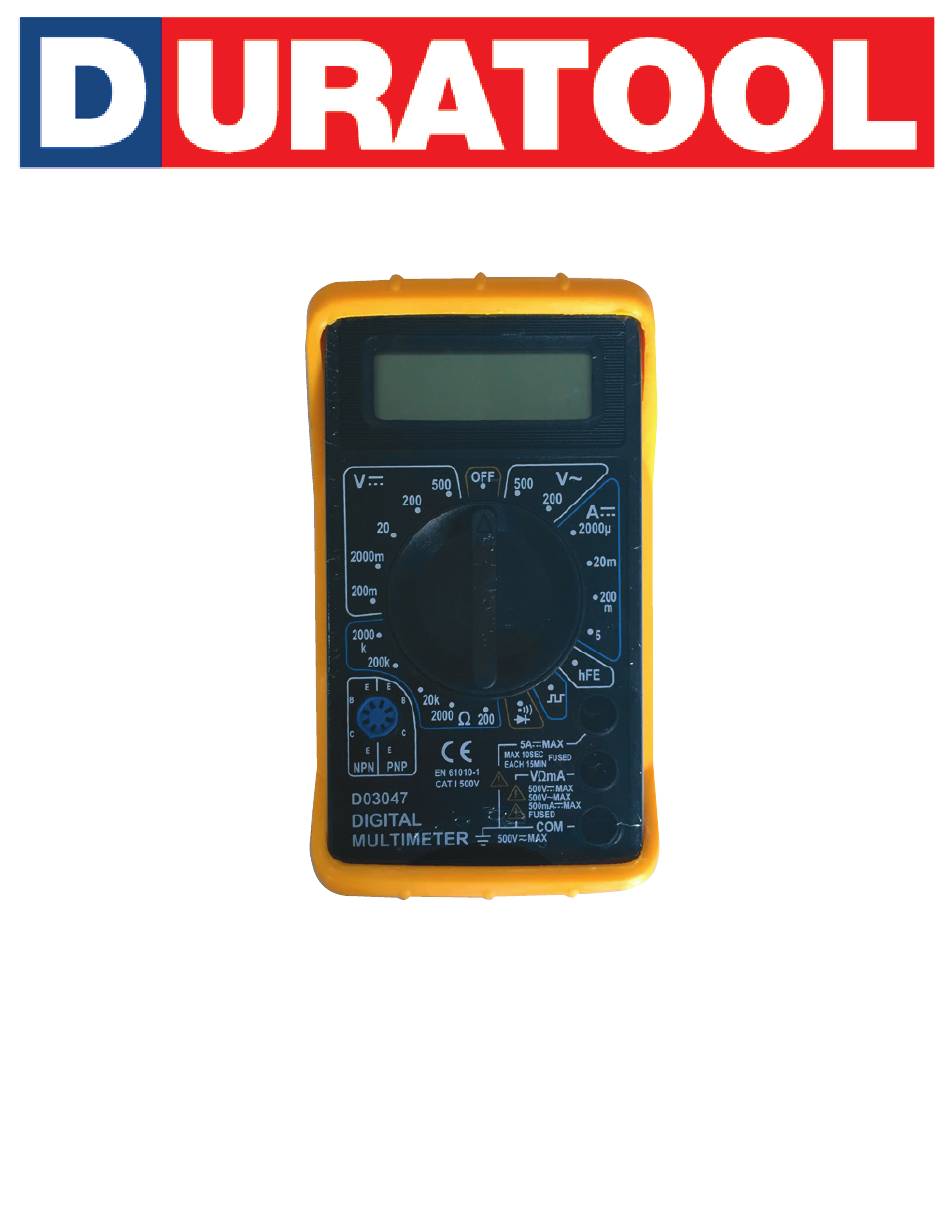

- Page 1 DIGITAL MULTIMETER Model: D03046 and D03047...
- Page 2 Never dispose of batteries in a fire, or attempt to recharge ordinary batteries. • Before replacing the battery, turn off the meter and disconnect all the test probes. • To prolong battery life turn off the meter after use. FUNCTIONS Model Ω D03046 D03047...
- Page 3 Rotary Range Selector 5A Jack hFE Socket VΩmA Jack COM Jack DC VOLTAGE Range Resolution Accuracy 200mV 100µV ±(0.5% of rdg +3D) 2000mV 10mV ±(0.8% of rdg +5D) 200V 100mV 500V ±(1.0% of rdg +5D) • OVERLOAD PROTECTION: 220V rms AC for 200mV range and 500V DC or 500V rms for all ranges.
- Page 4 AC VOLTAGE Range Resolution Accuracy 200V 100mV ±(2.0% of rdg +10D) 500V • RESPONSE: Average responding, calibrated in rms of a sine wave. • FREQUENCY RANGE: 45Hz ~ 450Hz. • OVERLOAD PROTECTION: 500V DC or 500V rms for all ranges. CONTINUITY Range Description...
- Page 5 RESISTANCE Range Resolution Accuracy ±(1.0% of rdg +10D) Ω Ω 2000 Ω Ω Ω Ω ±(1.0% of rdg +4D) 200k 100k Ω Ω 2000k Ω Ω • MAXIMUM OPEN CIRCUIT VOLTAGE: 3V. • OVERLOAD PROTECTION: 15 seconds maxi- mum 220Vrms. OPERATION DC &...
- Page 6 RESISTANCE MEASUREMENT • Red lead to “VΩmA”. Black lead to “COM”. • Set RANGE switch to desired Ω position. • If the resistance being measured is connected to a circuit, turn off power and discharge all capacitors before measurement. • Connect test leads to circuit being measured.
- Page 7 BATTERY REPLACEMENT • If “ ” appears in display, it indicates that the battery should be replaced. • To replace battery remove the meter from the protective surround, then remove the 2 screws in the rear of the case • Remove the rear case half and simply remove the old battery, and replace with a new one.
- Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
