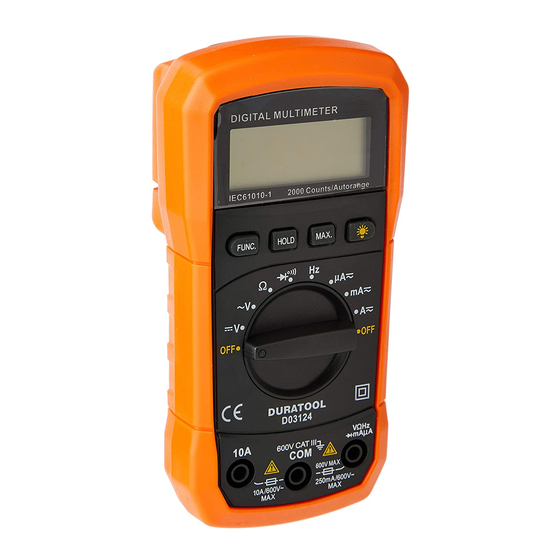

- Page 1 MODEL: D03124 DIGITAL MULTIMETER AUTORANGING...
-
Page 2: Table Of Contents
CONTENTS Page Number Details Introduction What’s Included Important Safety Information Symbol Guide Overview Buttons Display Indicators General Specification Electrical Specification Measurement Operation DC & AC Voltage Measurement Resistance Measurement Diode Check Continuity Check Frequency Measurement DC/AC µA or mA Measurement DC/AC 10A Measurement Temperature Measurement Maintenance... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • When using electrical appliances basic safety precautions should always be followed. • Use the meter only as specified in this manual, or the protection provided may be impaired. -
Page 4: Overview

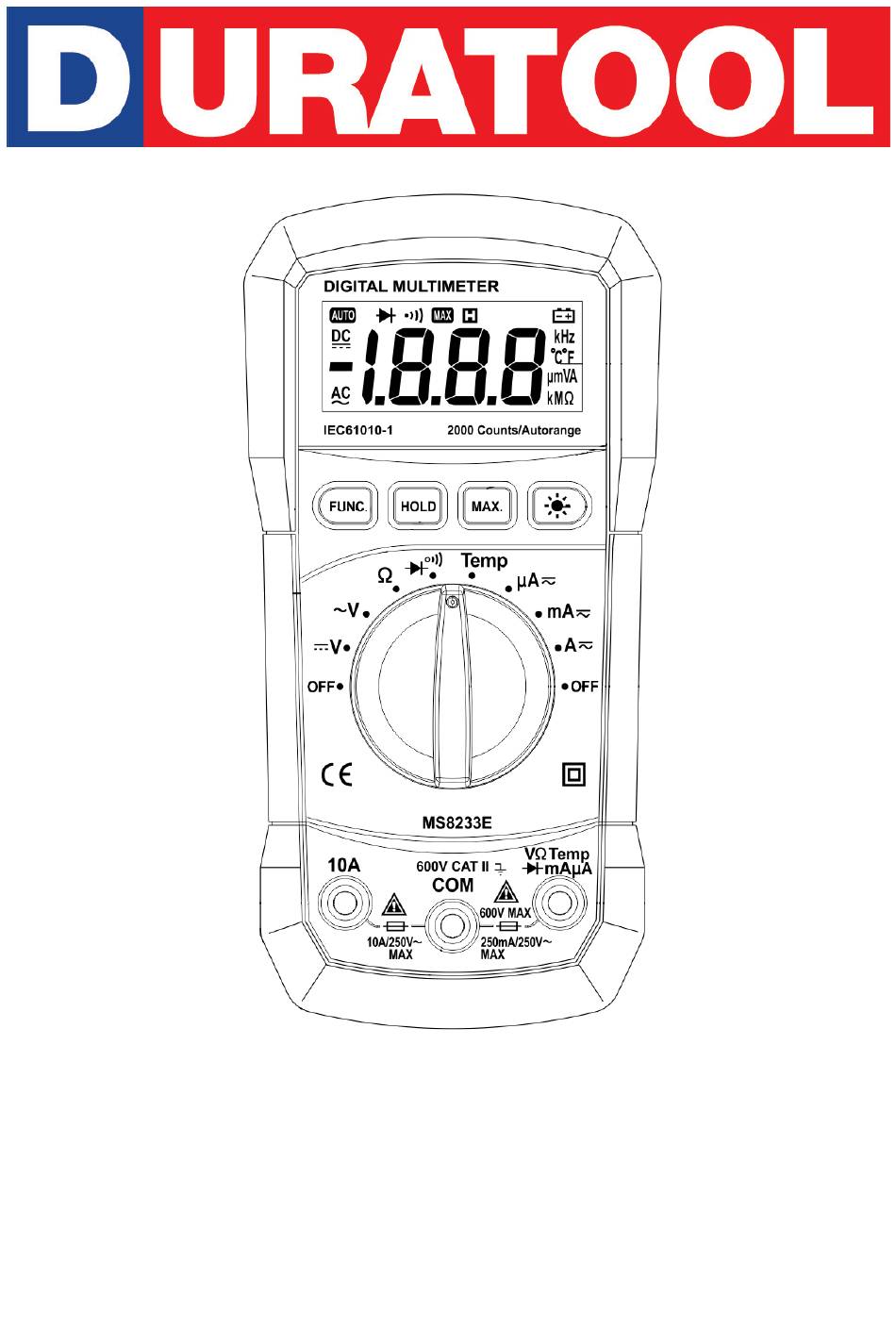

OVERVIEW Rotary switch MAX button V/Ω/Hz/μA/mA/Temp Input terminal Backlight button COM input terminal Hold button 10A input terminal Function button... -
Page 5: Buttons
BUTTONS Button Function “FUNC” key is the function select key that act with FUNC trigger. Use the key as switch of DC/AC current, Diode/ Continuity and °C/°F. Enter and exit the hold mode in any mode that acts with HOLD trigger. -
Page 6: General Specification
GENERAL SPECIFICATION • Autoranging digital multimeter • AC electric field detection function (NCV function) • Data hold function • MAX value hold function • Backlight • Low battery indication Display 3½ digit LCD Used the PTC protection for resistance, temperature and Overload Protection frequency measurement. - Page 7 RESISTANCE Range Resolution Accuracy 200Ω 0.1Ω 2kΩ 0.001kΩ ±(0.8% rdg + 2 counts) 20kΩ 0.01kΩ 200kΩ 0.1kΩ 2MΩ 0.001MΩ ±(1.0% rdg + 2 counts) 20MΩ 0.01MΩ DIODE CHECK Range Resolution Function • Operating current: about 1mA Will display the • Open circuit voltage: about 1.48V 0.001V forward drop voltage CONTINUITY...
-
Page 8: Measurement Operation
TEMPERATURE Range -20 to 1000°C Resolution 1°C -20 to 0°C (5% rdg + 4 counts) Accuracy 0 to 400°C (2% rdg + 3 counts) 400 to 1000°C (3% rdg + 3 counts) • You can select °C or °F Fahrenheit temperature (°F) with the “FUNC”... -
Page 9: Diode Check
contact resistance value from the measured value. • For high-resistance measurement (>10MΩ), it is normal to take several seconds to obtain a stable reading. • The LCD display will read “OL”, indicating an open-circuit for the tested resistor or the resistor value is higher than the maximum range of the meter. DIODE CHECK •... -
Page 10: Temperature Measurement
measurement and the interval time between two measurements should be greater than five minutes. • When current measurement has been completed, disconnect the connection between the testing lead and the circuit under test. TEMPERATURE MEASUREMENT • To measure temperature use the K-type probe. •...
