Pro-Form 190 ZLX User Manual page 7

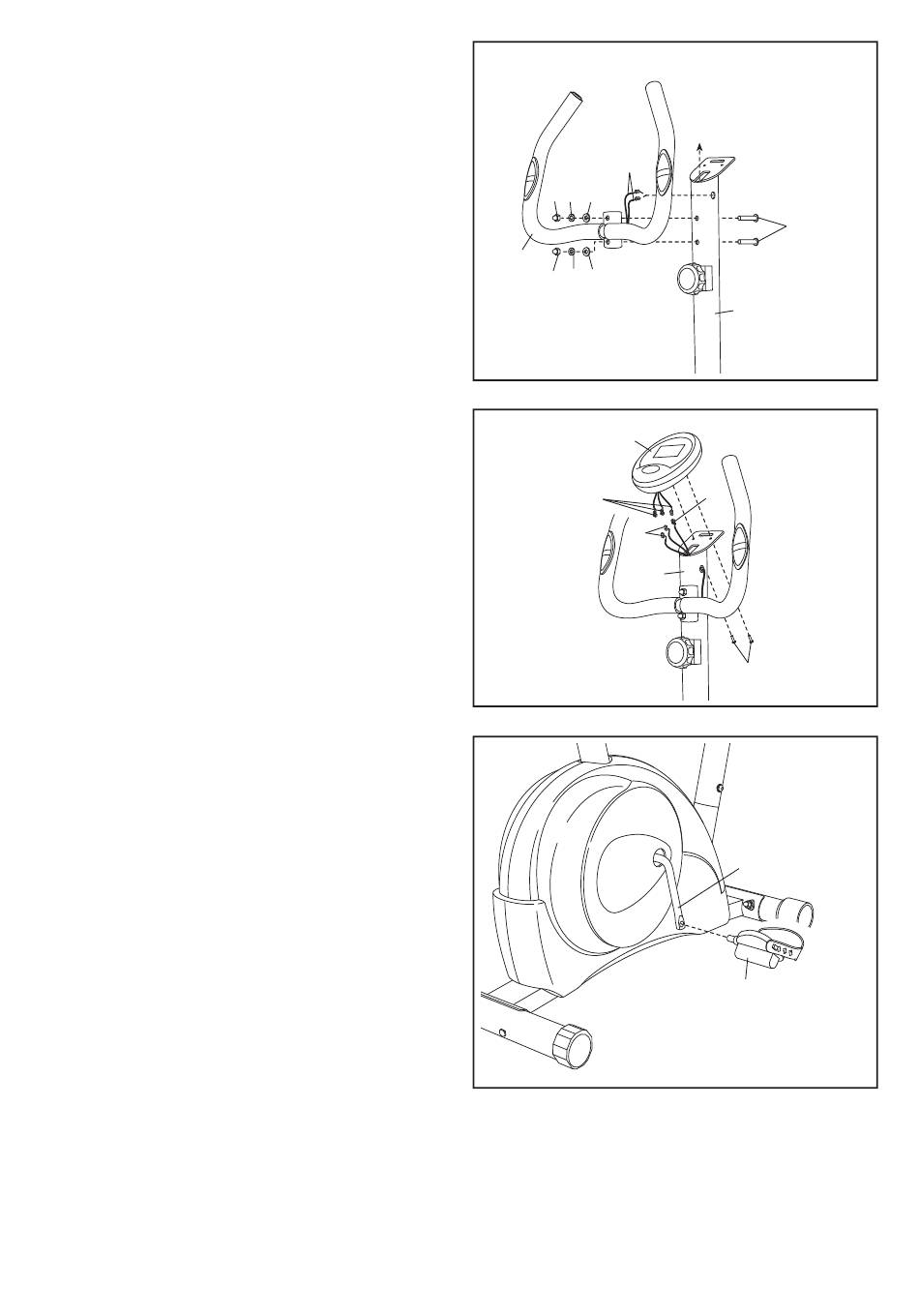

5. Orient the Handlebar (S) as shown.
While a second person holds the Handlebar (S)
near the Upright (M), insert the Pulse Wires (T)
into the hole in the side of the Upright and pull
them upward out of the top of the Upright.
Tip: Avoid pinching the wires. Attach the
Handlebar (S) to the Upright (M) with two Long
Bolts (C), two Curved Washers (D), two Flat
Washers (E), and two Acorn Nuts (F).
6. While a second person holds the Console (U)
near the Upright (M), connect the console wires
to the Upper Wire (N) and to the Pulse Wires
(T).
Tip: Avoid pinching the wires. Slide the
Console (U) onto the Upright (M).
Note: If there are two Console Screws (V),
attach the Console (U) to the Upright (M)
with the Console Screws. If there are no
Console Screws, they are not needed.
7. Identify the Right Pedal (W), which is marked
with an "R."
Using an adjustable wrench, firmly tighten the
Right Pedal (W) clockwise into the Right Crank
(X).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise cycle
for one week, retighten the pedals.
8. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
All manuals and user guides at all-guides.com
7
5
T
E
F D
S
E D
F
6
U
Console
Wires
T
M
Avoid pinching
the wires
7
Avoid pinching
the wires
C
M
N
V
X
W
