User manual
M A N U E L
D ' U T I L I S A T I O N
G E B R U I K S A A N W I J Z I N G
G E B R A U C H S A N W E I S U N G
M A N U A L E D I I S T R U Z I O N I
M A N U A L
D E
I N S T R U C C I O N E S
I N S T R U K C J A
O B S Ł U G I
N Á V O D
K
O B S L U Z E
SE04, SE104

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vermeiren SE04

Summary of Contents for Vermeiren SE04

  • Page 1 I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D O B S L U Z E SE04, SE104...

  • Page 3: Table Of Contents

    SE04, SE104 2021-11 Content Content Content ........................1 Preface........................2 Description ....................3 Before use ..................... 5 General safety instructions ................5 Driving ......................6 Operating console functions ............... 7 Switching ON / OFF ..................7 Failures and blocks ..................8 Battery status and charging ................

  • Page 4: Preface

    Preface Preface Important note This manual reflects the latest product developments. Vermeiren has the right to implement changes to this type of product without being imposed to any obligation to adapt or replace similar products previously delivered. Pictures are used to clarify the instructions in this manual. Details of the depicted product may deviate from your product.

  • Page 5: Description

    SE04, SE104 2021-11 Description Description The operating console built into your electric wheelchair enables you to control all the driving, steering, braking and operating processes, as well as other adjusting motors (lifting column, seat and back adjuster). The wheelchair's electrical unit and electronics are constantly being monitored internally.

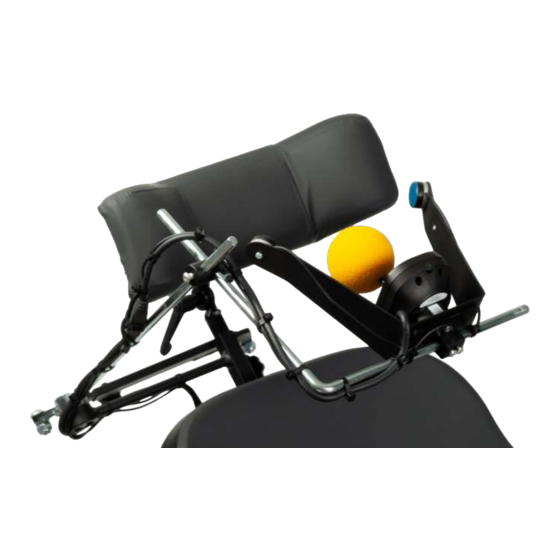

  • Page 6 SE04, SE104 2021-11 Description Important parts (chin controller) 10. ON / OFF button with status indicator 11. Functions indicator 12. Menu navigation button 13. Joystick 14. ON / OFF button (green, right) * 15. Navigation button (blue, left) * * Upon request, these buttons can be installed to switch sides.

  • Page 7: Before Use

    • In case of doubts or questions, do not hesitate to contact your local specialist dealer, your care provider, or your technical adviser to help you with this. Vermeiren is responsible for software updates/repairs. For adaptations in the software, contact Vermeiren, see our website http://www.vermeiren.com/...

  • Page 8: Driving

    SE04, SE104 2021-11 Driving does not change its speed when you adjust the speed dial; displays a fault on its fault indicator and the controller does not perform normally. • Turn the controller off: when you do not use it;...

  • Page 9: Operating Console Functions

    SE04, SE104 2021-11 Operating console functions Operating console functions The operating console with chin controller enables you to control all driving components as well as the motors to adjust your body position. For your own safety, and to prevent that the wheelchair gets damaged, movements are monitored by the electronics.

  • Page 10: Failures And Blocks

    SE04, SE104 2021-11 Operating console functions 4.1.2 Sleep mode The operating console will go into sleep mode after a period of inactivity (default 5 minutes). When the system sleeps, it is partially turned off to reduce energy consumption. To reactivate the operating console, press a button or move the joystick.

  • Page 11: Navigation

    SE04, SE104 2021-11 Operating console functions 4.3.1 Charging • Driving is prevented (inhibited) while the system is being charged. • Charging is possible without switching the operating console ON. To see the battery status indicator, switch it ON. Plug the battery charger into the remote's XLR socket (9), see Figure 1.
  • Page 12 SE04, SE104 2021-11 Operating console functions Settings button and pop-up screen • To navigate to one of the items in the pop-up screen, tap on the item. • To navigate to the previous screen, tap the return arrow. • To close the pop-up screen, tap on the cross key (M) at the bottom of the screen.
  • Page 13 SE04, SE104 2021-11 Operating console functions 4.5.3 Glove mode The touchscreen is programmed to a particular degree of touch sensitivity. For this reason, the screen does not respond when you wear gloves. With this function, you can increase the touch sensitivity so you can operate the console while wearing gloves.

  • Page 14: Joystick Operation (Driving And Braking)

    SE04, SE104 2021-11 Operating console functions Joystick operation (driving and braking) Operating the joystick in a specific direction will move the electric wheelchair in that direction. The speed of movement depends on the displacement of the joystick. If the joystick is pushed/pulled to maximum displacement, the speed will be maximal (within the selected drive mode).

  • Page 15: Changing Drive Function

    SE04, SE104 2021-11 Operating console functions Seat height (lift) Backrest inclination Seat & backrest inclination Both foot supports/central Left foot support Right foot support footplate Possible submenus Changing drive function The wheelchair's speed functions can be operated from the D1, D2, or D3 submenu.

  • Page 16: Adjusting The Chin Controller

    SE04, SE104 2021-11 Operating console functions 4.9.1 Limited driving speed For your safety, the driving speed of your wheelchair will be automatically reduced when certain body position alterations have been made. The drive of the wheelchair is then limited to the lowest speed setting D1, or even becomes completely blocked.
  • Page 17 SE04, SE104 2021-11 Operating console functions The complete chin controller: • Manually: Turn the complete chin controller support inward/outward by means of the hinge (7). • Electrically: Push the separate controller button to activate the motor and move the chin controller support inward/outward.

  • Page 18: Troubleshooting

    SE04, SE104 2021-11 Troubleshooting Troubleshooting WARNING Risk of injuries and damage to the operating console or wheelchair • NEVER attempt to repair the operating console yourself. • For failures of the operating console, you need to contact your specialist dealer.
  • Page 20 Vermeiren GROUP Vermeirenplein 1 / 15 2920 Kalmthout website: www.vermeiren.com Instructions for specialist dealer This instruction manual is part and parcel of the product and must accompany every product sold. Version: B, 2021-11 All rights reserved, including translation.

This manual is also suitable for:

Se104
