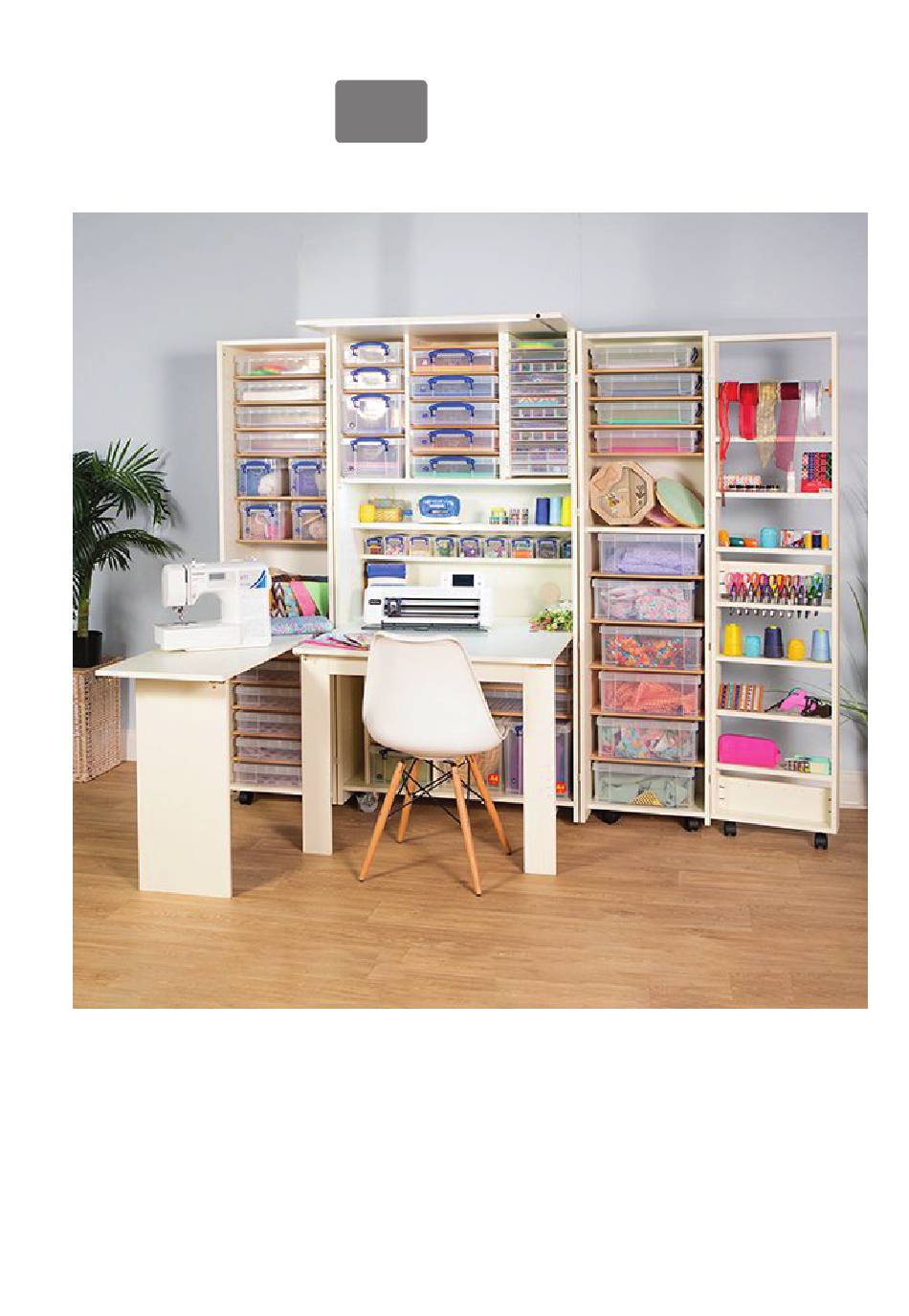

- Page 1 store Knighthayes away Edition 2.0 Assembly Instructions revised 0719 - 1.0...
- Page 2 It is strongly recommended to have two persons present when assembling this item. We advise that you unpack the boxes in the order shown in these instructions and follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
- Page 3 Your hardware pack should contain the following: CONNECTING TRANSFORMER FOLDING LEG BOLT (CB1) BRACKET (FLB1) (TRANS1) X 68 PLUG WHITE CONNECTING (PLUG1) CASTOR (C1} LOCK (CL1) X 68 MINI CABLE SCREW (CHSC-10} OUTLET CONNECTING X 16 LOCK (CB2) X 60 BOLT WASHER (W1} (BB1) X 4...
- Page 4 STEP 1 SA433/190-1S You will need to open box - Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all the holes marked with a red circle screw in to this point Screw CB1 Bolts into all the holes marked with a blue circle SA433-...
- Page 5 STEP 2 SA433/2BCB You will need to open box - From this box you will require panel SA433-BASE SA433- BASE Insert CL1 Locks into the holes as indicated BACK EDGE Attach the White Castors C1 to the base using washer W1 and Screw CHSC-10 - castor locations are marked in orange STEP 3...
- Page 6 STEP 4 With the SA433/190LHS laying on the solid at clean surface (we recommend the oor) attach the two back panels and the base. Secure by turning all of the connecting locks in the backs and the base approx one half turn. Then screw the remaining 35-17D screws into the angle brackets to secure the side to the base. SA2B SA2B BACK EDGE...
- Page 7 STEP 5 With the unit still laying on the oor place the SA433/190RHS onto the top and secure all the connecting locks and angle brackets. Then carefully stand the unit onto its wheels. IT IS HIGHLY RECOMMENDED TO HAVE TWO PEOPLE TO COMPLETE THIS STEP TO AVOID INJURY OR DAMAGE TO THE PRODUCT. SA2B SA2B BACK EDGE...
- Page 8 STEP 6 SA433/35- You will need to open box - SA433/ 35TOP screw in to this point Screw CB1 Bolts into all the holes marked with a blue circle Place the SA433/35-TOP onto the top of the section you have already constructed and tighten the connecting locks to secure.
- Page 9 STEP 7 SA433-DS SA190/2TCB You will need to open boxes - You will require SA-LSH from box SA190/2TCB for this step keep the other panels to one side. Fit the SA-LSH and SA433-DS into the unit as indicated. Then secure by tightening the locks which are tted into the panels SA-LSH SA433-DS...
- Page 10 STEP 8 You will require SA190-BACK from SA190/2TCB for this step. Fit SA190-BACK and tighten the locks which are pre- tted to the panel. SA-LSH SA433-DS Screw CB2 Bolts into all the holes marked with a red circle BACK EDGE S A 4 3 S A 4 3 1 9 0 L H...
- Page 11 STEP 9 You will require 2 x SA190-TCD and 2 x SA-BCD from boxes you have already opened. Ensure the centre dividers are the correct way up with the label indicating the top of the panel at the top. SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are tted into the panels...
- Page 12 STEP 10 SA-LSH SA-SH SA-SSH Optional shelves SA-SH and SA-SSH (found in box SA-DESK) can be tted into this section if requried, you can use either shelf pegs SP1 or mini connecting locks CB2 to x the shelves SA433-DS BACK EDGE S A 4 3 S A 4 3 1 9 0 L H...
- Page 13 STEP 11 - You will need to open box SA-DESK You will require SA500-DESK, SA-LBAR and 2 x SA-TLEG from box SA-DESK which you may have already opened. Attach Bolts BB1 with Screws 30-15G SA500-DESK Add a small quantity of PVA glue into each hole marked with a red circle.
- Page 14 STEP 12 Attach the complete desk to the main section using the two part hinges that are already attached to the desk and the desk shelf. The hinges can be adjusted to ensure the desk is level by turning the small adjustment screw clockwise or counter clockwise.
- Page 15 STEP 13 SA190/35 You will need to open box - 2STB Before you start to construct this section you need to decide if you would like it to be tted to the Left Hand side or the Right Hand side of the centre section. The standard con guration is to t it to the Left Hand Side.
- Page 16 STEP 14 Insert CL1 connecting locks into the SA35-TOP and the SA35-BASE as shown below. Then attach the C2 casters to the SA35-BASE using screws 35-17D as shown below. Insert CL1 Locks into the holes as indicated SA35-TOP Attach Castor C2 to SA35-BASE using 35-17D Screws SA35-BASE...
- Page 17 STEP 15 With the SA35-190S1 laying on the solid at clean surface (we recommend the oor). Attach the SA35-190S1 and SA35-190S2 to the SA35- BASE and SA35-TOP and secure by tightening the locks you have already tted. Then x the angle brackets to the base using screw 35-17D.
- Page 18 STEP 16 With the Door Fascia Panel SA190-FASCIA laying on the solid at clean surface (we recommend the oor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels. OPTION 1 - To t to the LEFT HAND SIDE OPTION 2 - To t to the RIGHT HAND SIDE screw in to...
- Page 19 STEP 17 Using Hinge H2 and Screws 30-15S attach the completed door section to the centre section you have already constructed. SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are tted into the panels SA433-DS BACK EDGE...
- Page 20 SA190 STEP 18 DOOR DESK You will need to open: Screws 30-15G SA190-DOOR DESK S10 (to fix into the brass inserts) and screws 35-15S (to fix into the pre-drilled holes)
- Page 21 STEP 19 SA35-DS You will need to open: Screw CB2 Bolts into all the holes marked with a red circle and indicated with an arrow below. Fit the SA35-DS panel onto the CB2 bolts you have tted and tighten the ttings to secure the shelf SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are tted into the...
- Page 22 STEP 20 Attach the complete desk to the door section using the two part hinges that are already attached to the desk and the desk shelf. The hinges can be adjusted to ensure the desk is level by turning the small adjustment screw clockwise or counter clockwise.
- Page 23 STEP 21 SA190/35 You will need to open box - 1STB-RACK Before you start to construct this section you need to decide if you would like it to be tted to the Left Hand side or the Right Hand side of the centre section. The standard con guration is to t it to the Right Hand Side.
- Page 24 STEP 22 Insert CL1 connecting locks into the SA26-TOP and the SA26-BASE as shown below. Then attach the C2 casters to the SA26-BASE using screws 35-17D as shown below. Insert CL1 Locks into the holes as indicated SA26-TOP Attach Castor C2 to SA35-BASE using 35-17D Screws SA26-BASE...
- Page 25 STEP 23 With the SA26-190SR laying on the solid at clean surface (we recommend the oor). Attach the SA26-190S2 and SA26-190SR to the SA26- BASE and SA26-TOP and secure by tightening the locks you have already tted to the panels. The x the angle brackets to the base using screw 35-17D.
- Page 26 STEP 24 With the Door Fascia Panel SA190-FASCIA laying on the solid at clean surface (we recommend the oor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels. OPTION 1 - To t to the LEFT HAND SIDE OPTION 2 - To t to the RIGHT HAND SIDE screw in to...
- Page 27 STEP 25 Using Hinge H2 and Screws 30-15S attach the completed door section to the centre section you have already constructed. SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are tted into the panels SA433-DS BACK EDGE...
- Page 28 Attach Castor C2 to STEP 26 SA8-BASE using 35-17D Screws SA8-BASE SA8-TOP Screw CB2 Bolts into all the holes marked with a red circle Attach the SA8 sides to the SA8-BARs and secure by tightening the locks The t the SA8-TOP and SA8-BASE in the same way.
- Page 29 STEP 27 Using Hinge H2 and Screws 30-15S attach the completed rack section to the door section you have already constructed. SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are tted into the panels SA433-DS BACK EDGE...
- Page 30 STEP 28 Add shelves, racks and ribbon holders to the rack section you have just constructed Shown above are a ribbon dowel and holders. To t insert SP1 shelf pegs into the two holes in each holder and then press the holder into the side of the rack you have constructed.
- Page 31 STEP 29 A standard layout of boxes is shown below. The best way to t the boxes is to start at the bottom of each section, insert a box then add shelf pegs (SP1) and a shelf above then continue until the section is full. Use MDF shelves and SP1 shelf pegs as supplied.
- Page 32 store Knightshayes away Edition 2.0 Suggested box layout The Storeaway Knightshayes 2.0 unit is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
