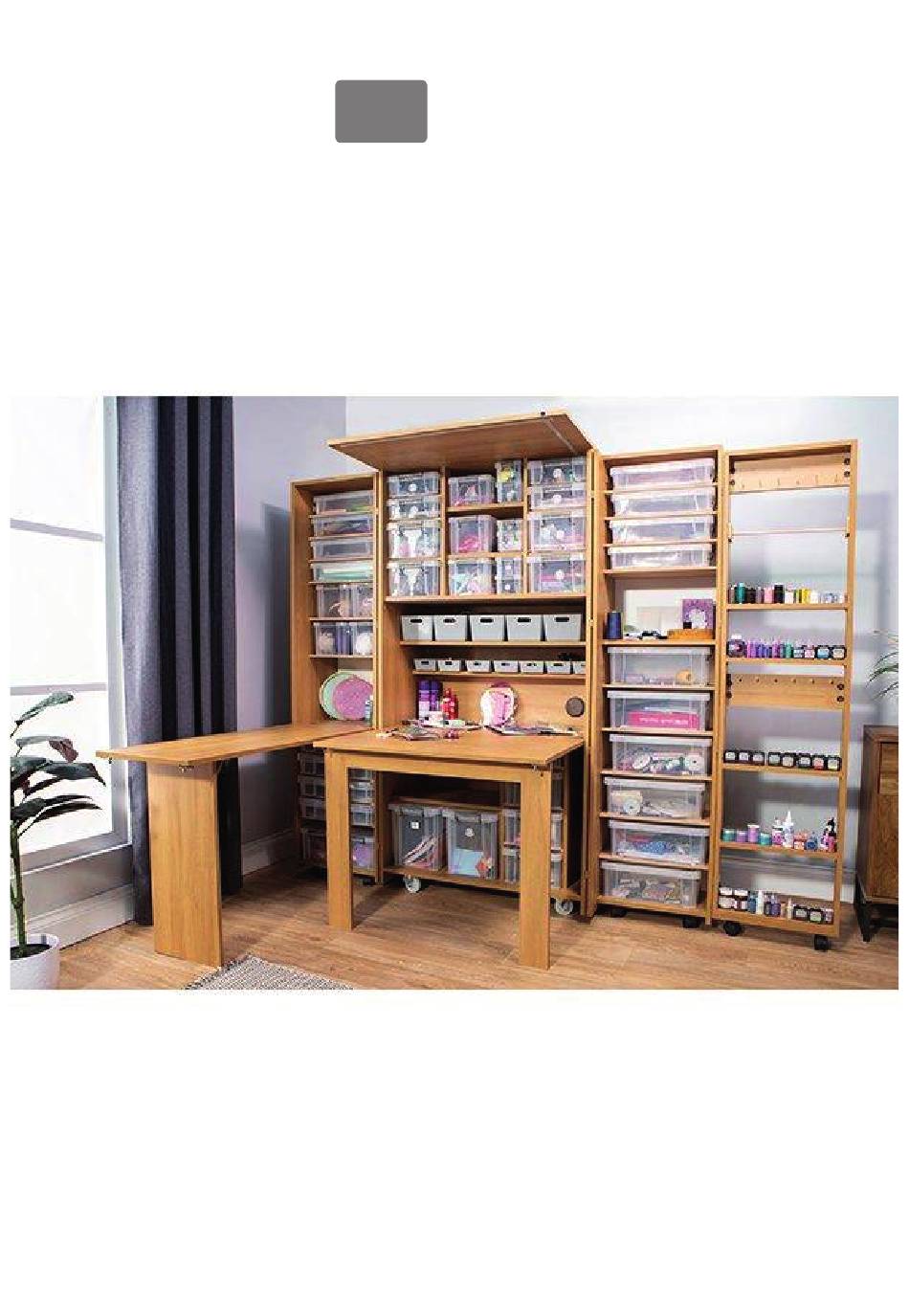

store
Knightshayes
away
Edition 2.0
Assembly Instructions
revised 0123 - 1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the STOREAWAY Knighthayes 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Storage 4 Crafts STOREAWAY Knighthayes 2.0

Summary of Contents for Storage 4 Crafts STOREAWAY Knighthayes 2.0

  • Page 1 store Knightshayes away Edition 2.0 Assembly Instructions revised 0123 - 1.1...
  • Page 2 It is strongly recommended to have two persons present when assembling this item. We advise that you unpack the boxes in the order shown in these instructions and follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
  • Page 3 Your hardware pack should contain the following: IF LIGHTING ORDERED CONNECTING TRANSFORMER FOLDING LEG BOLT (CB1) (TRANS1) BRACKET (FLB1) X 76 PLUG CONNECTING (PLUG1) HANDLE & SCREW LOCK (CL1) (K1) X 2 X 76 -- OR -- MINI CABLE KNOB & SCREW CONNECTING OUTLET (K1) X 2...
  • Page 4 STEP 1 You will need all Knightshayes 1 of the panels from this You will need to open box - Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all the holes marked with a red circle screw in to this point Screw CB1 Bolts into all...
  • Page 5 STEP 2 You will require panel KH M BASE from this Knightshayes 2 You will need to open box - box keep the other panels to one side Insert CL1 Locks into the holes as indicated with a blue circle KH M BASE Front Edge Attach castors C2...
  • Page 6 STEP 3 With the KH M SIDE laying on the solid flat clean surface (we recommend the floor) attach the two back panels and the base. Secure by turning all of the connecting locks in the backs and the base approx one half turn.
  • Page 7 STEP 4 With the unit still laying on the floor place the other KH M SIDE onto the top and secure all the connecting locks and angle brackets. Then carefully stand the unit onto its wheels. IT IS HIGHLY RECOMMENDED TO HAVE TWO PEOPLE TO COMPLETE THIS STEP TO AVOID INJURY OR DAMAGE TO THE PRODUCT.
  • Page 8 STEP 5 You will require Knightshayes 2 panels KH M LSH from You will need panels from box - this already opened Fit the KH M LSH into the unit as indicated. Then secure by tightening the locks which are fitted into the panel SA-LSH screw in to...
  • Page 9 STEP 6 You will require Knightshayes 3 the nal panel from You will need panels from box - this box SA-190-BACK Fit SA190-BACK and tighten the locks which are pre-fitted to the panel. BACK EDGE S A 4 3 3 S A 4 3 1 9 0 L H 1 9 0 L H...
  • Page 10 STEP 7 You will need panels Knightshayes 5 You will need to open box - KH M BCD x 2 and KH M TCD x 2 from this box Ensure the centre dividers are the correct way up with the label indicating the top of the panel at the top. If in doubt there is also a small 3mm drilled hole in the upper rear corner of the panels to indicate the top.
  • Page 11 STEP 8 You will require panel Knightshayes 4 KH M TOP from this You will need to open box - box keep the other panel to one side KH M screw in to this point Screw CB1 Bolts into all the holes marked with a blue circle Place the KH M TOP onto the top of the section you have already constructed and tighten the...
  • Page 12 STEP 9 You will require Knightshayes 2 panels KH M SSH, You will need panels from box - KH M SH and KH M DS from this box Optional shelves SA-SH and SA-SSH (found in box Knightshayes 2) can be fitted into this section if requried, using shelf pegs SP3 KH M SH...
  • Page 13 STEP 10 Knightshayes 2 Knightshayes 4 You will need panels from boxes - You will require the nal panel from these boxes KH M DESK, KH M TLEG (left & right) & KH M LBAR Attach Bolts BB1 with Screws 30-15S KH M DESK KH M LBAR KH M LBAR...
  • Page 14 STEP 11 Attach the complete desk to the main section using the two part hinges that are already attached to the desk and the desk shelf -- OR -- hinge H3 and screws 35-15S as supplied. Once in place ensure it is secured with bolts supplied.
  • Page 15 STEP 12 You wil needs panels Knightshayes 6 all of the panels from You will need to open box - this box Before you start to construct this section you need to decide if you would like it to be fitted to the Left Hand side or the Right Hand side of the centre section.
  • Page 16 STEP 13 You wil needs panels Knightshayes 8 SA35-TOP & You will need to open box - SA35-BASE from this box Insert CL1 connecting locks into the SA35-TOP and the SA35-BASE as shown below. Then attach the C2 casters to the SA35-BASE using screws 35-17D as shown below. Insert CL1 Locks into the holes as indicated SA35-TOP...
  • Page 17 STEP 14 With the KH D 35 SIDE laying on the solid flat clean surface (we recommend the floor). Attach both KH D SIDES to the KH D BASE and KH D TOP and secure by tightening the locks you have already fitted. Then fix the angle brackets to the base using screw 35-17D.
  • Page 18 STEP 15 Knightshayes 12 You will need to open box - With the Door Fascia Panel KH D FASCIA laying on the solid flat clean surface (we recommend the floor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels.
  • Page 19 STEP 16 Using Hinge H2 and Screws 30-15S attach the completed door section to the centre section you have already constructed. Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are fitted into the panels SA433-DS BACK EDGE...
  • Page 20 STEP 17 You will require Knightshayes 9 panels KH D DLEG & You will need to open box - KH D DESK from this box Screws 30-15S KH D DESK Attach the KH D DLEG to the KH D DESK using the Folding Leg Bracket (FLB1) and screws S10 OR V13 as supplied...
  • Page 21 STEP 18 You will require Knightshayes 9 the nal panel You will need to open box - SA35-DS from this Screw CB2 Bolts into all the holes marked with a red circle and indicated with an arrow below. Fit the KH D DS panel onto the CB2 bolts you have fitted and tighten the fittings to secure the shelf Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are fitted into the panels...
  • Page 22 STEP 19 Attach the complete desk to the door section using the two part hinges that are already attached to the desk and the desk shelf -- OR -- hinge H3 and screws 35-15S as supplied. Once in place ensure it is secured with bolts supplied.
  • Page 23 STEP 20 You wil needs panels Knightshayes 7 KH D 26 SIDE & You will need panels from box - KH D 35 SIDE from this box Before you start to construct this section you need to decide if you would like it to be fitted to the Left Hand side or the Right Hand side of the centre section.
  • Page 24 STEP 21 Knightshayes 8 You will need panels from box - You wil needs panels KH D 26 TOP & KH D 26 BASE from this box Insert CL1 connecting locks into the KH D 26 TOP and the KH D 26 BASE as shown below. Then attach the C2 casters to the KH D 26 BASE using screws 35-17D as shown below.
  • Page 25 STEP 22 With the KH D 35 SIDE laying on the solid flat clean surface (we recommend the floor). Attach the KH D 35 SIDE and KH D 26 SIDE to the KH D 26 BASE and KH D 26 TOP and secure by tightening the locks you have already fitted to the panels.
  • Page 26 STEP 23 Knightshayes 12 You will need panels from box - With the Door Fascia Panel KH D FASCIA laying on the solid flat clean surface (we recommend the floor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels.
  • Page 27 STEP 24 Using Hinge H2 and Screws 30-15S attach the completed door section to the centre section you have already constructed. SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are fitted into the panels SA433-DS BACK EDGE...
  • Page 28 STEP 25 Knightshayes 7 Knightshayes 8 You will need panels from boxes - You will require panels KH D 8 SIDE X 2, KH D TOP, KH D BASE Attach Castor C2 to SA8-BASE using and KH D BAR 35-17D Screws SA8-BASE SA8-TOP Screw CB2 Bolts into all...
  • Page 29 STEP 26 Using Hinge H2 and Screws 30-15S attach the completed rack section to the door section you have already constructed. SA-LSH Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are fitted into the panels SA433-DS BACK EDGE...
  • Page 30 STEP 27 Knightshayes 8 You will need to open box - Add shelves, racks and ribbon holders to the rack section you have just constructed Shown above are a ribbon dowel and holders. To fit insert SP1 shelf pegs into the two holes in each holder and then press the holder into the side of the rack you have constructed.
  • Page 31 STEP 29 Knightshayes Knightshayes You will need to open boxes - Suggested box layout A standard layout of boxes is shown below. The best way to fit the boxes is to start at the bottom of each section, insert a box then add shelf pegs (SP1) and a shelf above then continue until the section is full. Use MDF shelves and SP1 shelf pegs as supplied.
  • Page 32 store Knightshayes away Edition 2.0 The Storeaway Knightshayes 2.0 unit is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
