Summary of Contents for Storage 4 Crafts storeaway Assembly Instructions

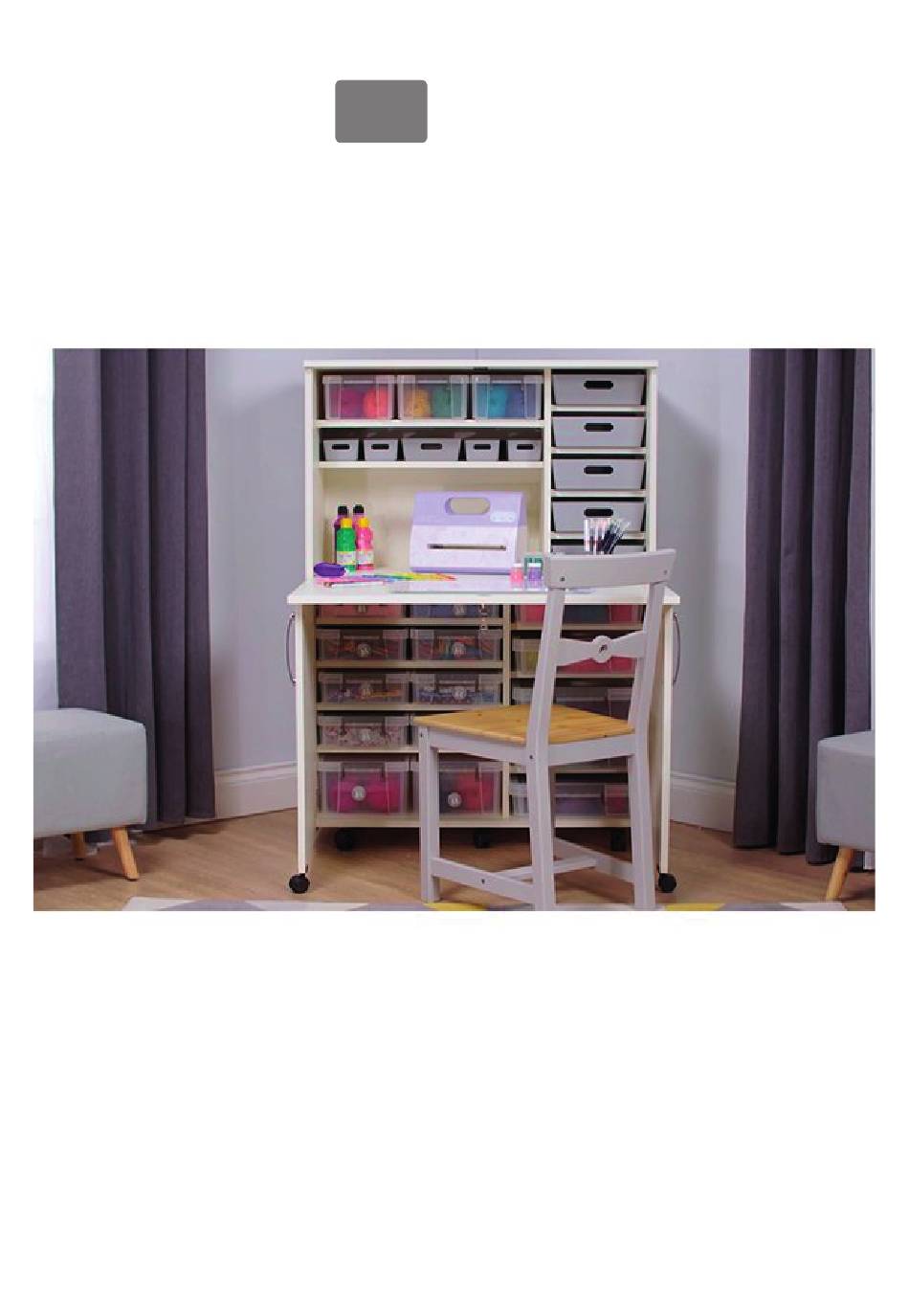

  • Page 1 store Woolacombe away Assembly Instructions revised 0221 - 1.0...
  • Page 2 It is strongly recommended to have two persons present when assembling this item. We advise that you unpack the boxes in the order shown in these instructions and follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
  • Page 3 Your hardware pack should contain the following: CODE DESCRIPTION PICTURE Connnectin g Bolt Connecting Lock Mini Connecting Bolt Shelf Peg (lock) HANDLE2 Bow Handle Handle Screw Desk Hinge Angle Bracket 35-15S Screw Size 3.5 - 15mm long Castor Black Castor Black with Brake Caster &...
  • Page 4 STEP 1 SA-WOOL-1ST You will need to open box - Insert CL1 Locks into the holes as indicated with a blue circle screw in to this point Screw CB1 Bolts into all the holes marked with a red circle Screw CB1 Bolts into all the holes marked with...
  • Page 5 STEP 2 SA-WOOL-DSKBB You will need to open box - Insert CL1 Locks into the holes as indicated with a blue circle SA-WOOL-BASE Front Edge Attach castors with brakes C3 with screws 35-17S as shown to holes marked with green circles Attach castors C2 with screws 35-17S as shown to holes marked with red circles...
  • Page 6 STEP 3 SA-WOOL-CD&SH You will need to open box - Insert CL1 Locks into the holes as indicated with a blue circle SA-WOOL-MB1...
  • Page 7 STEP 4 Attach the Base to the left hand side by slotting the panel onto the connecting bolts and tightening the connecting locks in the base. Then secure the base to the sides using the angle brackets you have already attached to the sides (using screws 35-17S). Then x the two MB1 backs and the MB2 backs to the left hand side as shown below.
  • Page 8 STEP 5 Attach the SA-WOOL-RHS to the section you have already constructed, tighten all of the connecting locks and secure the base to the right hand side with the angle brackets as in step 4.
  • Page 9 STEP 6 Attach the SA-WOOL-BCD to the base of the section you have already constructed. Screw CB1 connecting bolts into the two holes in the base and then secure with CL1 connecting locks in the SA-WOOL-BCD. It is important to ensure you have the SA-WOOL-BCD panel the correct way up. You will see a label which states TOP on this panel and this should be at the top when tted.
  • Page 10 STEP 7 SA-WOOL-DSH You will need to open box - Attach the SA-WOOL-DSH to the section you have already constructed. Screw CB1 connect- ing bolts into the two holes in underside of the SA-WOOL-DSH panel (this is the side with pre tted mini connecting locks) and then secure with CL1 connecting locks in the SA-WOOL-BCD.
  • Page 11 STEP 8 Attach the SA-WOOL-TCD to the the section you have already constructed as shown below. Screw CB1 connecting bolts into the two holes in DSH panel and then secure with CL1 connecting locks in the SA-WOOL-TCD. It is important to ensure you have the SA-WOOL-TCD panel the correct way up. You will see a label which states TOP on this panel and this should be at the top when tted.
  • Page 12 STEP 9 Attach the striking plate to the SA-WOOL-TOP using screws 30-15S. The striking plate should be tted with as per the image below. Attach the SA-WOOL-TOP to the the section you have already constructed as shown below. Screw CB1 connecting bolts into the six holes in TOP panel and then secure with CL1 connecting locks in the SA-WOOL-TCD and the left and right hand sides.
  • Page 13 STEP 10 SA-WOOL-DOORS You will need to open box - Below you will see the placement for all for all of the shelves. To t the shelves insert shelf pegs SP3 into the holes for each shelf. Ensure that the at surface of the peg is facing up.
  • Page 14 STEP 11 Take your two doors and insert caster C4 into the pre tted bracket on the bottom of each door. Fit the two handles using the screws provided. Then t your doors by inserting the metal bracket which you have already xed to each side into the receiving part which is pre tted to the door and then tighten the locking screw.
  • Page 15 STEP 12 Position you doors so that they are open no more than 90 degrees so that they will support you desk panel. Attach hinges H3 using screws 35-15S to the desk shelf (DSH). Then place the desk on top of the doors and attach the hinges to the desk panel. We send the desk with lock in the locked position.
  • Page 16: Important Safety Information

    STEP 13 .Place your storage containers into you unit as shown below. 5.8L 5.5L IMPORTANT SAFETY INFORMATION When the desk is in use always ensure it is fully supported on the doors - they must be open no more than 90 degrees. When the desk is closed always ensure the lock is fully engaged FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN DAMAGE TO YOUR UNIT AND /OR INJURY...
