Page 2
It is strongly recommended to have two persons present when assembling this item. We advise that you unpack the boxes in the order shown in these instructions and follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
Page 3
Your hardware pack should contain the following: CONNECTING FOLDING LEG BOLT (CB1) BRACKET (FLB1) TABLE X 56 HINGE WHITE CONNECTING CASTOR (C1} LOCK (CL1) X 56 CABLE MINI SCREW (CHSC-10} CONNECTING OUTLET X 16 LOCK (CB2) X 12 WASHER (W1} BOLT SHELF X 16...
Page 4
STEP 1 SA-ARL-1S You will need to open box - Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all the holes marked with a red circle screw in to this point Screw CB1 Bolts into all the holes marked with a red circle SA-ARL-M...
Page 5
STEP 2 SA-ARL- You will need to open box - From this box you will require panel MBOT Insert CL1 Locks into the holes as indicated SA-LYD MBOT BACK EDGE Attach the White Castors C1 to the base using washer W1 and Screw CHSC-10 - castor locations are marked in orange STEP 3...
Page 6
STEP 4 With the SA-ARL-M-LHS laying on the solid flat clean surface (we recommend the floor) attach the two back panels and the base. Secure by turning all of the connecting locks in the backs and the base approx one half turn. Then screw the remaining 35-17D screws into the angle brackets to secure the side to the base. SA2B SA2B BACK EDGE...
Page 7
STEP 5 With the unit still laying on the floor place the SA-ARL-M-RHS onto the top and secure all the connecting locks and angle brackets. Then carefully stand the unit onto its wheels. IT IS HIGHLY RECOMMENDED TO HAVE TWO PEOPLE TO COMPLETE THIS STEP TO AVOID INJURY OR DAMAGE TO THE PRODUCT. SA2B SA2B BACK EDGE...
Page 8
STEP 6 SA-ARL You will need to open box - DSK&MSH SA-ARL MTOP screw in to this point Screw CB1 Bolts into all the holes marked with a red circle Once you have screwed the bolts into the panel place it carefully to one side.
Page 9
STEP 7 SA2B screw in to this point Screw CB1 Bolts into all the holes marked with SA2B a red circle BACK EDGE S A - L Y D - M R H S Y D - M S A - L L H S...
Page 10
STEP 8 You will require the BCD from box SA-ARL-CD-SH. Fit the bottom centre divider as shown below using connectiing locks and the bolts you have already fitted to the base. SA2B SA2B BACK EDGE S A - L Y D - M R H S Y D - M S A - L...
Page 11
STEP 9 You will require ARL-DSH from box SA-ARL-BSH you have already opened. Fit the table hinges and connecting bolts as shown below. screw in to this point Screw CB1 Bolts into all the holes marked with a red circle OTHER SIDE OF PANEL Use screws 35-15S to attach the table hinges...
Page 12
STEP 10 Fit the desk shelf and tighten all of the connecting locks including those pre-fitted into the underside of the desk shelf. SA2B SA2B BACK EDGE S A - L Y D - M R H S Y D - M S A - L L H S...
Page 13
STEP 11 You will require SA-ARL-TCD. Fit the top centre divider as shown below using connectiing locks and the bolts you have already fitted to the desk shelf. SA2B SA2B BACK EDGE S A - L Y D - M R H S Y D - M S A - L...
Page 14
STEP 12 Fit the SA-ARL-MTOP to the unit by tightening all of the connecting locks. SA2B SA2B BACK EDGE S A - L Y D - M R H S Y D - M S A - L L H S...
Page 15
STEP 13 - You will panels from box SA-ARL DSK&MSH You will require SA500-DESK, SA-LBAR and 2 x SA-TLEG Attach Bolts BB1 with Screws 30-15S SA500-DESK SA-TLEG SA-LBAR SA-LBAR Attach the SA-LBAR to the SA-TLEGs by pushing the panels together and attaching with the dowels that are already inserted Attach Connecting Plates...
Page 16
STEP 14 Attach the complete desk to the main section using the table hinge that you have already attached to the desk desk shelf use screws 35-15S. Once in place ensure it is secured with bolts supplied. SA2B SA2B BACK EDGE S A -L Y D -M R H S...
Page 17
STEP 15 SA-ARL 2STB You will need to open both boxes - LEFT HAND DOOR SECTION RIGHT HAND DOOR SECTION SIDE SIDE SIDE SIDE Insert CL1 Locks into the holes as indicated Screw CB1 Bolts into all the holes marked with a red circle Use: - Angle Bracket AB1...
Page 18
STEP 16 Insert CL1 connecting locks into the SA-ARL-DTOP and the SA-ARL-DBOT as shown below. Then attach the C2 casters to the SA-ARL-DBOT using screws 35-17D as shown below. Repeat this process for both top and base panels. Insert CL1 Locks into the holes as indicated SA-ARL-DTOP Attach Castor C2 to...
Page 19
STEP 17 With the Side 1 laying on the solid flat clean surface (we recommend the floor). Attach the Side 1 and Side 2 to the SA-ARL-DBOT and SA-ARL-DTOP and secure by tightening the locks you have already fitted. Then fix the angle brackets to the base using screw 35-17D.
Page 20
STEP 18 With the Door Fascia Panel SA-ARL-FASCIA laying on the solid flat clean surface (we recommend the floor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels. LEFT HAND SIDE DOOR SECTION RIGHT HAND SIDE DOOR SECTION screw in to...
Page 21
STEP 19 Using Hinge H2 and Screws 30-15S attach the completed door sections to the centre section you have already constructed. Fix handles to the door sections using screws S30. SA2B SA2B BACK EDGE S A -L Y D -M R H S S A 3 Y D -M...
Page 22
STEP 20 A standard layout of boxes is shown below. The best way to fit the boxes is to start at the bottom of each section, insert a box then add shelf pegs (SP1) and a shelf above then continue until the section is full. Use shelves as indicated below and SP1 shelf pegs as supplied.
Page 24

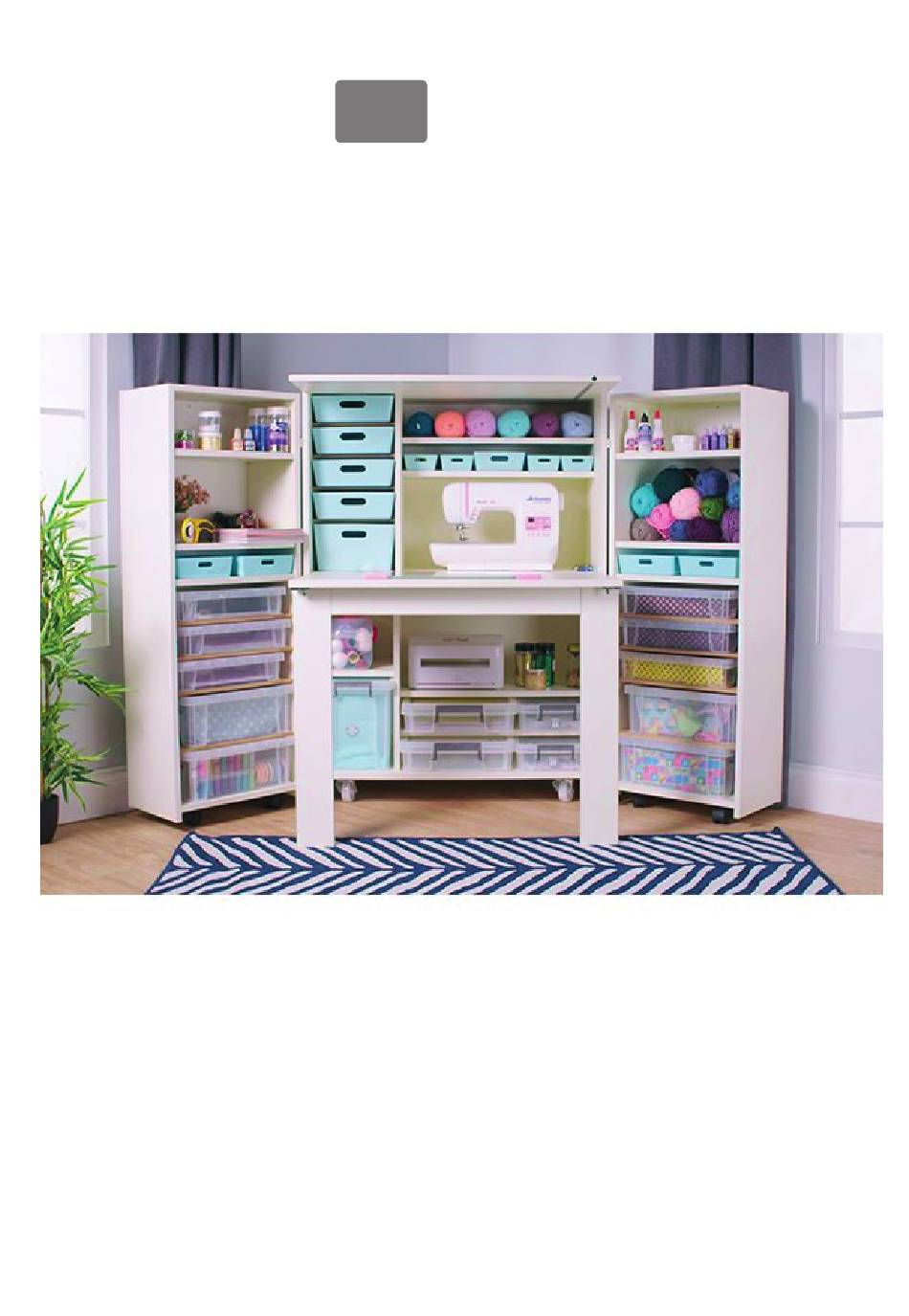

store Arlington away Allstore The Storeaway Arlington Allstore unit is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
