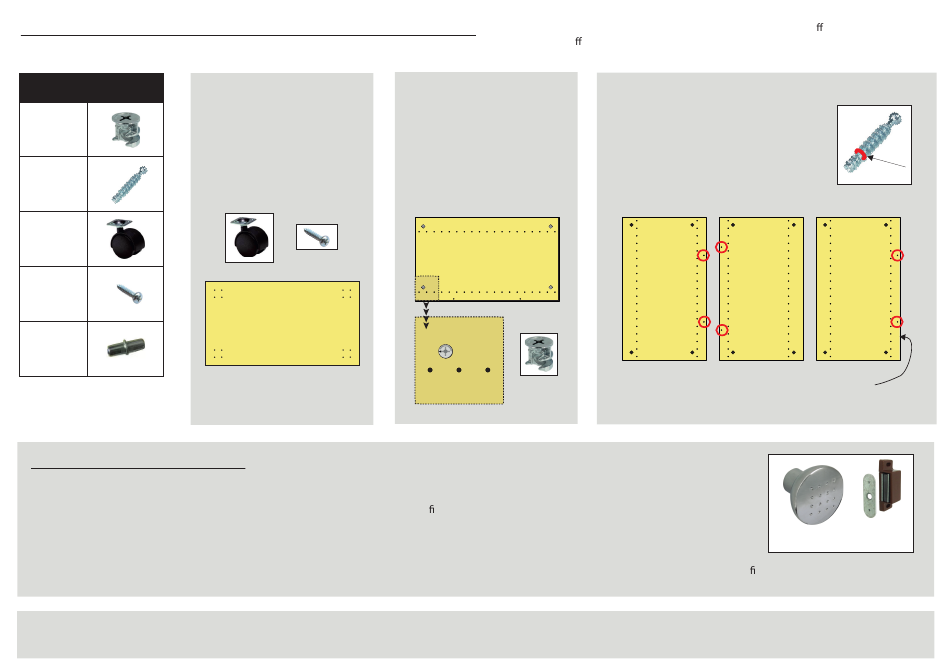

G100/30 - ASSEMBLY INSTRUCTIONS
HARDWARE
Connecting
Lock (CL1)
Connecting
Bolt (CB1)
Caster
(C2)
Caster
Screw
(35-17S)
Shelf Peg
(SP1)
Please note BEST Craft Organiser
units do not require shelf pegs
UNITS SUPPLIED WITH DOORS -
1. AT STEP 1 - Attach the magenetic catch(es) to the underside of the top using the pre drilled holes and screws provided with the catch
2. AT STEP 5 - Before tightening the connecting locks to secure the top of the unit t the door(s) to the unit by inserting the hinge pegs into
the housings in the top and bottom. You may need to lift the top slightly to do this
3. Attach a door knob to each door using the screws provided and attach the metal plate to the inside of the door to align with magnetic catch.
Please note if you have a BEST organiser unit you will either have to leave a 1 inch space at the top of the unit to allow for the magnetic catch or not t the mag
These instructions are suitable for all Really Useful units up to 100cm height and all BEST Organiser units up to 30 slot height.
STEP 1
Attach casters to the base of
your unit using caster screw
(35-17S) provided. There will
be 16 pre-drilled holes in the
base to align casters.
Base
(not to scale)
If you chose a unit complete with doors then please follow these extra steps to complete your unit.
Please note that all diagrams of panels are not to scale and depending on the
unit you have purchased certain holes may be in slightly di erent postions. This
will not a ect the method of assembly that is requried.
STEP 2
Insert connecting locks (CL1)
into the holes in the sides,
centre divider (if applicable)
and back(s) with the arrow
pointing towards to closest
edge of the panel
STEP 3
Screw connecting bolts (CB1) into the
holes in the top, bottom, sides and
centre dividers (if applicable) as
indicated below. The thread at the
base of the bolt should be fully
screwed into the holes
Left
Right
Hand
Hand
Side
Side
screw into
this point
Centre
Divider
Also screw connecting bolts
into reverse of the
centre divider
Magnetic
Door Knob
Catch
netic catch.
