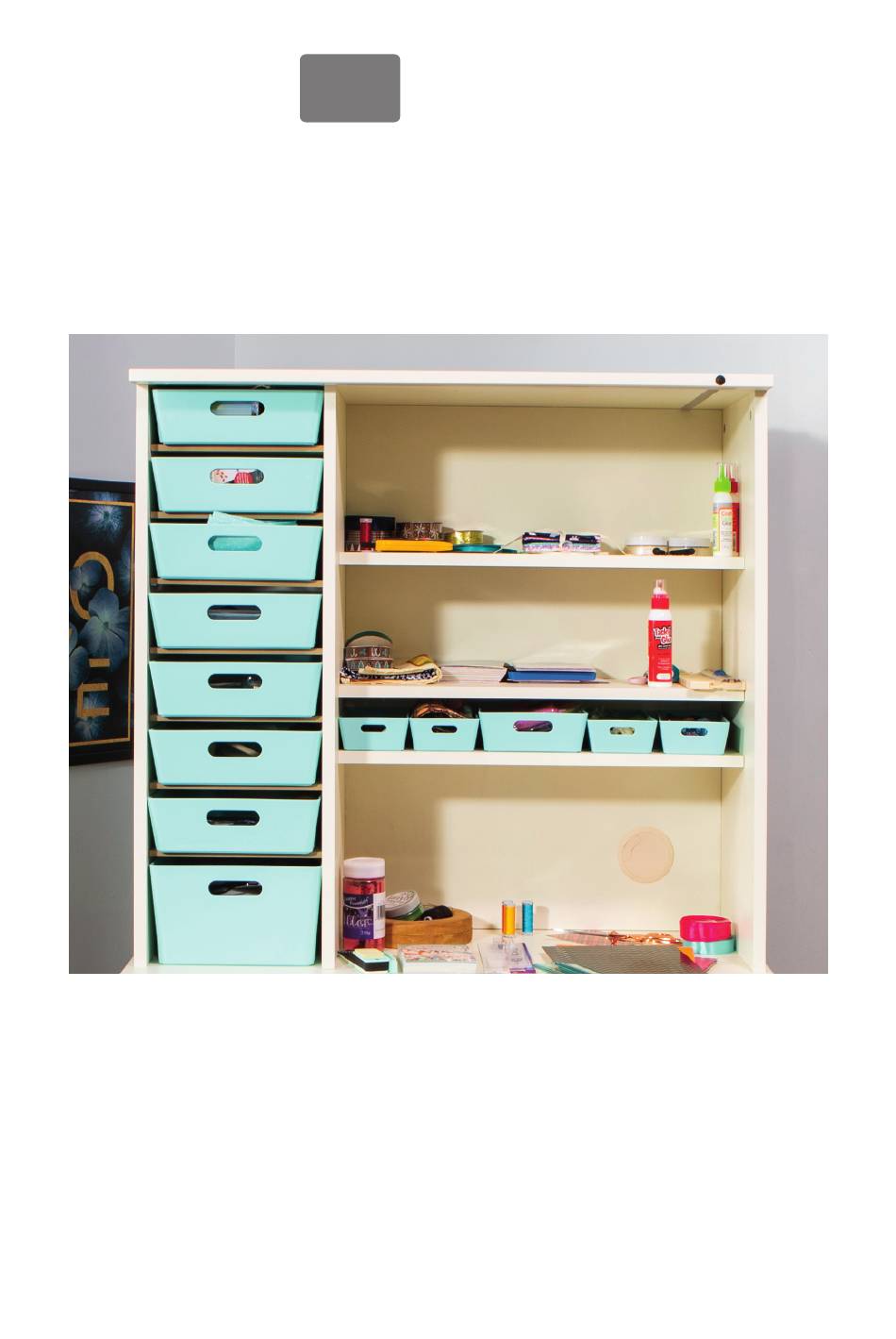

- Page 1 store Studio away Hutch Assembly Instructions...
- Page 2 Thank you for purchasing a Fold Away Petite - fold Salcombe Edtion Hutch. If you have any questions away regarding the assembly of this item please contact us on 0800 048 8606 (UK Customer Servic- Salcombe Edition es). Outside of the UK please contact your local Hutch distributor.
- Page 3 STEP 1 Screw connecting bolts (CB1) as shown on the panel below. screw in to this point QTY 1 STEP 2 Insert connecting locks (CL1) as shown on the panels below Back Back QTY 1 (with cable outlet) QTY 1 Studio Back QTY 1 STEP 3...
- Page 4 STEP 4 Screw connecting bolts (CB1) as shown on the panel below. Then insert connecting locks (CL1) as shown. Right Side QTY 1 screw in to this point Centre Divider QTY 1 Centre Divider (reverse) QTY 1...
- Page 5 STEP 5 Attach the left side, studio back, centre divider, two backs and right side together as shown below. Once slotted together ensure you tighten all of the connecting locks. Back (locks on reverse) (locks on reverse) (locks on reverse) Back Back Back...
- Page 6 STEP 6 Attach the section you have already constructed and top together as shown below. Once slotted together ensure you tighten the connecting locks. Back (locks on reverse) Back (locks on reverse) (with cable outlet)
- Page 7 STEP 7 Insert shelf pegs and studio shelves to the left section as shown to t the studio trays. Use shelf pegs to t the adjustable shelves to the right hand section to suit your requirements Sml Shelf QTY 3...
- Page 8 store Studio away Hutch The Studio Huitch is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
