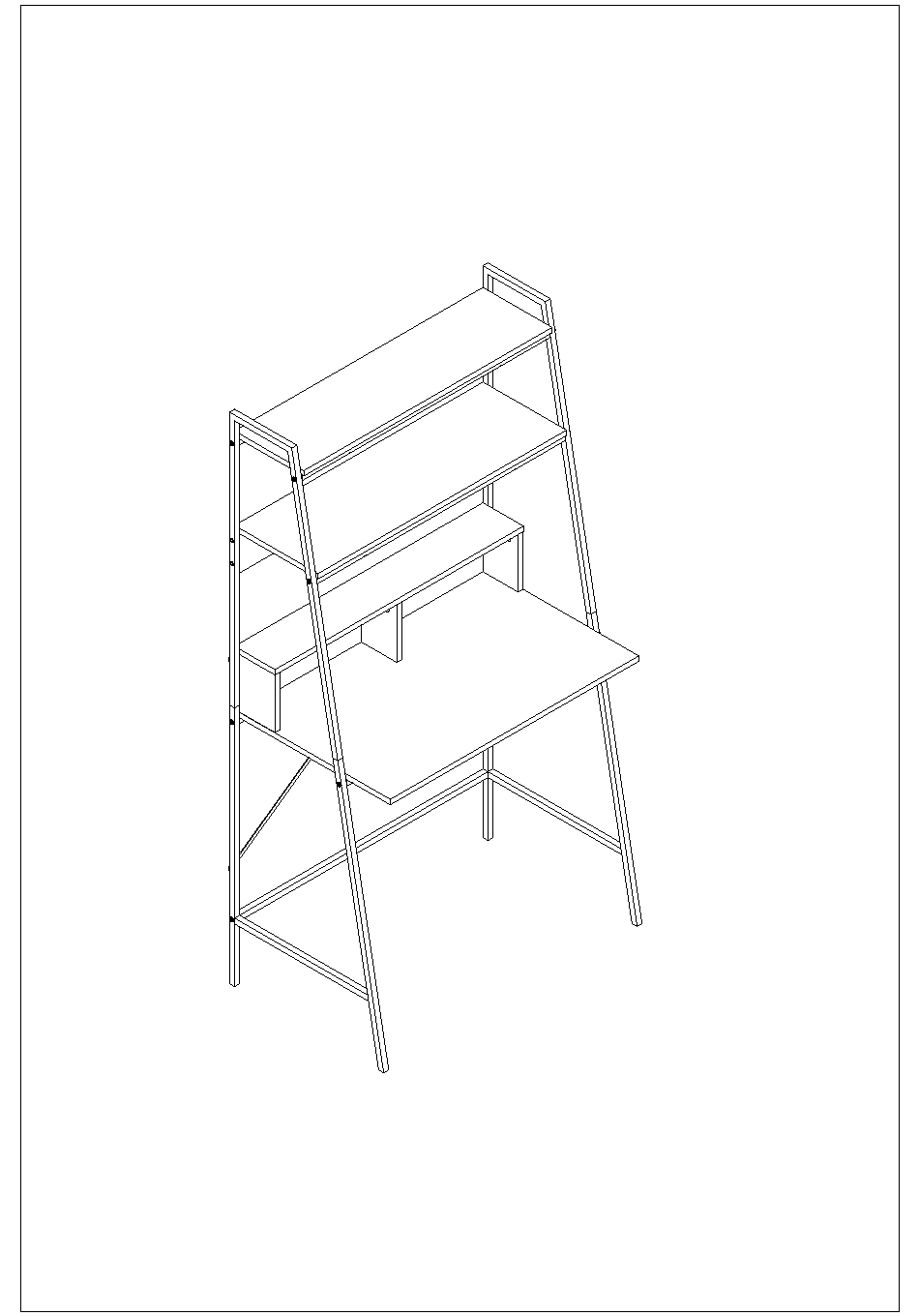

- Page 1 Desk ASSEMBLY INSTRUCTION Date last updated: 7-22-2021...
- Page 2 HARDWARE LIST M6×35mm M7×38mm Ø15×12mm Ø7.8×30mm M6×35mm M6×25mm M6×12mm PARTS LIST 1 - 2pcs 2 - 2pcs 4 - 1pc 3 - 5pcs 5 - 2pcs 6 - 1pc 7 - 1pc 8 - 1pc 9 - 1pc 10 - 2pcs 11 - 1pc 12 - 1pc 13 - 1pc...
- Page 3 ASSEMBLY STEPS Fix part 1 to part 2 using screw (G), as shown. Fix part 3 and 4 to assembled part 1 and 2 using screw (E), as shown. Adjust foot (M) lock to sole of foot as shown. Adjust foot height to balance M6×12mm M6×35mm...
- Page 4 ASSEMBLY STEPS Insert quickfit screws (A) and wooden dowels (D) to Insert wooden dowels (D) to part 12. part 9. Insert cam locks (B) to parts 11. Insert cam locks (B) to parts 10 and 12. Fit part 11 to part 9. Turn cam locks clockwise to tighten. Fit parts 10 and 12 to part 9.
