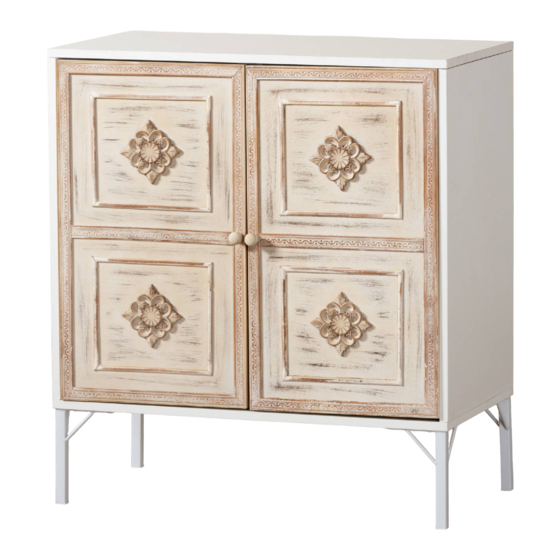

- Page 1 Cabinet Date last updated:4-02-2022...
- Page 2 11pcs 11pcs 8pcs 4pcs 34pcs 4pcs 16pcs 2pcs 2pcs 8pcs 4pcs 2pcs 2pcs 2pcs...
- Page 4 Fix hinges (G) to doors 8 using screws (F), as shown. Fix handles to doors 8 using screws (I), as shown. Insert quickfit screws (A) into part 1. Insert cam locks (B) into parts 5 and 6, as shown. Turn cam locks clockwise to tighten.
- Page 5 Insert quickfit screws (A) into part 2. Insert cam locks (B) into parts 5 and 6, as shown. Turn cam locks clockwise to tighten. Insert part 11 into grooves of parts 1, 2 and 6, as shown.
- Page 6 Insert wooden dowels (C) to part 4 and attach to assembled unit using screws (D), as shown. Insert part 7 into grooves of parts 1, 2 and 6, as shown.
- Page 7 Fix wall brackets (N) to part 3 using screws (O), as shown. Fix hardware (E) to part 3 using screws (F), as shown. Insert quickfit screws (A) into part 3. Insert cam locks (B) and wooden dowels (C) into parts 1,2 and 5, as shown. Fit part 3 to assembled unit, as shown.Turn cam locks clockwise to tighten.
- Page 8 Fix legs 10 to part 4 using screws (H), as shown. Fix corner brackets (K) to parts 7 and 11 using screws (F), as shown. Hx16 Fix doors 8 to assembled unit using hings (G) and screws (F),as shown. Fx16...
- Page 9 Fit shelf supports (L) into desired position in the assembled unit, as shown. Place shelf 9 on top of shelf supports, as shown.
- Page 10 For extra stability, it is recommended that you fix your cabinet to the wall using hardwares (J and P), as shown. Screws (J) are fixed through wall brackets (N) and into the wall plugs (P). Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over.
