Summary of Contents for Baxton Studio Cardea LCF2024

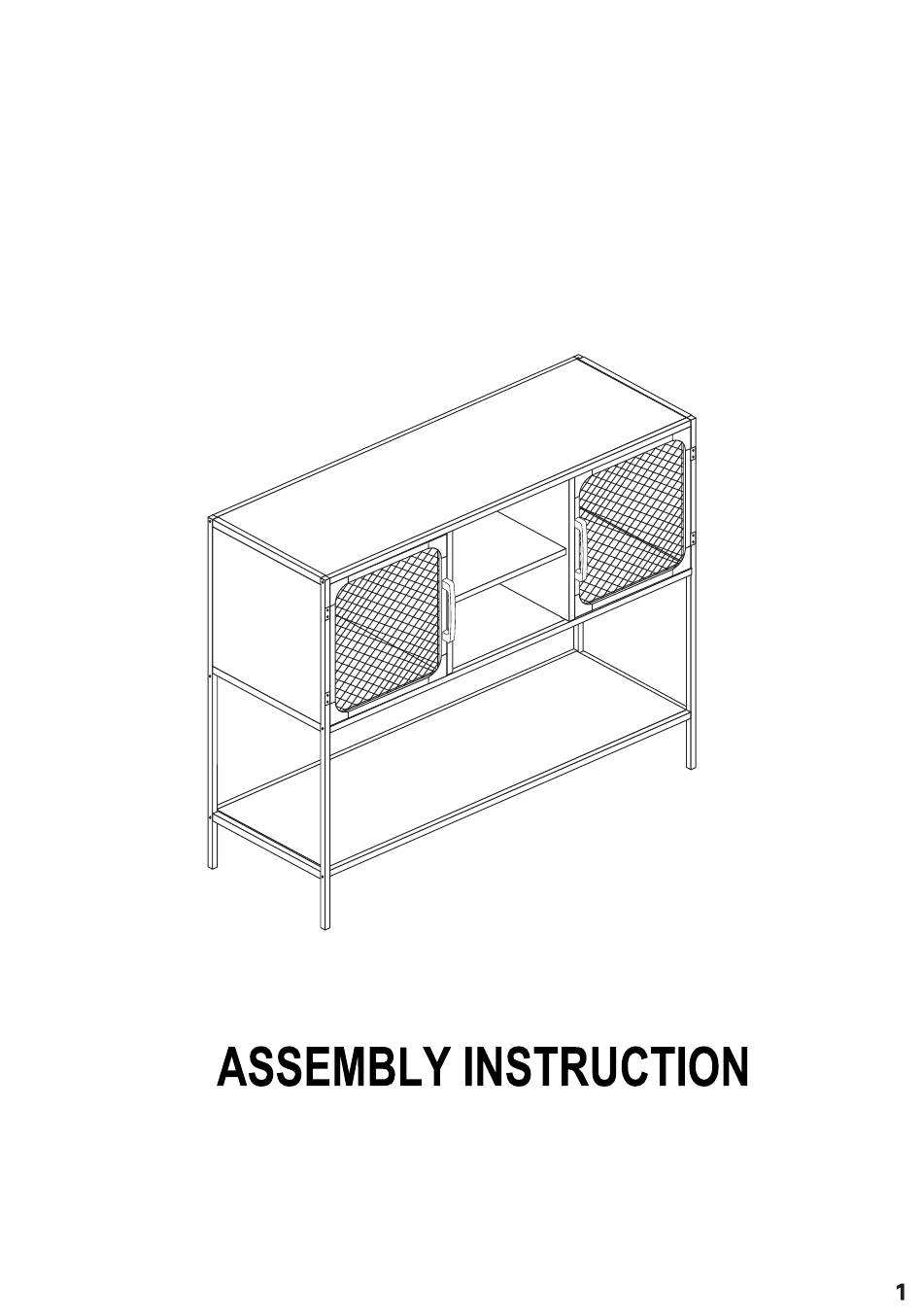

- Page 1 Sideboard Date last updated:07-25-2022...
- Page 2 12 PCS 12 PCS 12 PCS 8 PCS 14 PCS 6x14mm 2 PCS 4 PCS 12 PCS 4 PCS 2 PCS 4x16mm 6 PCS 2 PCS 1 PC 4 PCS 2 PCS 3x14mm 8 PCS 4 PCS...
- Page 3 Fix magnetic door catches (O) to parts 3 and 4 using screws (N), as shown. Insert quickfit screws (A) into parts 3 and 4, as shown.
- Page 4 Insert cam locks (B) and wooden dowels (H) into part 5. Fit parts 3 and 4 to part 5, as shown. Turn cam lock clockwise to tighten. Fix wall brackets (J) to part 6 using screws (E), as shown.Insert quickfit screws (A) into part 6, as shown.
- Page 5 Fix part 7 to parts 3 and 4 using wooden dowels (H) and screws (K), as shown. Fix part 2 to parts 7 and 9 using screws (C), as shown.
- Page 6 Slide part 10 into grooves between parts 2 and 7, as shown. Fix part 1 to assembled unit using screws (C), as shown.
- Page 7 Secure parts 7 and 9 to parts 1 and 2 using screws (E), as shown. Insert cam locks (B) and wooden dowels (H) into parts 3 and 4, as shown. Fit part 6 to assembled unit. Turn cam lock clockwise to tighten. Secure part 6 to parts 1 and 2 using screws (E), as shown.
- Page 8 STEP 11. Fix corner brackets (Q) to part 10 using screws (I), as shown. Secure parts 1 and 2 to assembled unit using screws (C) and allen key, as shown. Fix handles (F) to doors 8 using screws (G), as shown.
- Page 9 STEP 13. Fix doors 8 to assembled unit using screws (D), as shown. STEP 14. Fit shelf supporters (P) to the inside of sideboard, as shown.
- Page 10 STEP 15. Place parts 11 on shelf supporters, as shown. back front STEP 16. For extra stability, it is recommended that you fix your sideboard to the wall using hardwares (K and L), as shown. Screw (K) are fixed through wall brackets and into the wall plugs (L). Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over.
