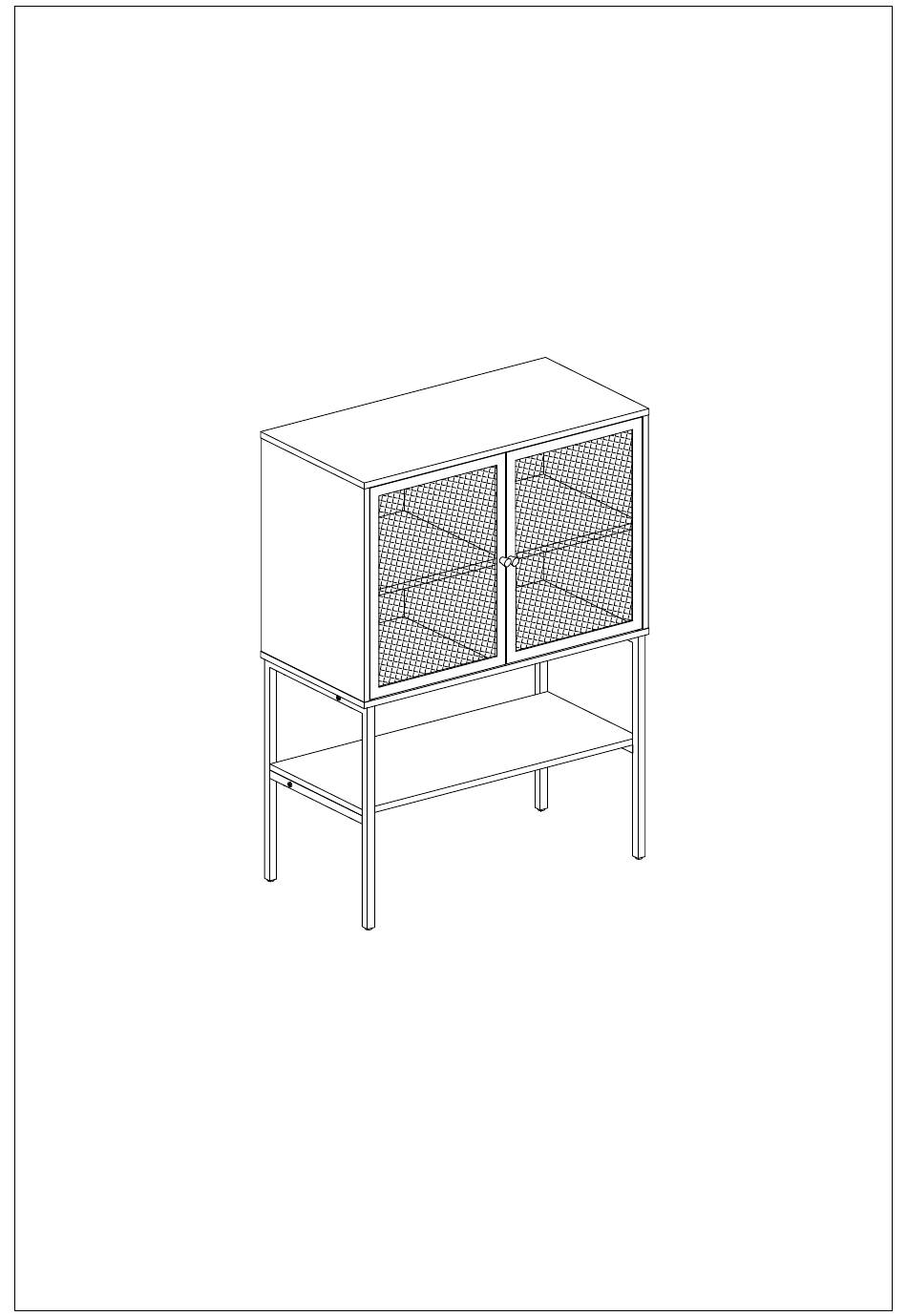

- Page 1 SIDEBOARD ASSEMBLY INSTRUCTION Date last updated: 6-21-2022...
-
Page 2: Hardware List
HARDWARE LIST M6×35mm 7×38mm Ø15×12mm Ø7.8×30mm M6×40mm M6×30mm M3.5×14mm M3×14mm PARTS LIST 1 - 1pc 2 - 1pc 3 - 1pc 4 - 1pc 5 - 2pcs 6 - 1pc 7 - 2pcs 8 - 1pc 9 - 2pcs 10 - 2pcs 11 - 1pc 12 - 1pc... -
Page 3: Assembly Steps
ASSEMBLY STEPS Insert screws (H) into handles (G) and doors 9, colockwise to tighten, as shown. Insert bearing (K) into doors 9, as shown. M4×20mm G × 2 K × 4 × Fix hardwares (I) to part 1 using screws (J). Insert quickfit screws (A) into part 1, as shown. - Page 4 Insert cam locks (B) and wooden dowels (C) into parts 4, 6 and 3. Fit parts 4, 6 and 3 to part 1. Turn cam lock clockwise to tighten, as shown. Slide parts 5 into grooves between parts 4, 6, 3 and 1, as shown. Ø15×12mm B ×...
- Page 5 Press down bearing (K) and fit doors 9 into assembled unit, as shown. Fix corner brackets (O) to parts 5 using screws (P), as shown. M3×14mm × ×...
- Page 6 Fix parts 10 to parts 11 and 12 using screws (E), as shown. Insert foot nails (M) into legs 11 and 12, as shown. M6×40mm Adjust foot height to balance E × 4 M × Fix assembled unit and part 8 to metal legs using screw (F), as shown. M6×30mm ×...
- Page 7 Fit shelf supporters (N) to the inside of parts 3 , 4 and 6. Slide parts 7 on shelf supporters, as shown. Step 9-1 Step 9-2 N × 8 For extra stability, it is recommended that you fix your sideboard to the wall using wall strap (T) and hardwares (Q, R and S), as shown.
