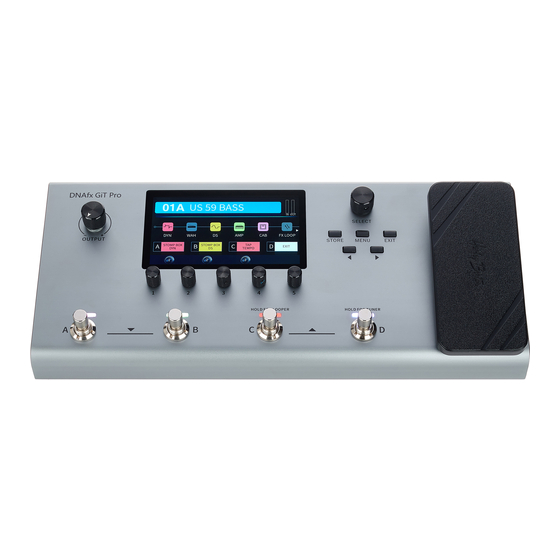

DNAfx GiT Pro multi effects unit
Safety instructions
Intended use
This device is intended to be used for sound processing of signals from musical ins-
truments with electromagnetic pickups. Any other use or use under other operating
conditions is considered to be improper and may result in personal injury or property
damage. No liability will be assumed for damages resulting from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are
not within reach of babies and young children. Choking hazard! Ensure
that children do not detach any small parts (e.g. knobs or the like) from the
unit. They could swallow the pieces and choke! Never let unattended chil-
dren use electrical devices.
Features
• Professional Amp Modelings
• IR cabinet simulations
• 153 guitar effects
• Digital and analogue effects, even in stereo
• 3 footswitch control modes
• Stereo FX Loop for external effects
• 80 drum rhythms and 10 metronome rhythms
• Looper with 52 seconds recording time
Operating elements and connections
Top side
#
ö
OUTPUT
,
+
1
2
3
HOLD FOR LOOPER
A
B
C
Rear panel
AMP CTRL
PEDAL 2
INPUT
SEND
RETURN L
RETURN R
OUTPUT L
AUX IN
-
. / 0 1
2
3
12 AUX IN
1/8" jack socket (stereo) for connecting an audio device
(e.g. MP3 player or smartphone)
13 AMP CTRL
1/4" jack socket (mono) for connecting a footswitch or amplifier
14 PEDAL 2
1/4" jack socket (mono) for connecting an external Expression
Pedal
15 INPUT
1/4" jack socket for connecting a guitar or output of other
pedals
16 SEND
1/4" jack socket (mono) for effect looper
17 RETURN L
1/4" jack socket (mono) for effect looper return
RETURN R
18 OUTPUT L
1/4" jack sockets (mono), unbalanced
OUTPUT R
$
%
&'
(
1
2
PEDAL
SELECT
STORE
MENU
EXIT
4
5
HOLD FOR TUNER
D
OUTPUT L
OUTPUT R
MIDI IN/
MIDI OUT
OUTPUT R
USB
LIFT
GND
4
5
6
7 8 9 :
Quick Start Guide
This quick start guide contains important information on the safe operation of the
product. Read and follow the safety advice and instructions given. Retain the quick
start guide for future reference. If you pass the product on to others please include
this quick start guide.
Where to use the product
Never use the product
• in direct sunlight
• in conditions of extreme temperature or humidity
• in extremely dusty or dirty areas
General handling
• To prevent damage, never use force when operating the switches and controls.
• Never immerse the appliance in water. Just wipe it with a clean dry cloth. Do not use
liquid cleaners such as benzene, thinners or flammable cleaning agents.
• 256 presets
• Native Expression Pedal and support for external Expression Pedal
• AMP control for channel switching
• USB connectivity for connecting a PC or MAC
• Playback of files from smartphones or other audio devices
• Audio interface for recording and playback via USB
• Editor software
1
OUTPUT
Rotary volume control
2
Display
)
3
STORE
Button to enter save menu
4
SELECT
Rotary control to switch between preset patches, to select a
module in the effects chain, or to navigate in the settings menu
5
MENU
Button to enter the system settings
6
EXIT
Button to quit the current page and return to home display
*
7
/
Buttons to navigate in the display parameters and the current
effect modules
8
PEDAL / 1 / 2
Expression Pedal indicator LEDs
9
Expression Pedal
10 A / B / C / D
Footswitches to switch between preset patches, preset banks
and other control functions
11 1 ... 5
Rotary controls to adjust settings/parameters in the menus
DC IN
9V 1A
19
Headphone socket (1/8" jack socket, stereo)
20 LFT / GND
Ground/Lift switch for XLR output, balanced
21 OUTPUT L
XLR output socket, 3-pin, mono, balanced
OUTPUT R
22 MIDI IN
MIDI socket, 5-pin
MIDI OUT
23 USB
USB port type B for a PC or MAC or audio device
24 DC IN
Connection socket for external power adapter
25
Main switch
EN
