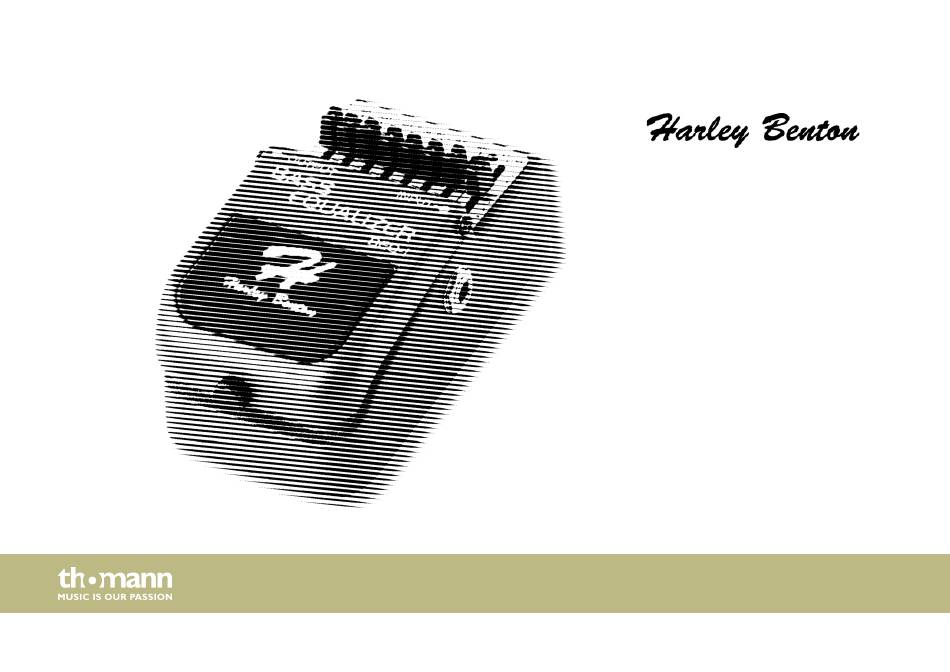

  • Page 1 BEQ-1 effects pedal user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 23.07.2015, ID: 114562...
  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................9 Instructions for use..........................10 Components and functions........................ 11 Technical specifications........................15 Protecting the environment......................16 BEQ-1...
  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 General notes Warning signs Type of danger Warning – danger zone. BEQ-1...
  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is con‐ sidered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 7 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 8 Safety instructions NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.
  • Page 9: Features

    Features Features Floor effects pedal with 7-band graphic EQ, designed for bass Voltage supply by 9 V battery or power adaptor Robust metal housing BEQ-1...
  • Page 10: Instructions For Use

    Instructions for use Instructions for use Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 11: Components And Functions

    Components and functions Components and functions 1 Connector for an optional 9 V power adaptor. If a 9 V power adaptor is used, the battery is automatically disconnected from the circuitry. 2 The LED ‘CHECK’ lights up when the effects pedal is active. If the LED is not lit or just glowing low during operation you have to replace the battery.
  • Page 12 Components and functions 7 The foot switch toggles the effect on / off. 8 OUTPUT Output socket. Connect the output with a standard instrument cable to another effects pedal or an amp. Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections.
  • Page 13 Components and functions Changing the battery 6 Knurled-head screw to open the battery compartment 7 Foot switch 9 Spring suspension 10 Coil spring BEQ-1...
  • Page 14 Components and functions 11 Battery cable 12 Battery clip for 9 V battery 13 9 V battery 14 Feed hole 15 Battery compartment Before installing or replacing the battery disconnect the power adaptor from the wall outlet. Loosen the knurled-head screw (6) on the pedal to open it. Take the 9 V battery out of the battery compartment (15) and pull off the battery clip (12) from the empty battery.
  • Page 15: Technical Specifications

    Technical specifications Technical specifications Input impedance 1 MΩ Output impedance 1 kΩ Current draw 22 mA Operating voltage supply 9 V battery (6F22) / 9 V power adaptor Dimensions (W × H × D) 72 mm × 128 mm × 60 mm Weight 375 g BEQ-1...
  • Page 16: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 17 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE). Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
  • Page 18 Notes effects pedal...
