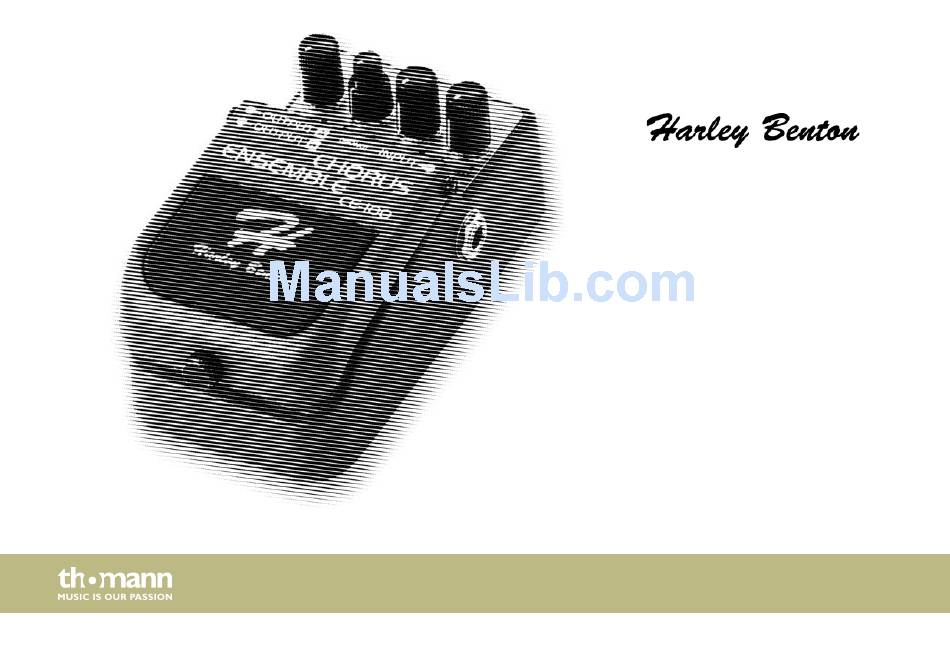

- Page 1 CE-100 effects pedal user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 22.07.2015, ID: 114548...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................9 Instructions for use..........................10 Components and functions........................ 11 Connections............................... 17 Technical specifications........................19 Protecting the environment......................20 CE-100... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 General notes Warning signs Type of danger Warning – danger zone. CE-100...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is con‐ sidered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 Never let children unattended use electrical devices. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. CE-100...
- Page 8 Safety instructions NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.
-
Page 9: Features
Features Features The CE-100 effects pedal processes the instrument signal with a chorus effect offers a 2-band filter for variable chorus effects provides a stereo output for broad stereo effects operates on 9 V battery or power adapter (both not supplied). -
Page 10: Instructions For Use
Instructions for use Instructions for use Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: Components And Functions
Components and functions Components and functions Input, outputs, controls, indi‐ cator CE-100... - Page 12 Components and functions 1 Connector for an optional 9 V power adaptor (not supplied). Using a power adaptor leaves you independent of the battery lifetime. 2 The LED ‘CHECK’ lights up when the effects pedal is active. If the LED is not lit or just glowing low during operation the battery is depleted and needs to be replaced.
- Page 13 10 Turn the ‘E.LEVEL’ control to adjust the output level of the effects signal. 11 Turn the ‘HIGH FILTER’ control to adjust the high frequencies of the chorus sound. 12 Turn the ‘LOW FILTER’ control to adjust the low frequencies of the chorus sound CE-100...
- Page 14 Components and functions Changing the battery 7 Knurled-head screw to open the battery compartment 13 Battery compartment cover 14 Spring suspension effects pedal...
- Page 15 (20). Make sure that the battery cable (16) is not trapped in the coil spring (15) or between battery compartment cover (13) and housing. Press the coil spring (15) into the spring suspension (14) and close the battery compart‐ ment (13). CE-100...
- Page 16 Components and functions Insert the knurled-head screw (7) through the feed hole (19) and tighten the screw securely. effects pedal...
-
Page 17: Connections
Connections Connections CE-100... - Page 18 Connections Please note the following: If you connect an instrument cable to the input socket, the chorus pedal is automatically switched on. Thus, always disconnect the cable from the pedal when it is not in use. To avoid noise interference, set the amplifier volume to minimum, before inserting the instrument cable into the input socket.
-
Page 19: Technical Specifications
Operating voltage supply 9 V battery (6F22) / 9 V power adaptor Current draw 28 mA Dimensions (W × D × H) 72 mm × 128 mm × 60 mm Weight 412 g (without battery) Option 9 V power adaptor CE-100... -
Page 20: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 21 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CE-100...
- Page 22 Notes effects pedal...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
