- Page 1 D-SEED effects pedal user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 11.04.2014, ID: 318119...
-
Page 3: Table Of Contents
1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 11 Instructions for use..........................12 Connections and controls........................13 Operation..............................17 Technical data............................19 Plug and connection assignment....................20 Protecting the environment......................21 D-SEED... -
Page 4: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. D-SEED...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is con‐ sidered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Never let children unattended use electrical devices. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. D-SEED...
- Page 10 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
-
Page 11: Features

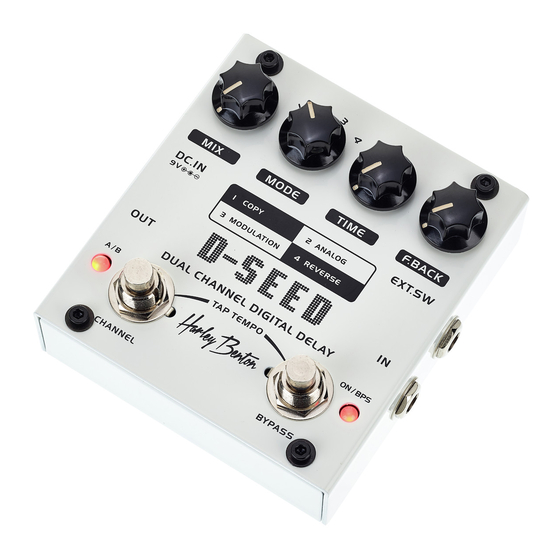

Features Features TAP TEMPO function Dual channel presets Delay up to 6 seconds Sound settings: COPY, ANALOG, MODULATION, REVERSE D-SEED... -
Page 12: Instructions For Use
Instructions for use Instructions for use Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 13: Connections And Controls
Connections and controls Connections and controls D-SEED... - Page 14 Connections and controls 1 [MIX] Rotary control to adjust the effect volume of the overall volume. 2 [MODE] Rotary control to select the sound setting. 3 [TIME] Rotary control to adjust the delay. 4 [f.BACK] Rotary control to adjust the feedback. 5 [EXT.SW] Connection jack for external foot switch to switch between channel A and B (not included).
- Page 15 Output jack. Connect this output via a standard instrument cable to the amplifier input. 12 [DC.IN] Socket for a 9-volt AC adapter (not included) to power supply. Before connecting check for correct polarity, the nega‐ tive pole must lie inside the plug. D-SEED...
- Page 16 Connections and controls Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. effects pedal...
-
Page 17: Operation
[4 REVERSE]: Psychedelic effect by phase reversal of the delay signal. Presets The device offers the possibility to store two presets with different settings. Press the [CHANNEL] foot switch to switch between the presets (LED off = preset A, LED on = preset B). D-SEED... - Page 18 Operation Adjusting and storing effect set‐ Use the rotary controls [MIX], [TIME] and [f.BACK] to adjust the effects volume of the overall tings volume, the delay time and the feedback rate, and the [MODE] rotary control to adjust the desired sound setting. When you change one or more settings, the [A/B] channel display is flashing red to indicate that the settings can be stored to the currently active preset.
-
Page 19: Technical Data
Voltage supply AC adapter, 9 V (negative pole inside) Maximum delay time Dimensions (L × W × H) 105 mm × 97 mm × 48 mm (4.1 in. × 3.8 in. × 1.9 in.) Weight 500 g (1.1 lbs) D-SEED... -
Page 20: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 21: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. D-SEED... - Page 22 Notes effects pedal...
- Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
